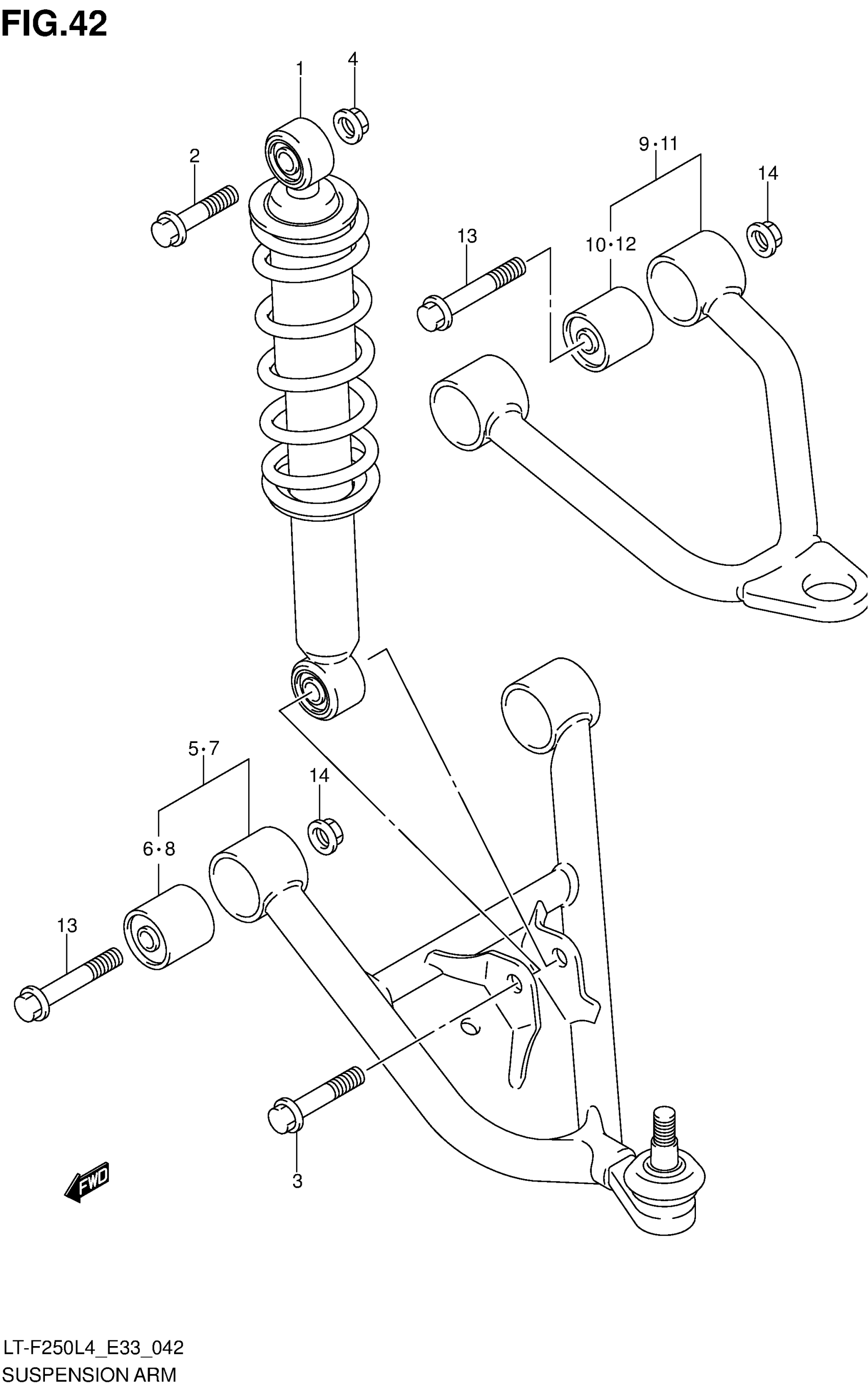

Suzuki LT-F250L4 (2014) SUSPENSION ARM Diagram

#

Description
Price

1

ABSORBER ASSY, FRONT SHOCK (BLACK)

52100-05G10-019

Unavailable

2

BOLT (10X37) | UPPER

09103-10019

$2.71

3

BOLT (10X48) | LOWER

09103-10126

$4.07

4

NUT

09159-10115

$3.21

5

ARM SET, SUSPENSION LOWER RH

52410-05831

$368.10

6

BUSH

09319-10055

$19.25

7

ARM SET, SUSPENSION LOWER LH

52420-05831

$375.03

8

BUSH

09319-10055

$19.25

9

ARM SET, SUSPENSION UPPER RH

52430-05811

Unavailable

10

BUSH

09319-10055

$19.25

11

ARM SET, SUSPENSION UPPER LH

52440-05811

Unavailable

12

BUSH

09319-10055

$19.25

13

BOLT (10X60)

09103-10301

$6.52

14

NUT

09159-10115

$3.21
