2014 Suzuki LT-F250L4 Pilot Lamp Diagram

← All diagrams

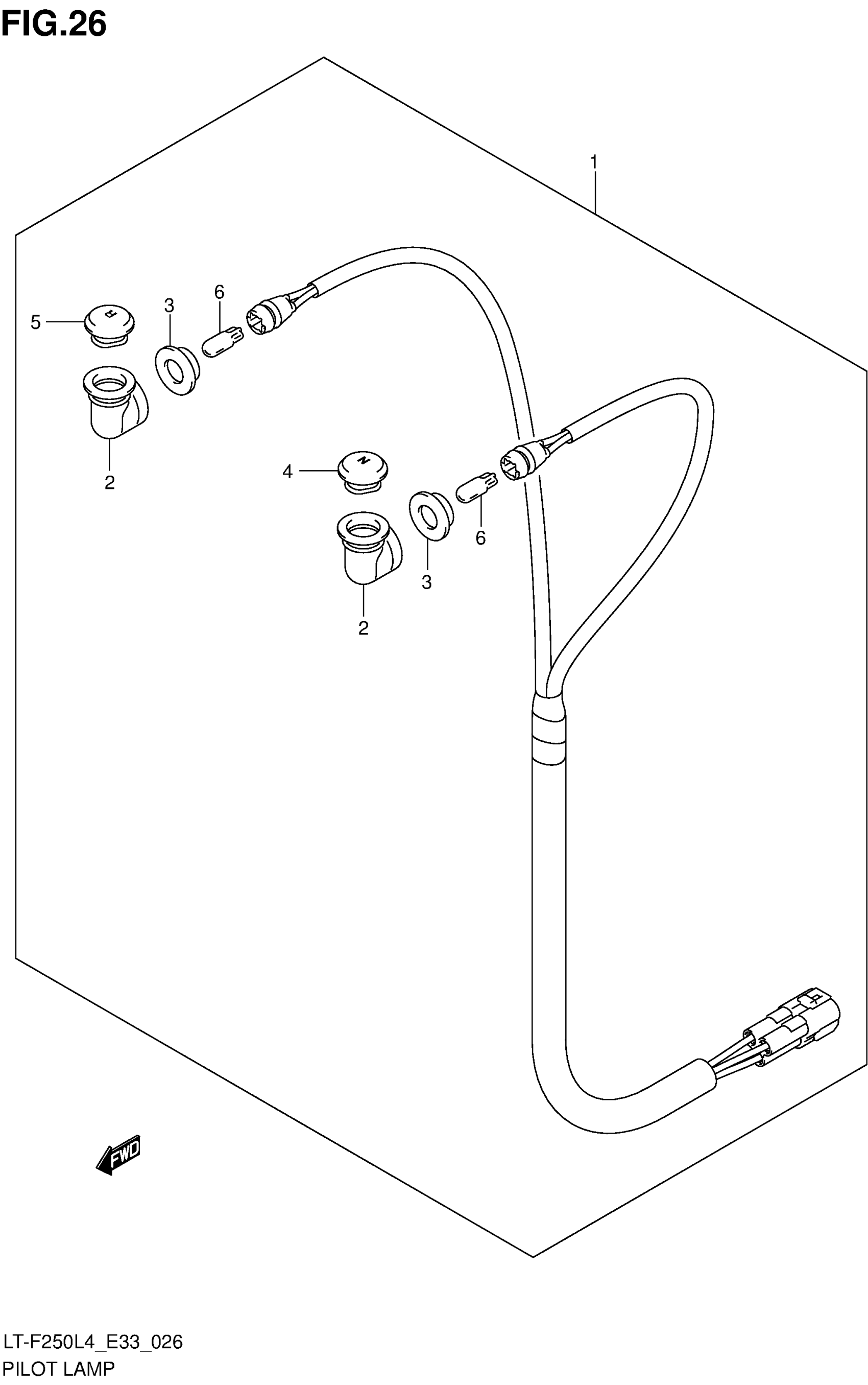

Find the part on the Pilot Lamp diagram for your 2014 Suzuki LT-F250L4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2014 Suzuki LT-F250L4 Pilot Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$81.55

In stock

2

SOCKET

34173-26F00

2

$4.66

In stock

3

RING

34178-26F00

2

$4.26

In stock

4

LENS, NEUTRAL (GREEN)

36321-05G00

1

$8.81

In stock

5

LENS, REVERSE (RED)

36329-05G00

1

$10.97

In stock

6

BULB (12V,3.4W,T6.5)

09471-12103

2

$3.71

In stock
