2014 Suzuki LT-F250L4 Headlamp Diagram

← All diagrams

Find the part on the Headlamp diagram for your 2014 Suzuki LT-F250L4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

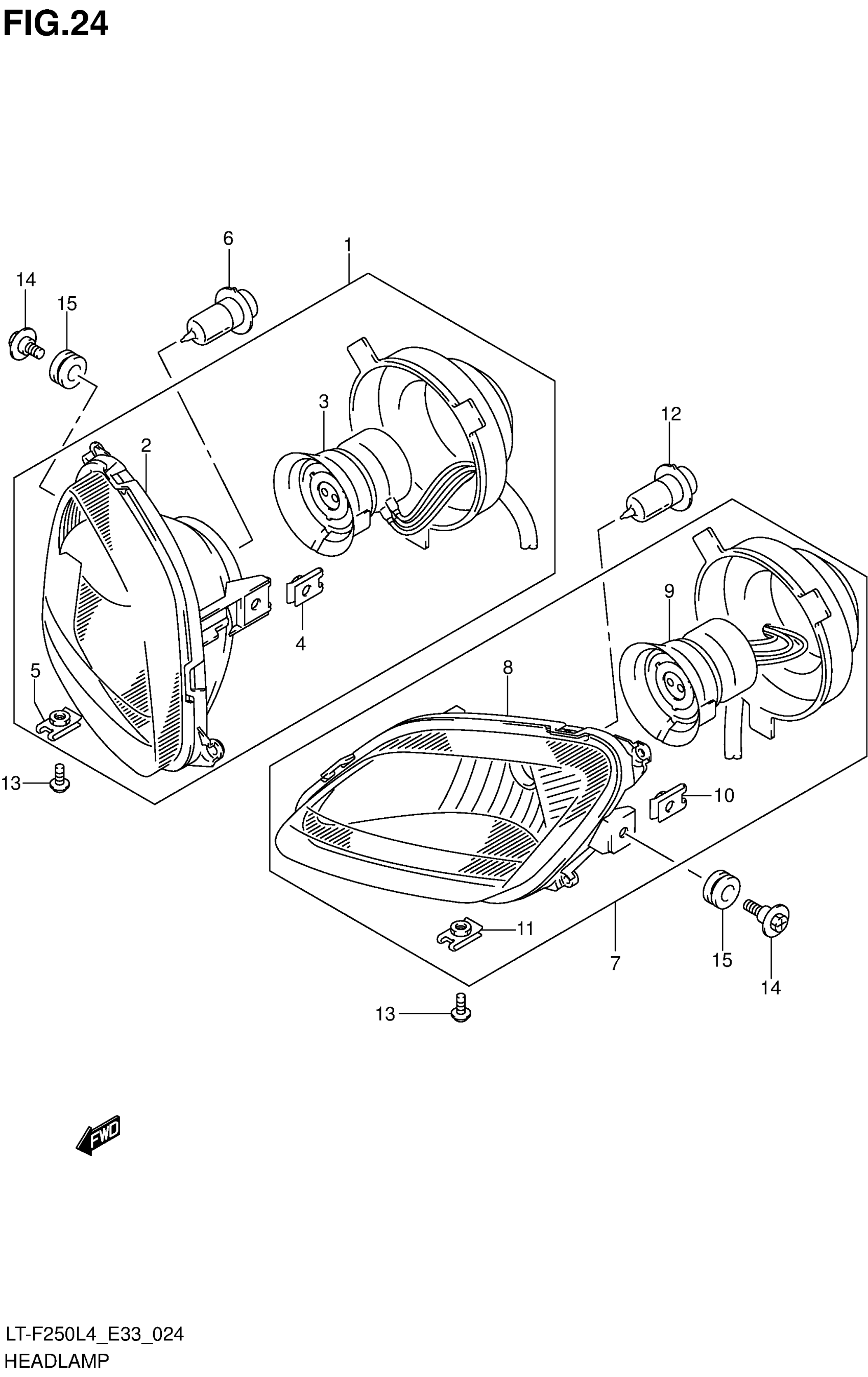

2014 Suzuki LT-F250L4 Headlamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLAMP ASSY, RH

35100-05G00-999

1
Out of stock

2

UNIT, RH

35121-03G00

1
Out of stock

3

CORD ASSY, RH

35171-05GR0

1
Out of stock

4

NUT (M6)

35157-05G90

2
Out of stock

5

NUT (M5)

35157-05G50

1
Out of stock

6

BULB (12V,30/30W) This part replaces 09471-12097.

09471-12093

1
Out of stock

7

HEADLAMP ASSY, LH

35300-05G00-999

1
Out of stock

8

UNIT, LH

35321-03G00

1
Out of stock

9

CORD ASSY, LH

35171-05GL0

1
Out of stock

10

NUT (M6)

35157-05G90

2
Out of stock

11

NUT (M5)

35157-05G50

1
Out of stock

12

BULB (12V,30/30W) This part replaces 09471-12097.

09471-12093

1
Out of stock

13

SCREW (5X16)

09136-05046

2
Out of stock

14

SCREW (6X22.5)

09139-06118

4
Out of stock

15

CUSHION

09320-10501

4
Out of stock
