2012 Suzuki LT-F250L2 Pilot Lamp Diagram

← All diagrams

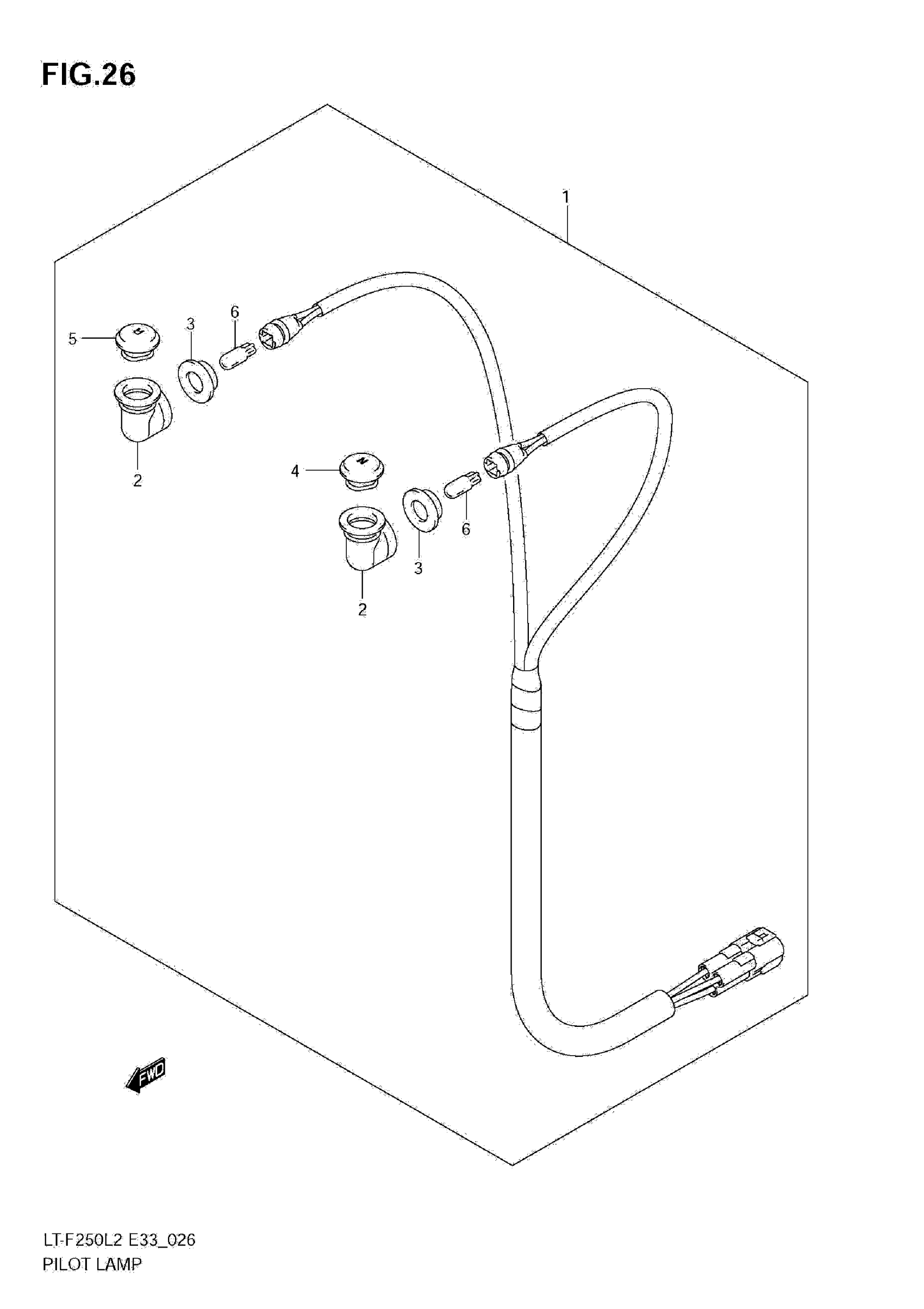

Find the part on the Pilot Lamp diagram for your 2012 Suzuki LT-F250L2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Suzuki LT-F250L2 Pilot Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP ASSY,PILOT This part replaces 36380-05G00.

36380-05G01

1
Out of stock

2

SOCKET

34173-26F00

2
Out of stock

3

RING

34178-26F00

2
Out of stock

4

LENS, NEUTRAL (GREEN)

36321-05G00

1
Out of stock

5

LENS, REVERSE (RED)

36329-05G00

1
Out of stock

6

BULB (12V,3.4W,T6.5)

09471-12103

2
Out of stock
