2012 Suzuki LT-F250L2 Magneto Diagram

← All diagrams

Find the part on the Magneto diagram for your 2012 Suzuki LT-F250L2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

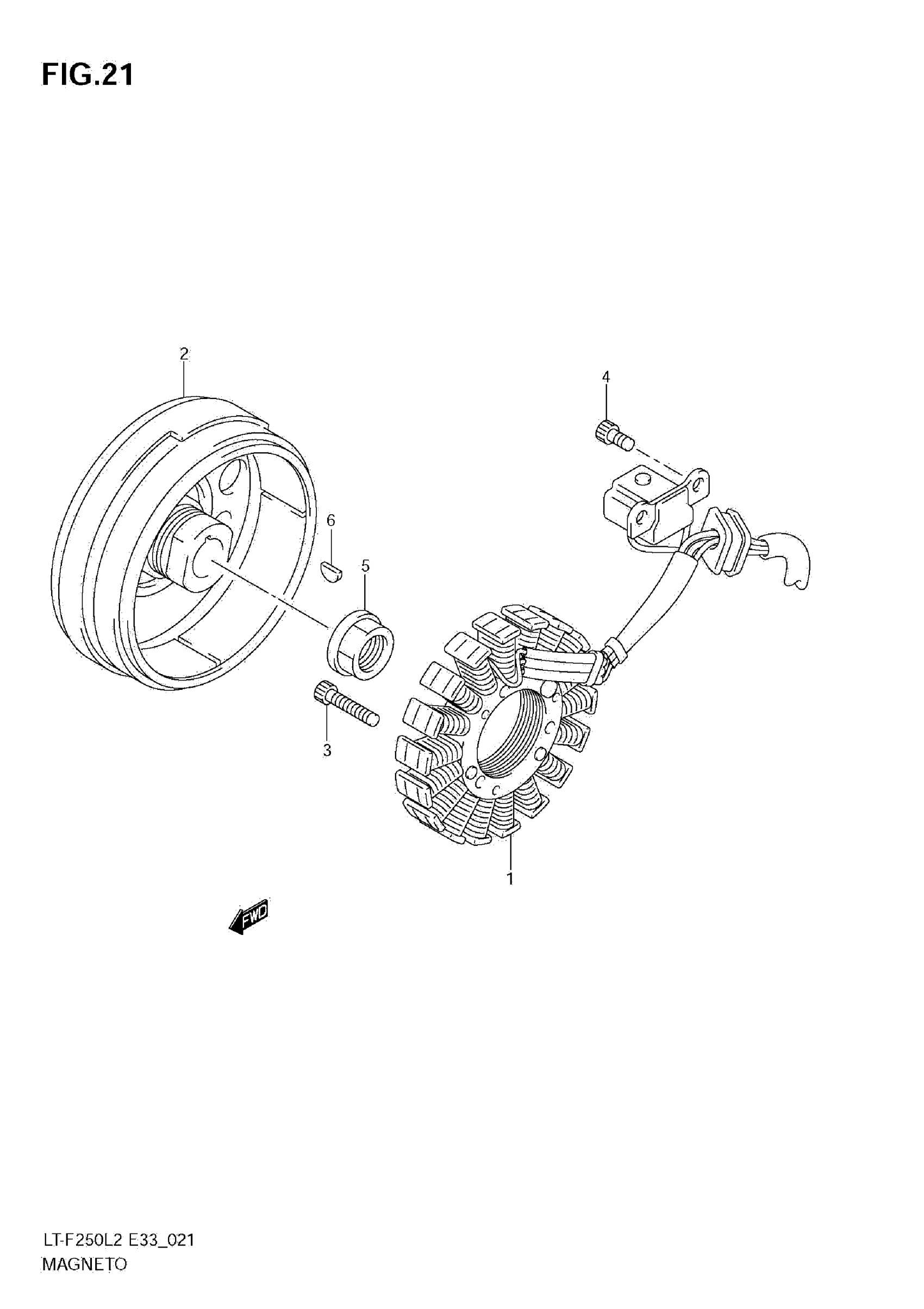

2012 Suzuki LT-F250L2 Magneto Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STATOR ASSY

32101-05G00

1
Out of stock

2

ROTOR ASSY

32102-05G00

1
Out of stock

3

BOLT

07130-0525B

3
Out of stock

4

BOLT

07130-0510B

2
Out of stock

5

NUT, MAGNETO ROTOR

31792-18A00

1
Out of stock

6

KEY

09420-04008

1
Out of stock
