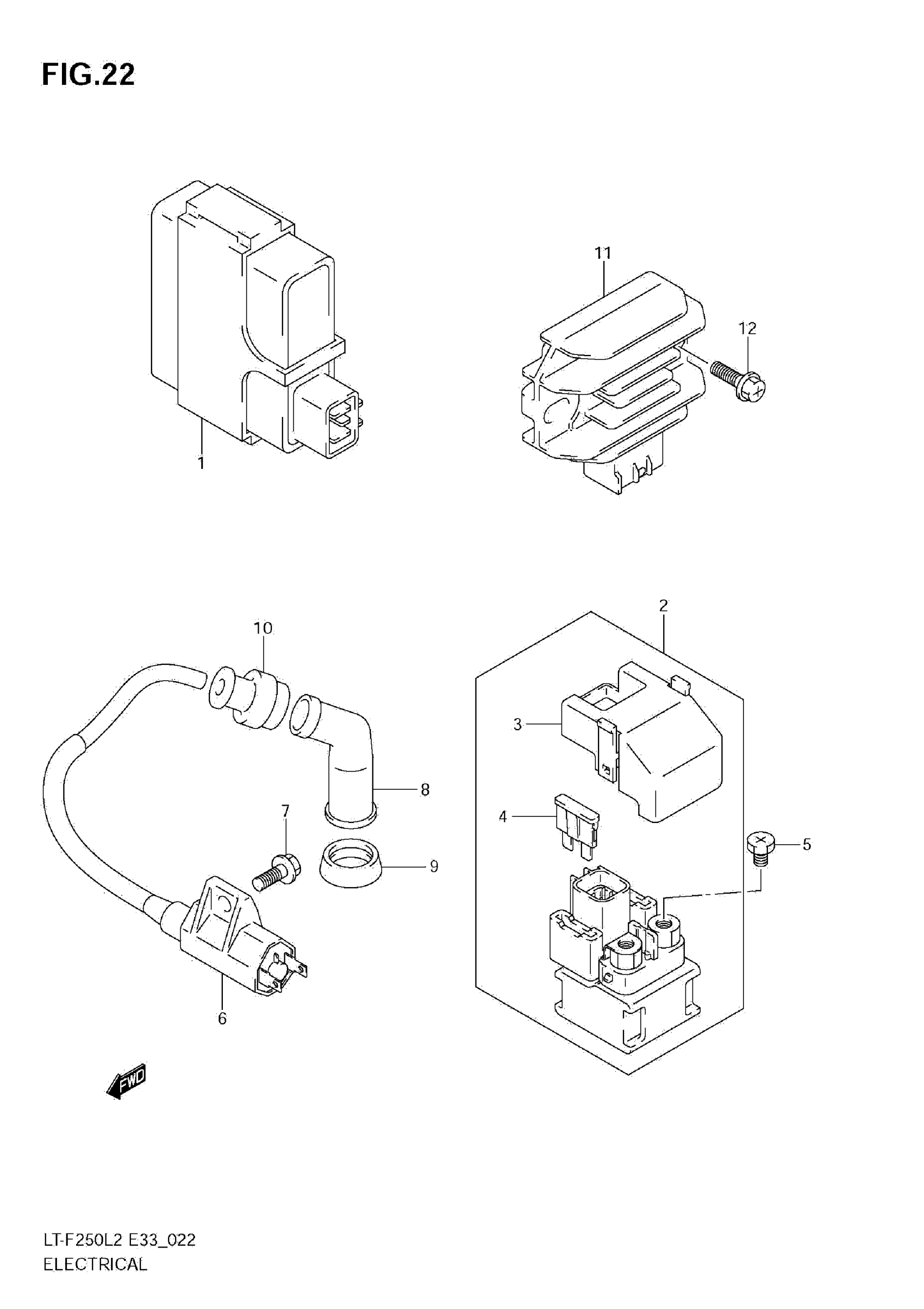

Suzuki LT-F250L2 (2012) ELECTRICAL Diagram

#

Description
Price

1

C.D.I UNIT

32900-05G30

$694.15

2

RELAY ASSY,STAR This part replaces 31800-47E00.

31800-47E01

$73.25

3

COVER

31861-47E00

$18.23

4

FUSE (20A)

09481-20102

$3.23

5

SCREW (6X8)

09128-06013

$1.24

6

COIL ASSY, IGNITION

33410-05G00

$126.02

7

BOLT

01550-0616B

$2.53

8

CAP, SPARK PLUG

33510-43010

$22.88

9

SEAL, SPARK PLUG

33541-47D00

$7.16

10

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$3.97

11

RECTIFIER ASSY

32800-05F20

$248.88

12

SCREW

02162-0625B

$1.46
