2012 Suzuki LT-F250L2 OIL Pump Diagram

← All diagrams

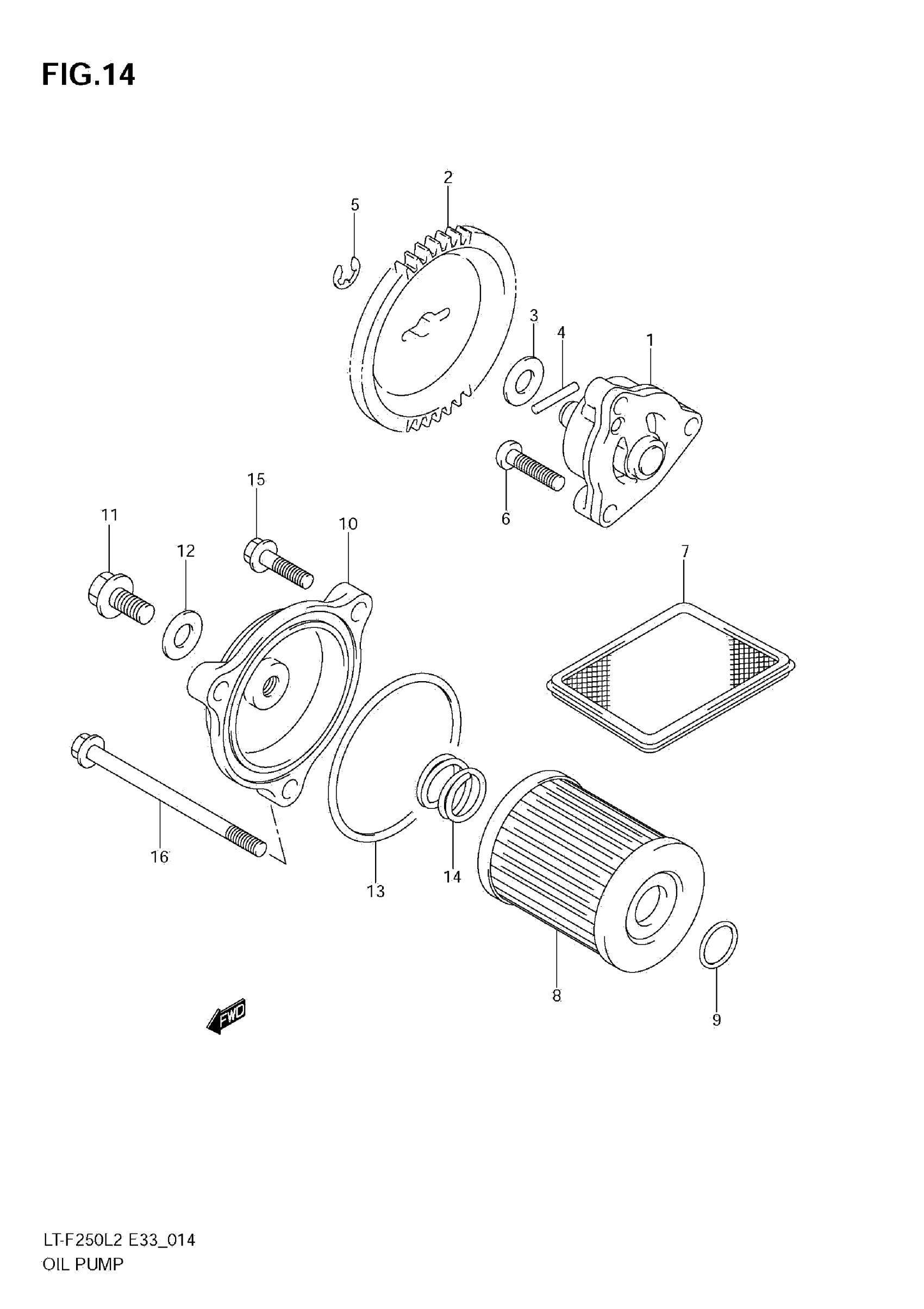

Find the part on the OIL Pump diagram for your 2012 Suzuki LT-F250L2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Suzuki LT-F250L2 OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PUMP, ENGINE OIL

16400-01412

1

$176.20

In stock

2

GEAR, DRIVEN (NT:47)

16331-05G00

1
Out of stock

3

SHIM (8X18X0.5)

09181-08186

1
Out of stock

4

PIN (2.5X19.8)

09261-02001

1
Out of stock

5

CIRCLIP

08332-1106A

1
Out of stock

6

SCREW

02112-0620A

3

$1.55

In stock

7

STRAINER,ENGINE This part replaces 16520-30A00.

16520-30A01

1
Out of stock

8

FILTER ASSY, ENG OIL

16510-25C00

1

$7.44

In stock

9

O RING (D:1.9,ID:13)

09280-13004

1
Out of stock

10

CAP, OIL FILTER

16512-05G00

1
Out of stock

11

PLUG

01550-0812B

1
Out of stock

12

GASKET (8.2X16X1)

09168-08029

1
Out of stock

13

O RING (D:2.4,ID:52.6)

09280-54001

1
Out of stock

14

SPRING

09440-18002

1
Out of stock

15

..BOLT

01547-0620B

2
Out of stock

16

STUD BOLT

01547-0680B

1
Out of stock
