2012 Suzuki LT-F250L2 Cylinder Diagram

← All diagrams

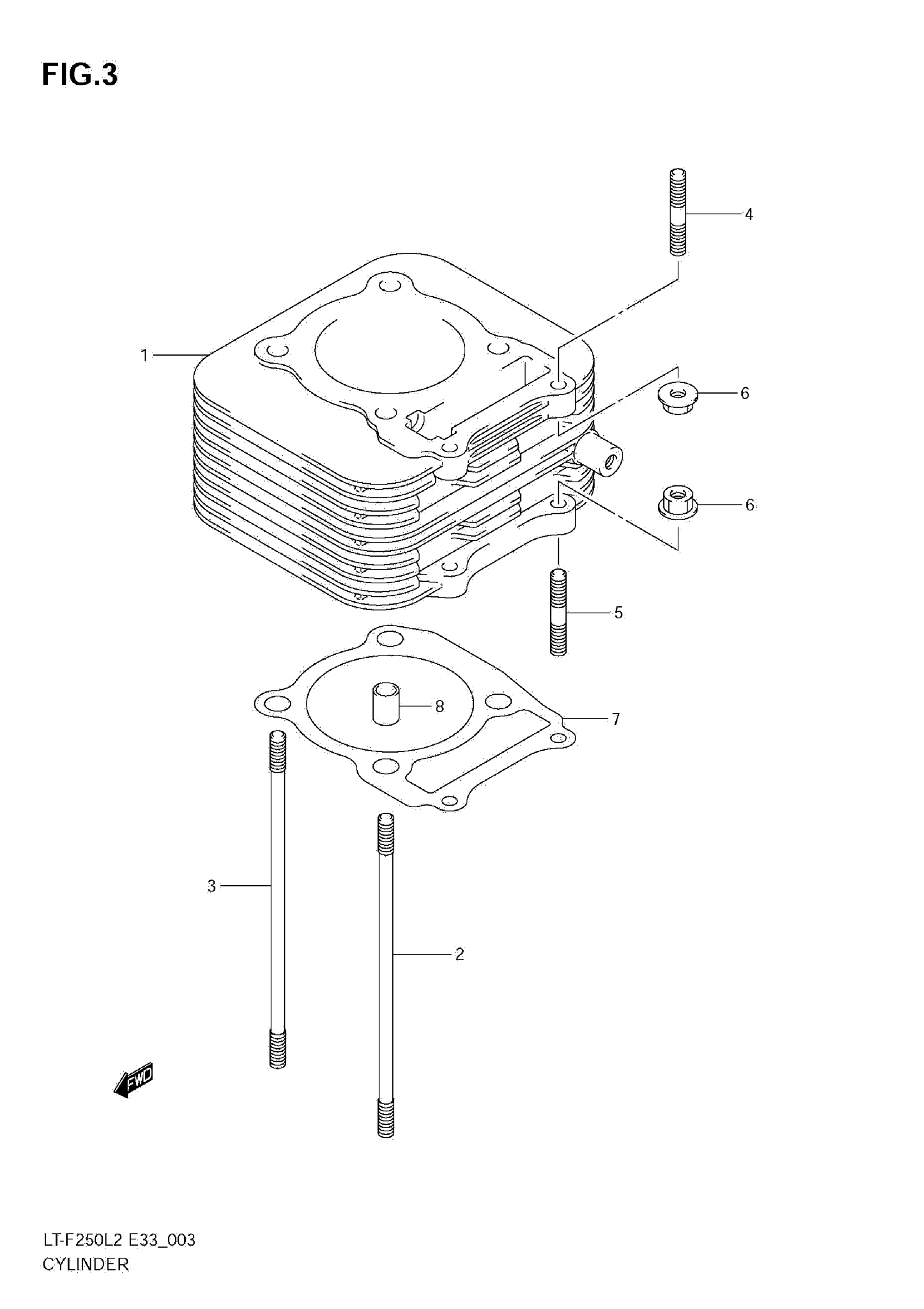

Find the part on the Cylinder diagram for your 2012 Suzuki LT-F250L2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Suzuki LT-F250L2 Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER

11210-05G00-0F0

1

$518.38

In stock

2

STUD BOLT

09108-08195

2

$5.49

In stock

3

STUD BOLT

09108-08184

2

$5.89

In stock

4

STUD BOLT

01421-0625A

2
Out of stock

5

STUD BOLT

01421-0625A

2
Out of stock

6

NUT

08316-1006A

4
Out of stock

7

GASKET, CYLINDER

11241-18A20

1

$5.60

In stock

8

PIN

04211-11149

2

$1.90

In stock
