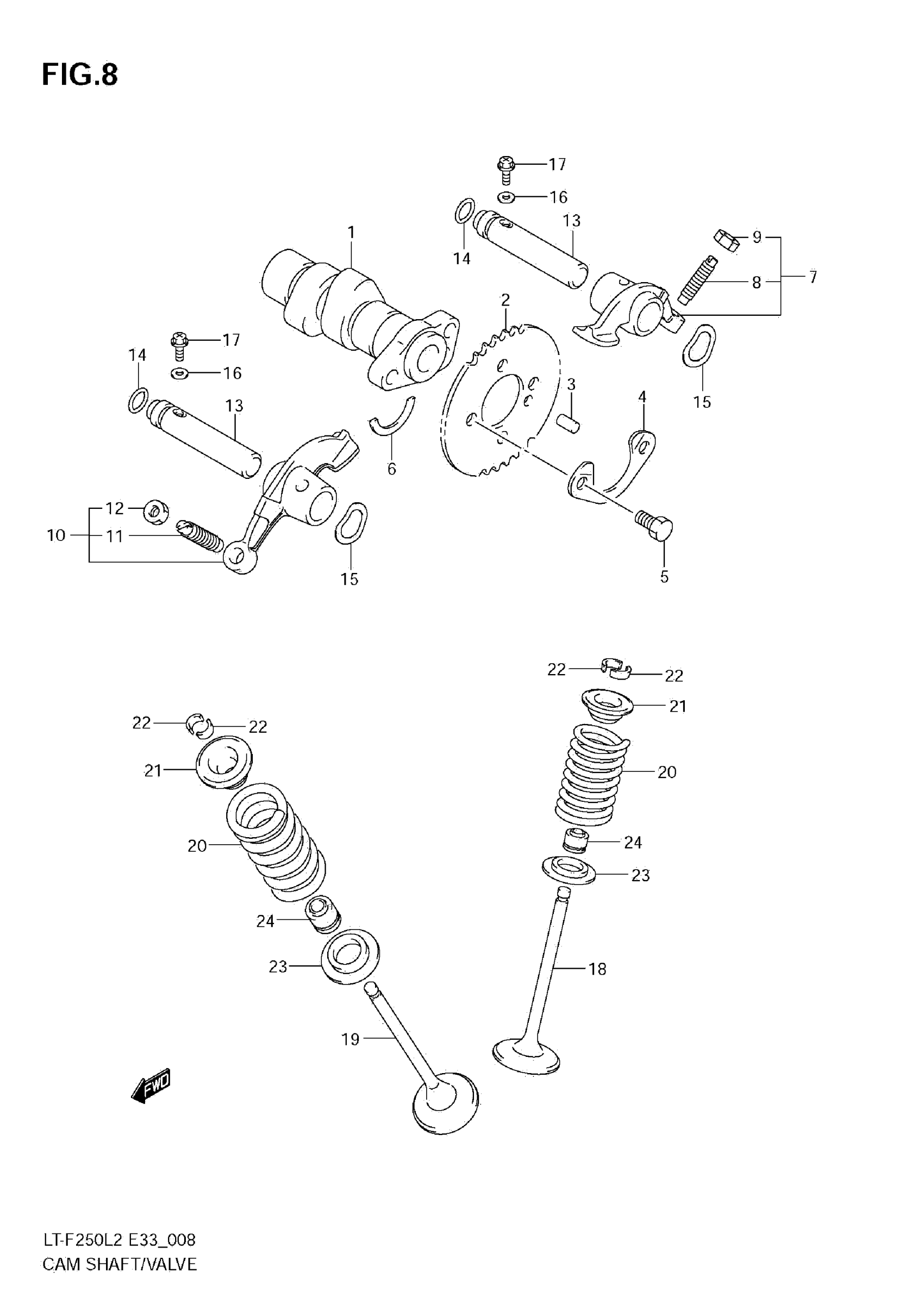

Suzuki LT-F250L2 (2012) CAM SHAFT/VALVE Diagram

#

Description
Price

1

CAM SHAFT

12711-18A00

$203.53

2

SPROCKET (NT:34)

12741-21G00

$55.55

3

PIN (5X8)

09261-05005

$1.43

4

WASHER, SPROCKET

12747-05202

$2.53

5

BOLT (6X10.5)

09100-06166

$3.30

6

C-RING

09390-22002

$2.33

7

ARM ASSY, VALVE ROCKER

12850-25C00

$39.51

8

.SCREW, TAPPET ADJUSTING

12842-32411

$4.93

9

.NUT, ADJUSTING SCREW

12843-32400

$2.80

10

ARM ASSY, VALVE ROCKER

12850-25C00

$39.51

11

.SCREW, TAPPET ADJUSTING

12842-32411

$4.93

12

.NUT, ADJUSTING SCREW

12843-32400

$2.80

13

SHAFT, VALVE ROCKER ARM

12861-05201

$22.25

14

.O RING (D:1.9,ID:8.6)

09280-09005

$3.33

15

WASHER

09164-12021

$2.01

16

GASKET (5.8X13X1.2)

09168-06023

$2.01

17

SCREW

02162-0625A

$1.68

18

VALVE, INTAKE

12911-05G00

$37.35

19

VALVE, EXHAUST

12912-18A00

$58.48

20

SPRING, VALVE

12921-21G00

$11.99

21

RETAINER, SPRING

12931-19B01

$13.50

22

COTTER, VALVE

12932-24400

$1.98

23

SEAT, SPRING

12933-19B00

$9.37

24

OIL SEAL (5.5X11X8.2)

09289-05015

$6.04
