2012 Suzuki LT-F250L2 Crankshaft Diagram

← All diagrams

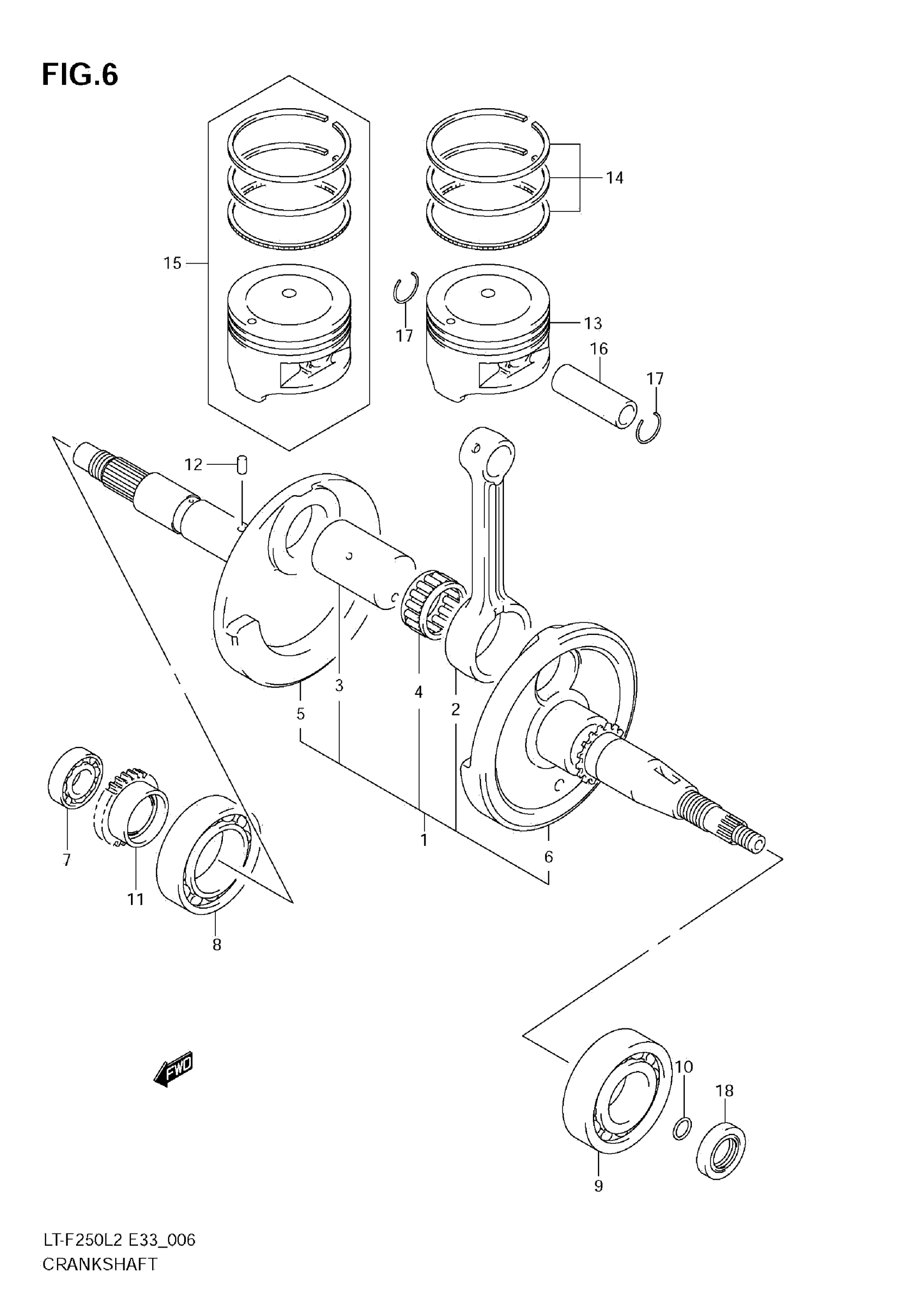

Find the part on the Crankshaft diagram for your 2012 Suzuki LT-F250L2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Suzuki LT-F250L2 Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSY

12200-05G11

1
Out of stock

2

ROD, CONNECTING

12161-19B03

1

$151.07

In stock

3

PIN, CRANK

12210-22A03

1

$56.53

In stock

4

BEARING (30X39X18)

09263-30033-0B0

1

$83.43

In stock

5

CRANKSHAFT, RH

12220-05G01

1
Out of stock

6

CRANKSHAFT, LH

12261-05G10

1
Out of stock

7

BEARING (15X35X11)

09262-15038

1

$35.75

In stock

8

BEARING (28X68X18)

09262-28014

1

$74.08

In stock

9

BEARING (35X72X17)

09262-35073

1

$46.28

In stock

10

O RING (D:1.9,ID:12.6)

09280-12009

1
Out of stock

11

GEAR, OIL PUMP DRIVE (NT:30)

16321-19B00

1
Out of stock

12

PIN (4X13.8)

04221-04089

1
Out of stock

13

PISTON

12111-05G01-0F0

1

$85.87

In stock

14

1

$42.65

In stock

14

1

$59.27

In stock

15

PISTON SET (OS:0.5) | OPT

12100-05G01-050

1

$146.30

In stock

16

PIN, PISTON

12151-22A02

1

$12.12

In stock

17

CIRCLIP

09381-16004

2

$1.72

In stock

18

OIL SEAL (22X35X7)

09289-22010

1

$30.38

In stock
