Description

Price

1

TIE ROD, STEERING

51281-05G00

$29.78

2

KNUCKLE, STEERING RH

51230-05G10

Unavailable

3

KNUCKLE, STEERING LH

51240-05G10

Unavailable

4

END, KNUCKLE STEERING UPPER

51210-05G00

$95.17

5

ROD, END RH

51260-21G00

$65.40

6

ROD, END LH

51270-21G00

$88.25

7

NUT, TIE ROD RH

09140-10043

$2.92

8

NUT This part replaces 08314-40103.

08314-4010B

$2.58

9

NUT, TIE ROD LH

09140-10027

$1.54

10

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.25

11

WASHER,LOCK This part replaces 08321-01123.

08321-0112A

$2.08

12

NUT This part replaces 08314-40123.

08314-4012A

$2.61

13

PIN This part replaces 04111-30208.

04111-3020A

$1.63

14

CIRCLIP This part replaces 08331-31306.

08331-31309

$2.68

15

WASHER, ROD END

09162-10008

$2.88

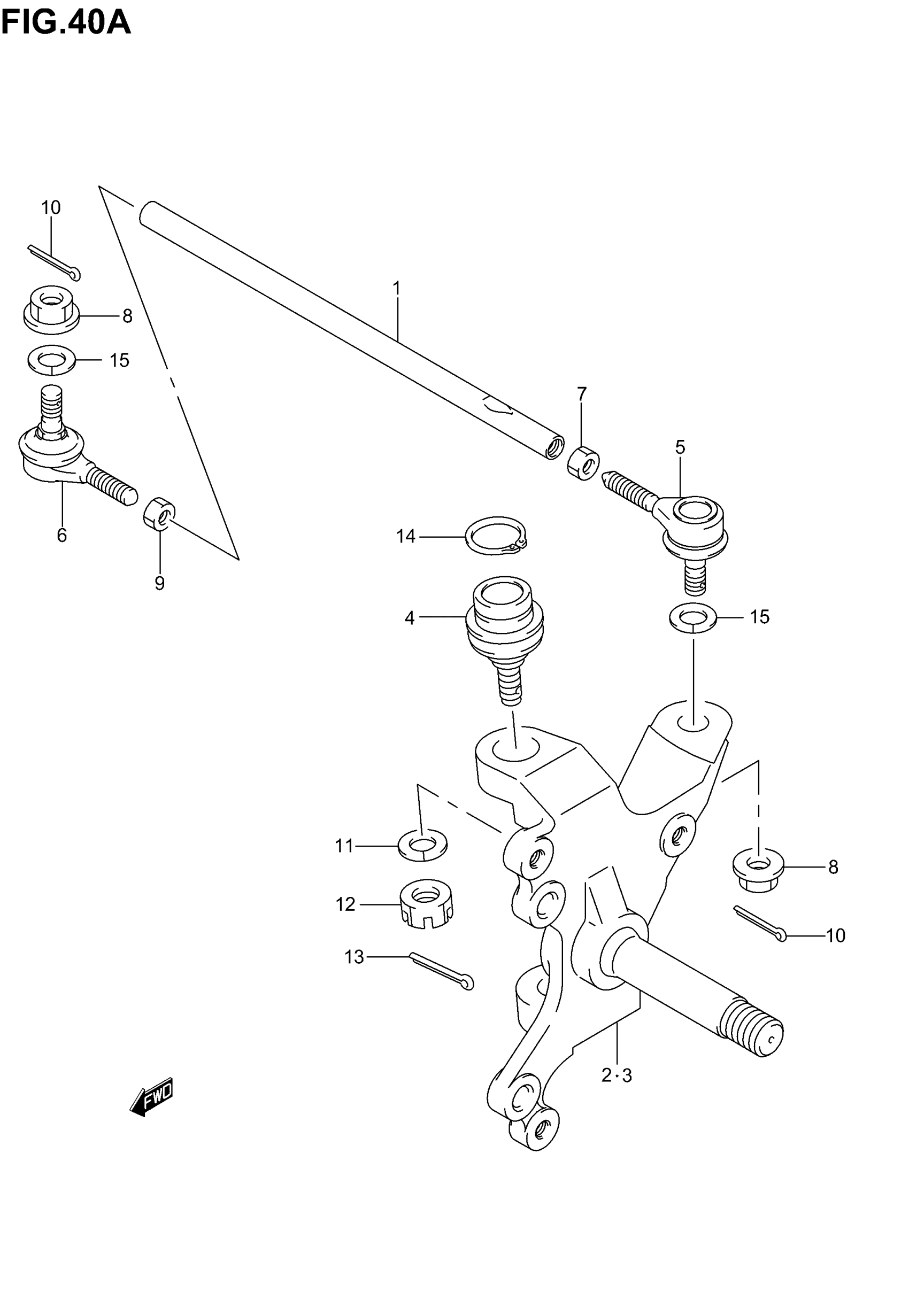

Suzuki LT-F250 (2006) STEERING KNUCKLE (MODEL K4) Diagram
