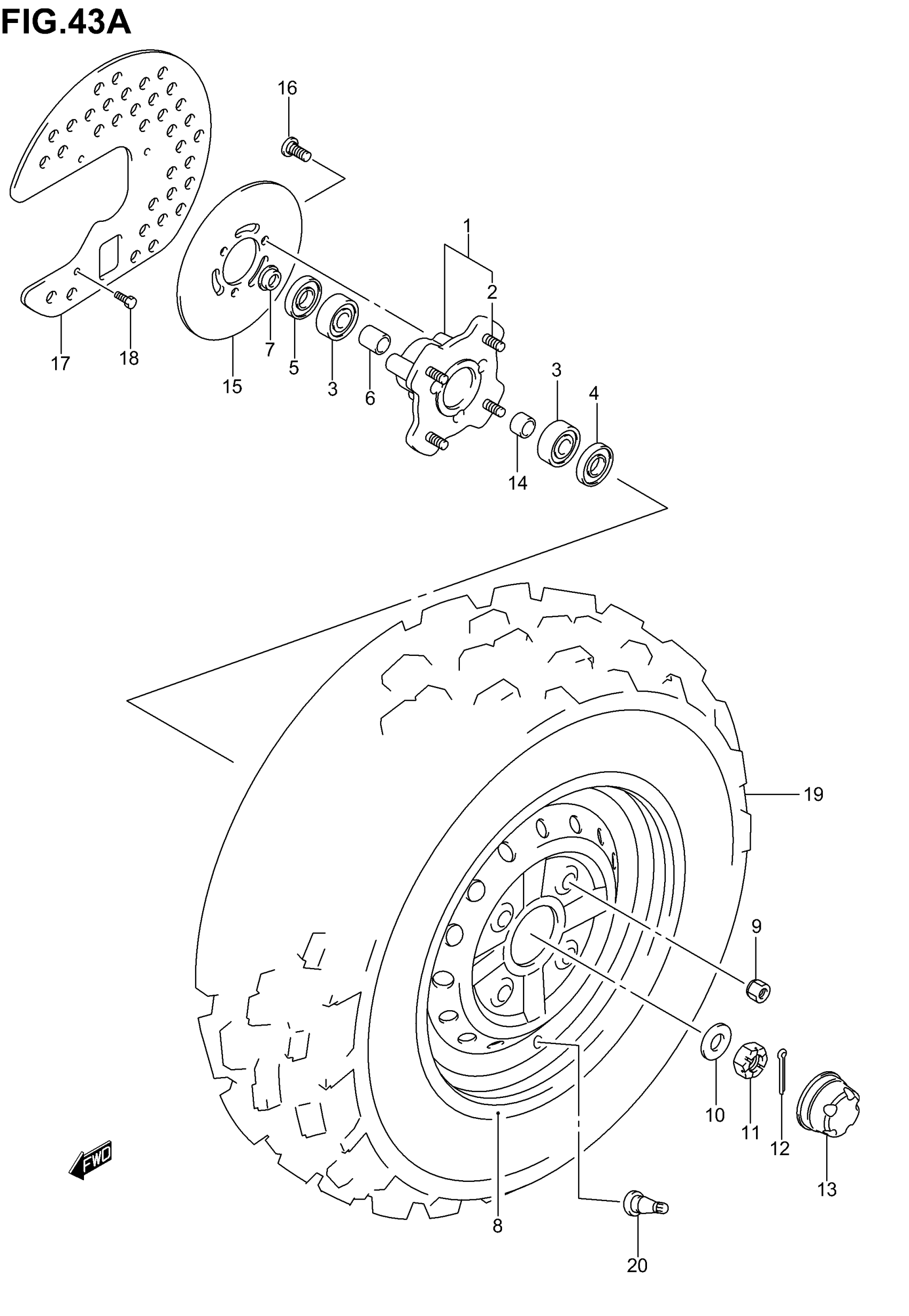

Suzuki LT-F250 (2006) FRONT WHEEL (MODEL K4/K5/K6) Diagram

#

Description
Price

1

HUB, FRONT WHEEL | Includes Item(s) 2

54110-05G10

$295.57

2

BOLT (10X30) This part replaces 09119-10049.

09119-10049-XC0

$2.24

3

BEARING, FRONT HUB

08120-62037

$19.28

4

DUST SEAL, OUTER

09284-22002

$12.69

5

DUST SEAL, INNER

09284-26002

$9.85

6

SPACER, FRONT HUB

54731-05G00

$9.33

7

SPACER, FRONT AXLE

54741-05G00

$15.91

8

RIM, FRONT WHEEL (11X5.5AT) (SILVER)

55310-05G00-YL8

$378.73

9

NUT | MODEL K4/K5

09140-10021

$2.01

9

NUT | MODEL K6

09159-10114

$4.67

10

WASHER This part replaces 08322-01163.

08322-0116A

$1.86

11

NUT, HUB This part replaces 08314-40163.

08314-4016A

$3.47

12

PIN, COTTER This part replaces 04111-40408.

04111-4040A

$1.37

13

CAP,WHEEL CENTER

54725-09F01

$9.11

14

SPACER, FRONT AXLE

54741-189A0

$6.25

15

DISC, FRONT BRAKE

59211-05G00

$217.58

16

BOLT, BRAKE DISC

09106-08155

$3.44

17

COVER, FRONT DISC | MODEL K4 This part replaces 59231-05G00.

59231-05G10

Unavailable

17

COVER, FRONT DISC | MODEL K5/K6

59231-05G10

Unavailable

18

BOLT (6X12) This part replaces 09103-06083.

09103-06285

$1.97

19

TIRE, FRONT (AT22X7-11) This part replaces 55110-05G00.

55110-05G20

$298.30

20

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.10
