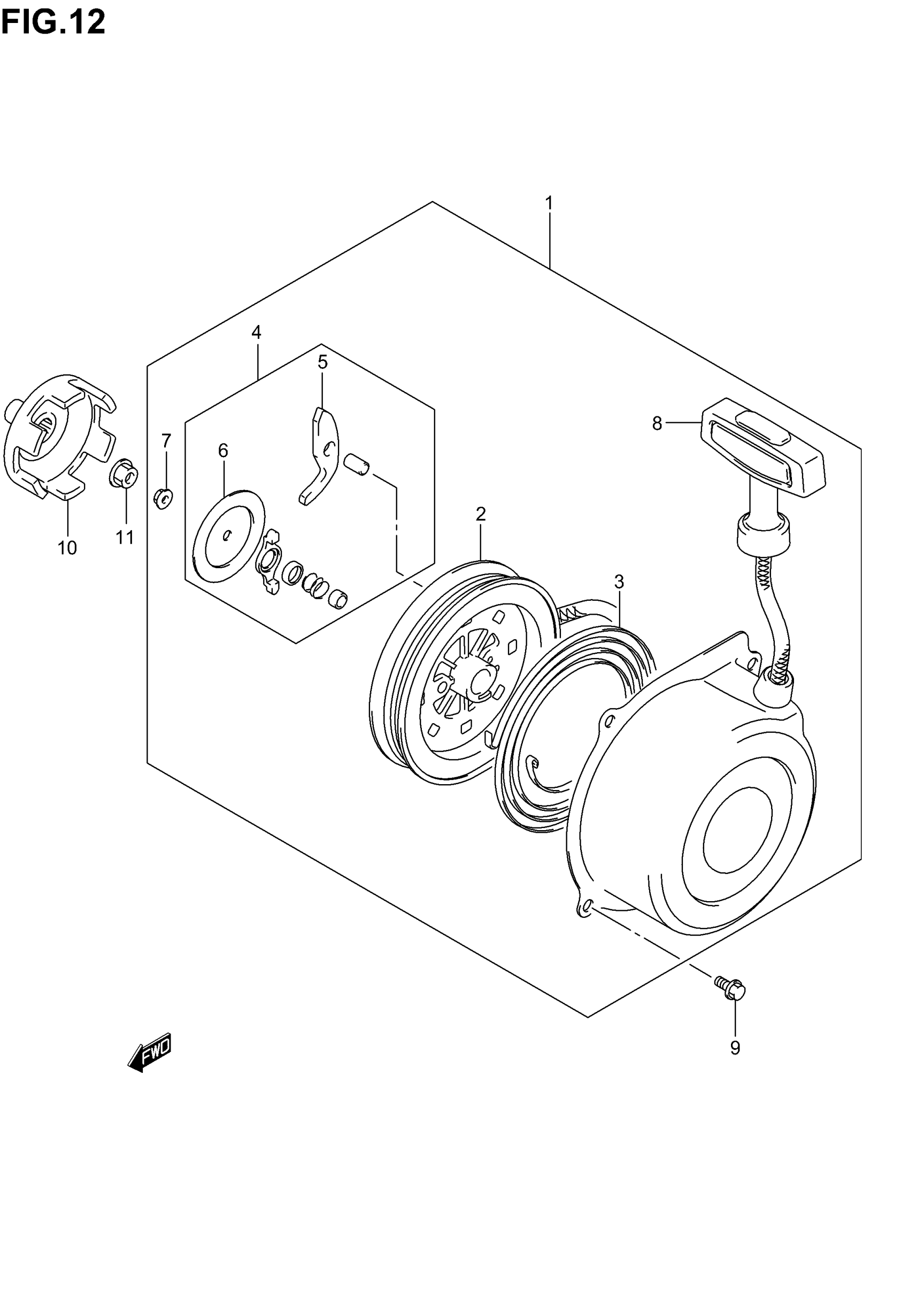

Suzuki LT-F250 (2006) RECOIL STARTER Diagram

#

Description
Price

1

STARTER ASSY, RECOIL | Includes Item(s) 2 - 8

18100-18A20

$299.27

2

REEL

18120-24400

$33.83

3

.SPRING,SPIRAL

18142-24400

$27.09

4

RATCHET SET

18130-24400

$22.50

5

RATCHET

18131-24411

$9.17

6

..GUIDE,RATCHET

18132-24400

$2.80

7

NUT This part replaces 08316-10063.

08316-1006B

$2.50

8

ROPE ASSY (ROPE OD:6)

18200-24400

$32.26

9

BOLT

09103-06236

$2.71

10

CUP, STARTER

18410-05G00

Unavailable

11

NUT This part replaces 08316-10103.

08316-1010B

$2.65
