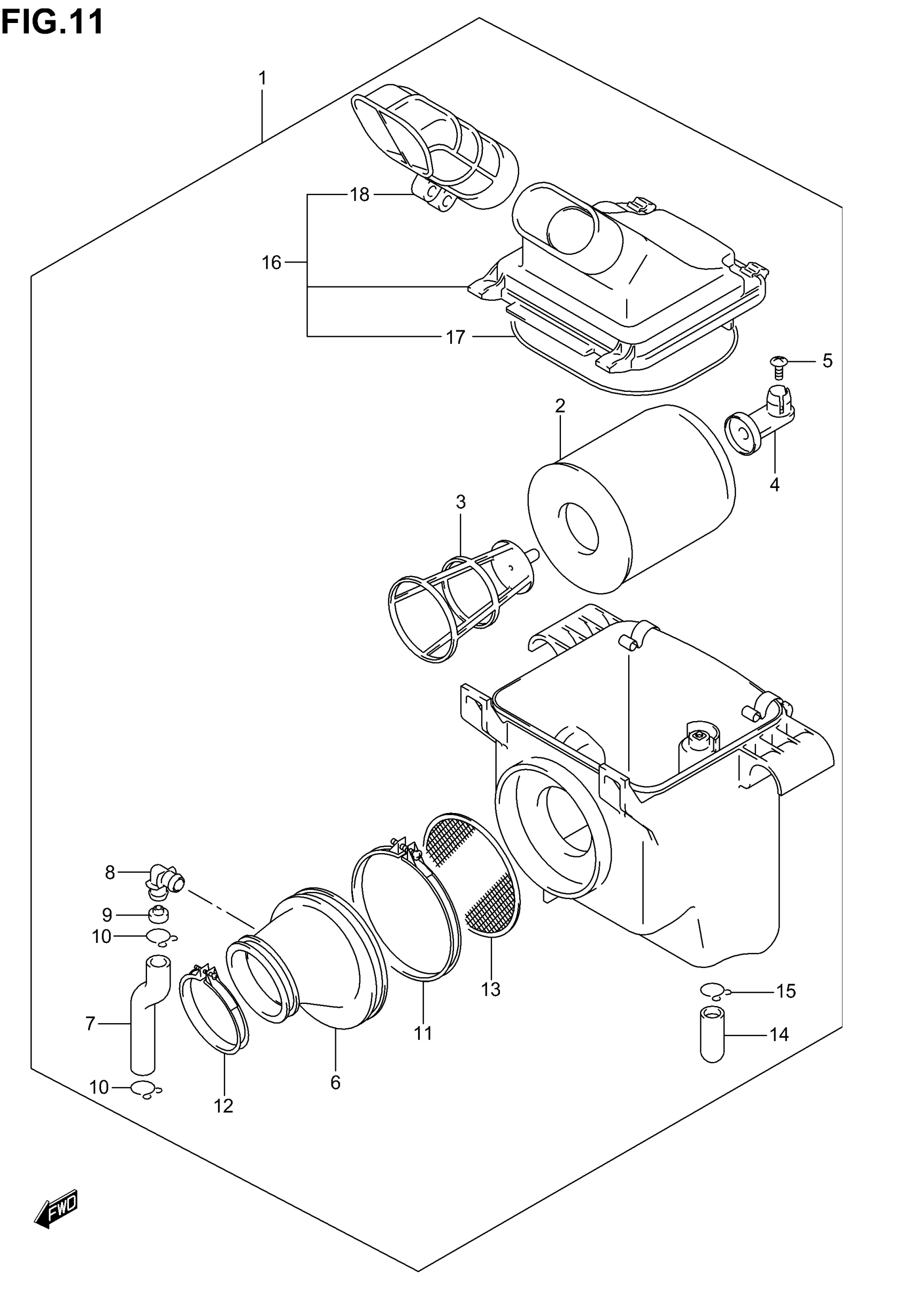

Suzuki LT-F250 (2006) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR | MODEL K2

13700-05G00

Unavailable

1

CLEANER ASSY, AIR | MODEL K3/K4/K5/K6; Includes Item(s) 2 - 18 This part replaces 13700-05G10.

13700-05G00

Unavailable

2

FILTER ASSY | MODEL K2

13780-05G00

$30.38

2

FILTER ASSY | MODEL K3/K4/K5/K6

13780-05G10

$30.38

3

HOLDER, FILTER | MODEL K2 This part replaces 13791-05G00.

13791-05G01

$12.11

3

HOLDER, FILTER | MODEL K3/K4/K5/K6

13791-05G01

$12.11

4

STOPPER, HOLDER

13792-05G00

$4.32

5

SCREW This part replaces 02142-06163.

02142-0616A

$1.37

6

TUBE,OUTLET This part replaces 13881-05G00.

13881-05G01

$36.12

7

TUBE,BREATHER This part replaces 13853-05G00.

13853-05G01

$12.52

8

JOINT

13858-14D20

$6.80

9

JET,BREATHER This part replaces 13859-05G00.

13859-05G01

$6.32

10

CLIP

09401-14301

$2.17

11

CLAMP (CLEANER SIDE)

09402-98208

$6.49

12

CLAMP (CARBURETOR SIDE)

09402-58208

$4.84

13

TRAP, FLAME

13810-05G00

$13.73

14

.PLUG,DRAIN This part replaces 13878-09F00.

13878-09F01

$5.17

15

CLIP

09401-14301

$2.17

16

CAP COMP,AIR CL This part replaces 13740-05G00.

13740-05G01

$73.15

17

GASKET

13746-05G00

$5.50

18

TUBE,INLET This part replaces 13891-05G00.

13891-05G01

$17.50
