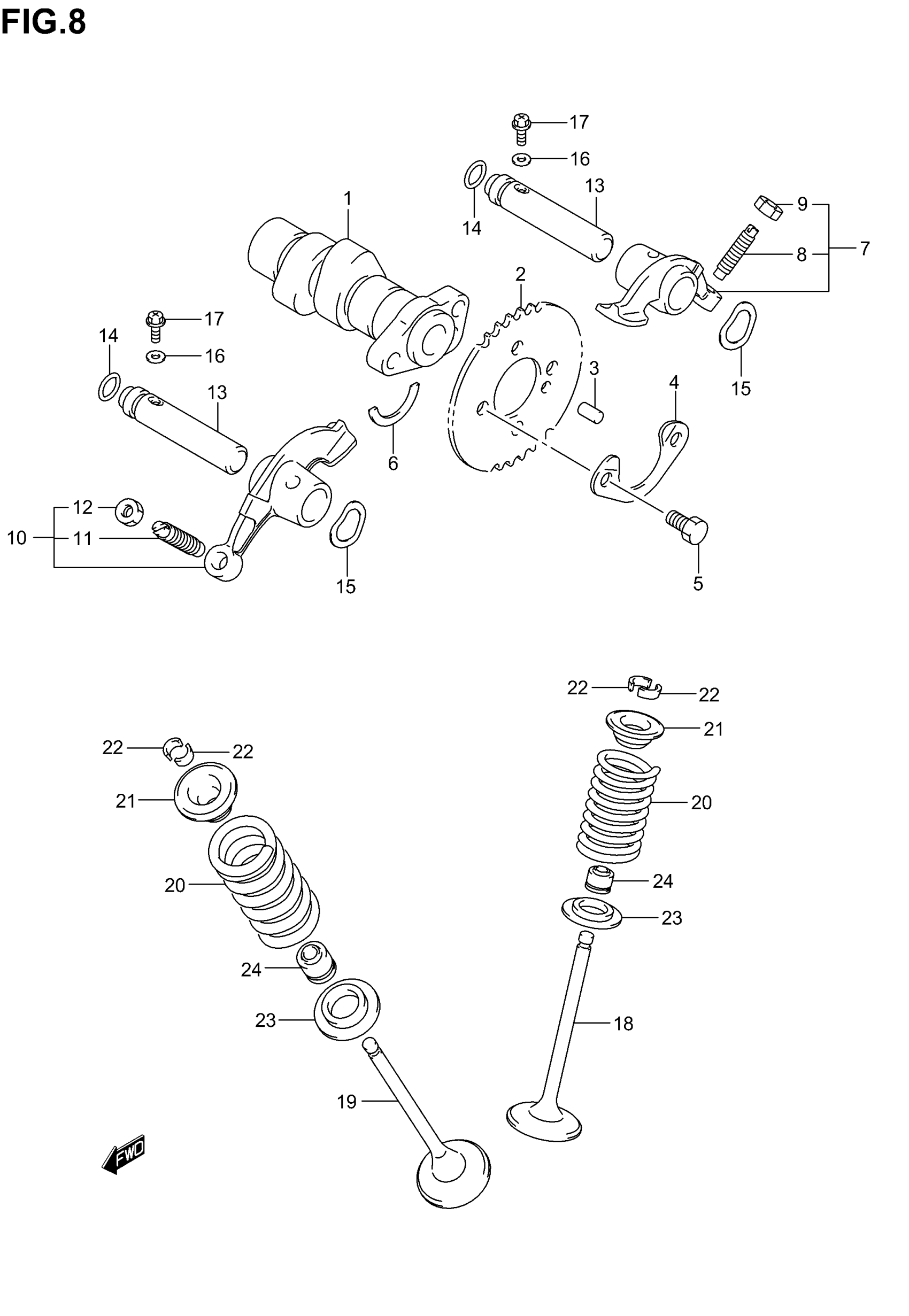

Suzuki LT-F250 (2006) CAM SHAFT/VALVE Diagram

#

Description
Price

1

CAM SHAFT

12711-18A00

$203.53

2

SPROCKET, CAMSHAFT (NT:32)

12741-05201

$25.93

3

PIN

09261-05005

$1.48

4

WASHER, SPROCKET This part replaces 12747-05201.

12747-05202

$2.63

5

BOLT (6X10.5)

09111-06032

$2.19

6

C-RING

09390-22002

$2.33

7

ARM ASSY, VALVE ROCKER | Includes Item(s) 8 - 9

12850-25C00

$41.29

8

.SCREW, TAPPET ADJUSTING

12842-32411

$5.16

9

.NUT, ADJUSTING SCREW

12843-32400

$2.80

10

ARM ASSY, VALVE ROCKER | Includes Item(s) 11 - 12

12850-25C00

$41.29

11

.SCREW, TAPPET ADJUSTING

12842-32411

$5.16

12

.NUT, ADJUSTING SCREW

12843-32400

$2.80

13

SHAFT, VALVE ROCKER ARM

12861-05201

$22.25

14

.O RING (D:1.9,ID:8.6)

09280-09005

$3.44

15

WASHER

09164-12021

$2.09

16

GASKET

09168-06023

$2.09

17

SCREW This part replaces 02162-06253.

02162-0625A

$1.68

18

VALVE, INTAKE

12911-05G00

$52.67

19

VALVE, EXHAUST

12912-18A00

$61.11

20

SPRING, VALVE | MODEL K2/K3

12921-19B00

$16.77

20

SPRING, VALVE | MODEL K4/K5/K6

12921-21G00

$12.53

21

RETAINER, SPRING This part replaces 12931-19B00.

12931-19B01

$13.50

22

COTTER, VALVE

12932-24400

$2.05

23

SEAT, SPRING

12933-19B00

$9.37

24

OIL SEAL (5.5X11X8.2)

09289-05015

$6.23
