2006 Suzuki LT-F250 Oil Pump Diagram

← All diagrams

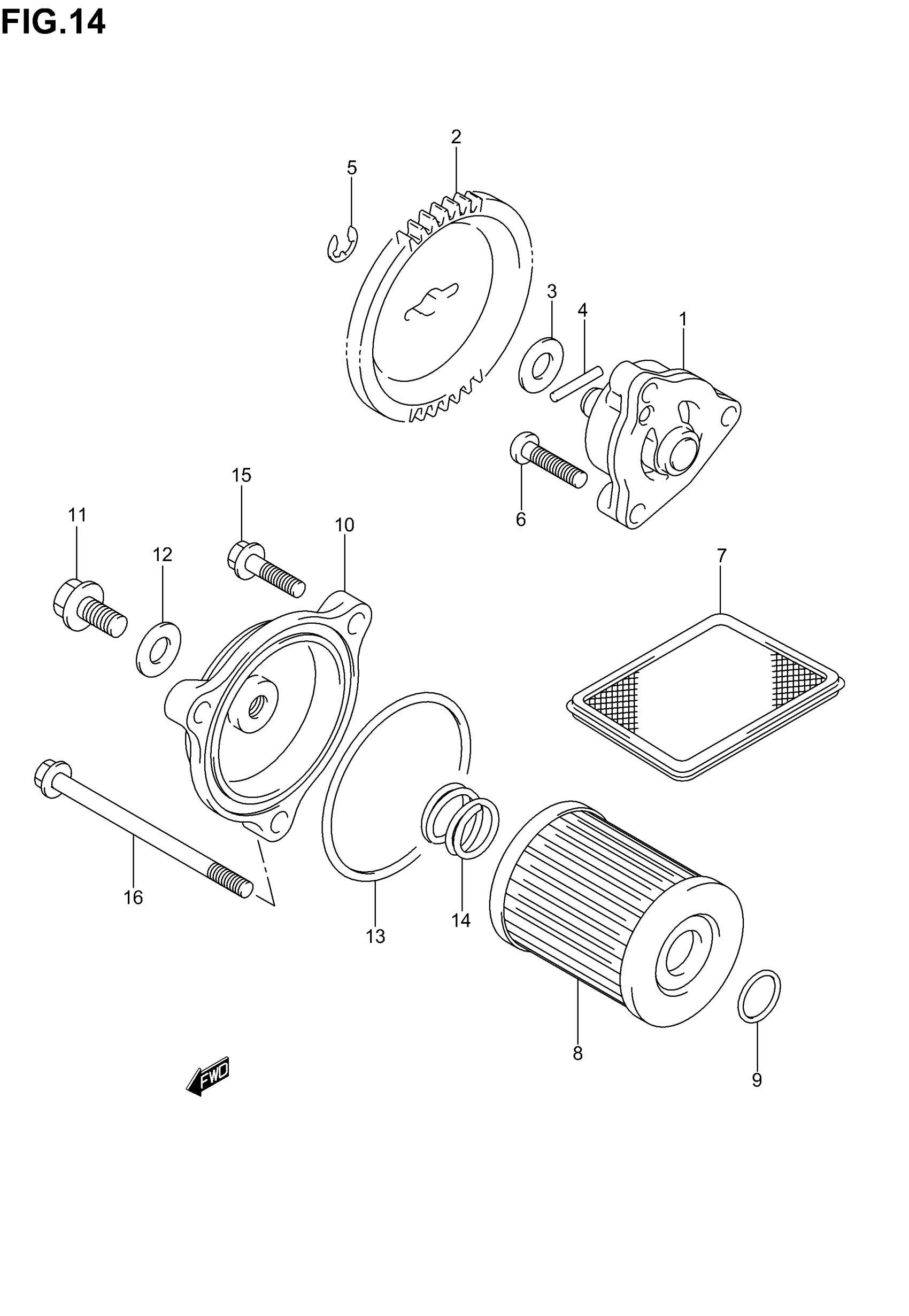

Find the part on the Oil Pump diagram for your 2006 Suzuki LT-F250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2006 Suzuki LT-F250 Oil Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PUMP, ENGINE OIL

16400-01412

1
Out of stock

2

GEAR, DRIVEN (NT:47)

16331-05G00

1
Out of stock

3

WASHER, PUMP DRIVEN GEAR

09181-08186

1
Out of stock

4

PIN

09261-02001

1
Out of stock

5

CIRCLIP This part replaces 08332-11063.

08332-1106A

1
Out of stock

6

SCREW This part replaces 02112-06203.

02112-0620A

3
Out of stock

7

STRAINER,ENGINE This part replaces 16520-30A00.

16520-30A01

1
Out of stock

8

FILTER ASSY, ENG OIL

16510-25C00

1
Out of stock

9

O RING (D:1.9,ID:13)

09280-13004

1
Out of stock

10

CAP, OIL FILTER

16512-05G00

1
Out of stock

11

BOLT (8X12) This part replaces 01550-08123.

01550-0812A

1
Out of stock

12

GASKET

09168-08029

1
Out of stock

13

O RING (D:2.4,ID:52.6)

09280-54001

1
Out of stock

14

SPRING

09440-18002

1
Out of stock

15

..BOLT This part replaces 01547-06203.

01547-0620B

2
Out of stock

16

BOLT This part replaces 01547-06803.

01547-0680B

1
Out of stock
