2001 Suzuki LT-F250 Suspension ARM Diagram

← All diagrams

Find the part on the Suspension ARM diagram for your 2001 Suzuki LT-F250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

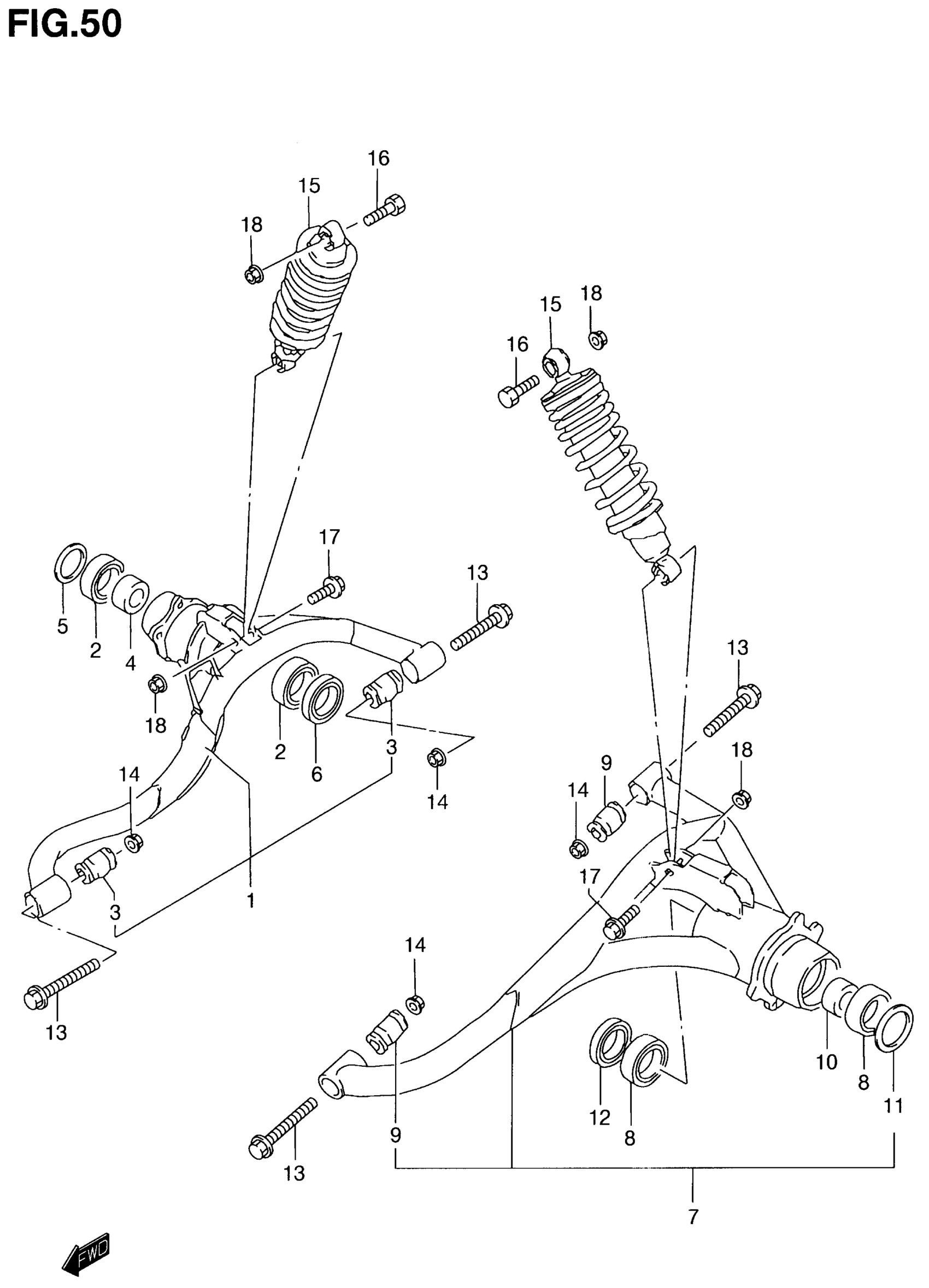

2001 Suzuki LT-F250 Suspension ARM Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ARM SET, SUSPENSION RH (BLACK) | Includes Item(s) 2 - 6

61100-19860-019

1
Out of stock

2

2

$30.70

In stock

3

2

$11.46

In stock

4

SPACER (32.4X38X17)

09180-32007

1

$25.05

In stock

5

1

$14.55

In stock

6

1

$16.60

In stock

7

ARM SET, SUSPENSION LH (BLACK) | Includes Item(s) 8 - 12

61100-19871-019

1
Out of stock

8

2

$30.70

In stock

9

2

$11.46

In stock

10

SPACER (32.4X38X17)

09180-32007

1

$25.05

In stock

11

1

$14.55

In stock

12

1

$16.60

In stock

13

BOLT,10X77 This part replaces 09103-10247.

09103-10247-XC0

4
Out of stock

14

NUT

08319-31107

4

$2.92

In stock

15

ABSORBER ASSY, REAR SHOCK (BLACK) | MODEL X/Y This part replaces 62100-19B10-019.

62100-19B20-019

2
Out of stock

16

BOLT, UPPER (10X38)

09100-10227

2

$3.80

In stock

17

BOLT, LOWER (10X37)

09103-10019

2
Out of stock

18

NUT

08319-31107

4

$2.92

In stock
