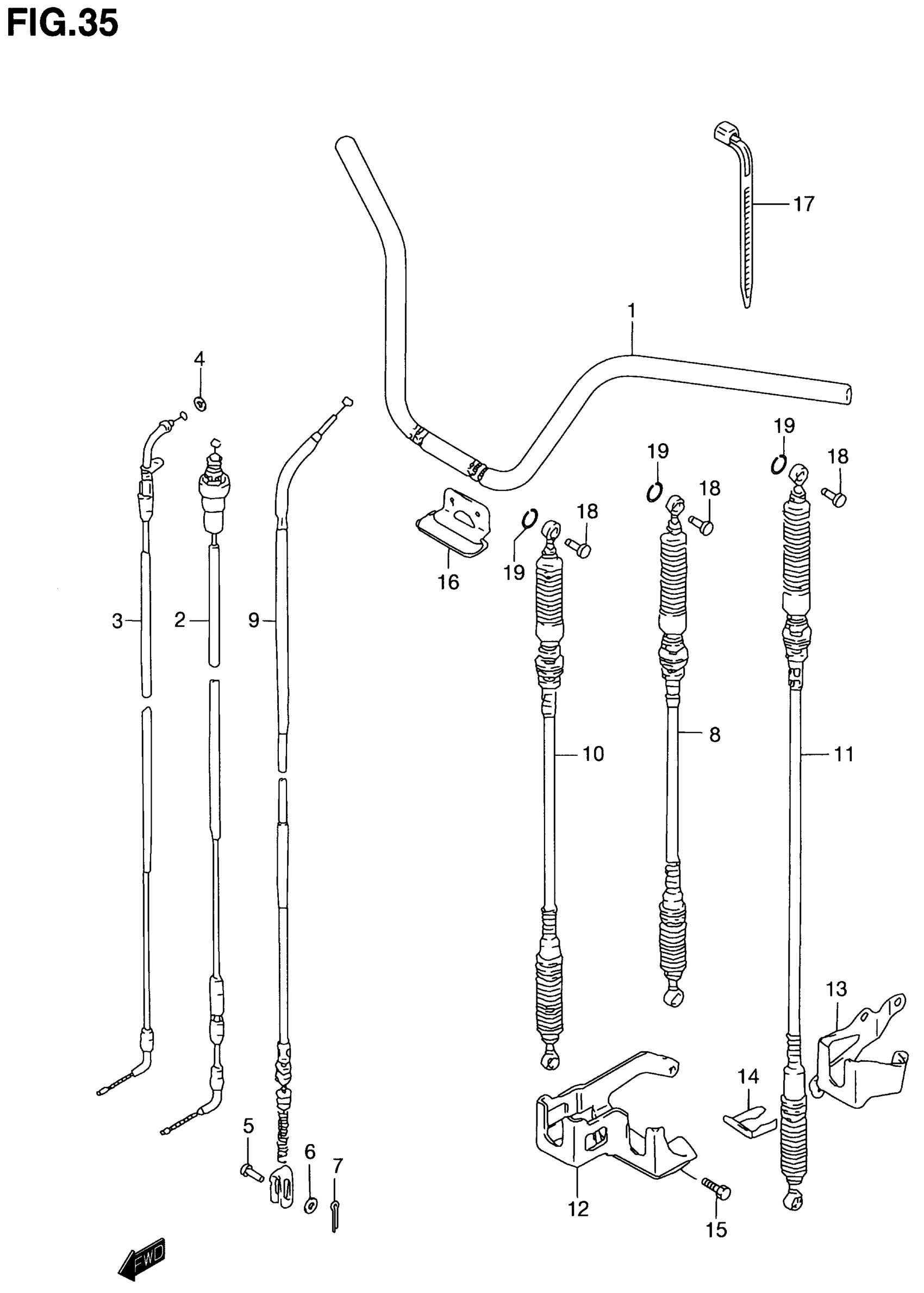

Suzuki LT-F250 (2001) HANDLEBAR - CABLE Diagram

#

Description
Price

1

HANDLEBAR | MODEL X/Y This part replaces 56111-20B01-291.

56111-20B02

Unavailable

1

HANDLEBAR | MODEL K1

56111-20B02

Unavailable

2

CABLE ASSY, THROTTLE | MODEL X

58300-19B20

$19.92

2

CABLE ASSY, THROTTLE | MODEL Y This part replaces 58300-39DA0.

58300-39DB0

$28.92

2

CABLE ASSY, THROTTLE | MODEL K1

58300-39DB0

$28.92

3

CABLE, STARTER | MODEL X

58410-19B10

$32.70

3

CABLE, STARTER | MODEL Y/K1

58410-39DA0

$49.52

4

WASHER

09320-06503

$2.87

5

PIN, REAR CABLE PEDAL SIDE

09200-06013

$2.05

6

.WASHER This part replaces 08322-01063.

08322-0106B

$2.24

7

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.22

8

CABLE, T/M GEAR SHIFT

58680-19B21

$232.28

9

CABLE, PARKING BRAKE

58810-19B02

$42.56

10

CABLE, REVERSE | MODEL X This part replaces 58840-19B10.

58840-39DA0

Unavailable

10

CABLE, REVERSE | MODEL Y

58840-39DA0

Unavailable

10

CABLE, REVERSE | MODEL K1

58840-39DB0

Unavailable

11

CABLE, SUB T/M SHIFT

58880-20B10

Unavailable

12

BRACKET, CONTROL CABLE

58870-19B00

Unavailable

13

BRACKET, CONTROL CABLE

58873-19B11

Unavailable

14

CLIP

09383-19003

$5.10

15

BOLT This part replaces 01547-06163.

01547-0616B

$2.43

16

GUIDE, CABLE

58620-19B10

Unavailable

17

CLAMP, L:125

09407-14403

$2.24

17

CLAMP, L:165

09407-18402

$2.21

18

PIN

09208-08008

$2.77

19

CIRCLIP This part replaces 08332-11063.

08332-1106A

$1.43
