2001 Suzuki LT-F250 Knuckle ARM Diagram

← All diagrams

Find the part on the Knuckle ARM diagram for your 2001 Suzuki LT-F250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

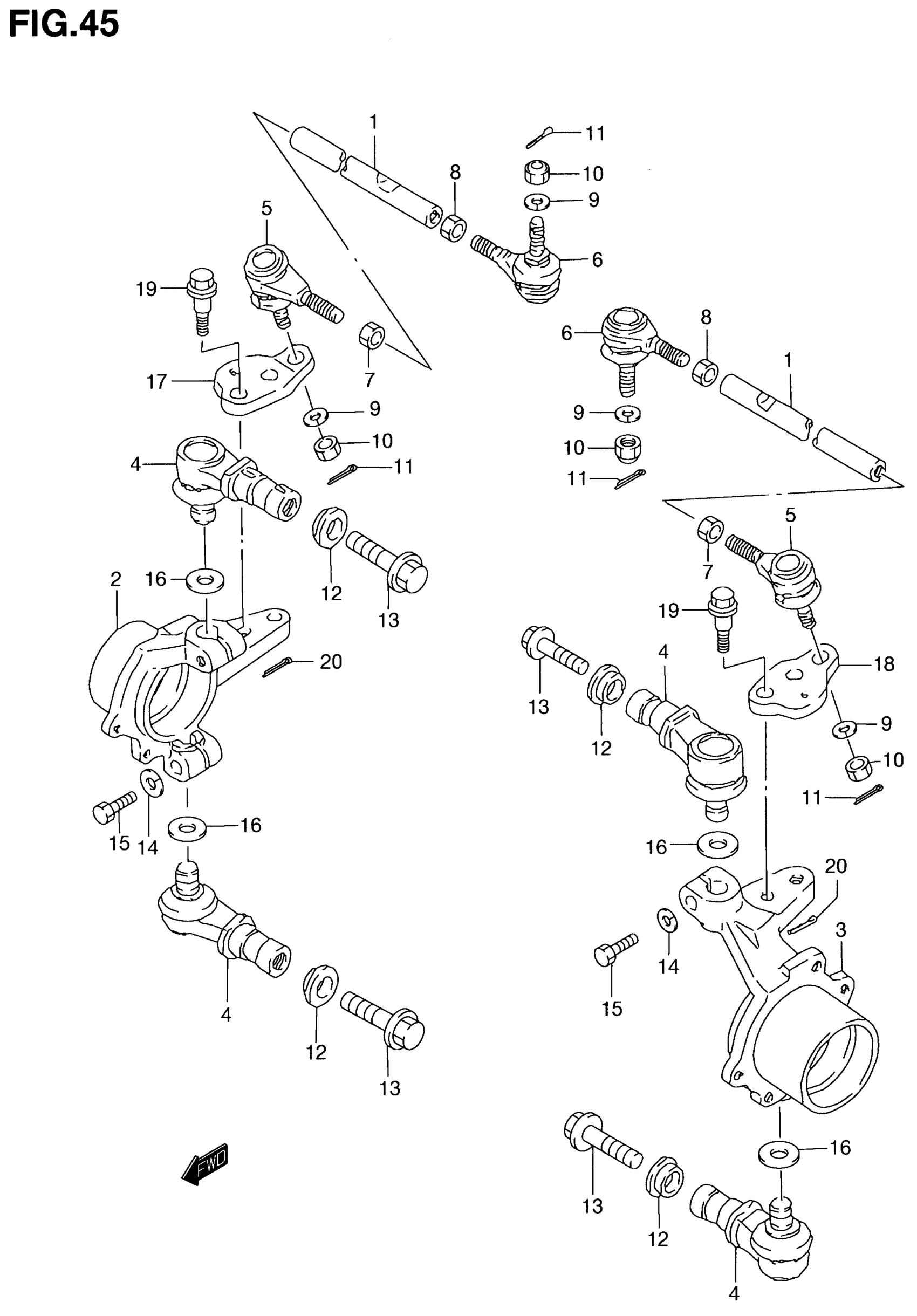

2001 Suzuki LT-F250 Knuckle ARM Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TIE ROD, STEERING

51281-20B00

2
Out of stock

2

KNUCKLE, STEERING RH

51231-19B01

1
Out of stock

3

KNUCKLE, STEERING LH

51241-19B01

1
Out of stock

4

4

$119.75

In stock

5

ROD, END RH This part replaces 51260-41B01.

51260-38F10

2
Out of stock

6

2

$91.67

In stock

7

NUT, TIE ROD (RH THREAD)

09140-10043

2
Out of stock

8

NUT, TIE ROD (LH THREAD)

09140-10027

2
Out of stock

9

LOCK WASHER, ROD END

09162-10008

4
Out of stock

10

4

$2.48

In stock

11

COTTER PIN This part replaces 04111-20208.

04111-2020A

4
Out of stock

12

4

$9.97

In stock

15

BOLT, KNUCKLE (10X32)

09100-10225

4

$3.98

In stock

16

4

$2.92

In stock

17

ARM, KNUCKLE STEERING RH

51232-20B00

1
Out of stock

18

ARM, KNUCKLE STEERING LH

51242-20B00

1
Out of stock

19

BOLT, ARM KNUCKLE STEERING (10X29.5)

09111-10044

4
Out of stock

20

COTTER PIN This part replaces 04111-20208.

04111-2020A

4
Out of stock
