1997 Suzuki LT-F250 Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 1997 Suzuki LT-F250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

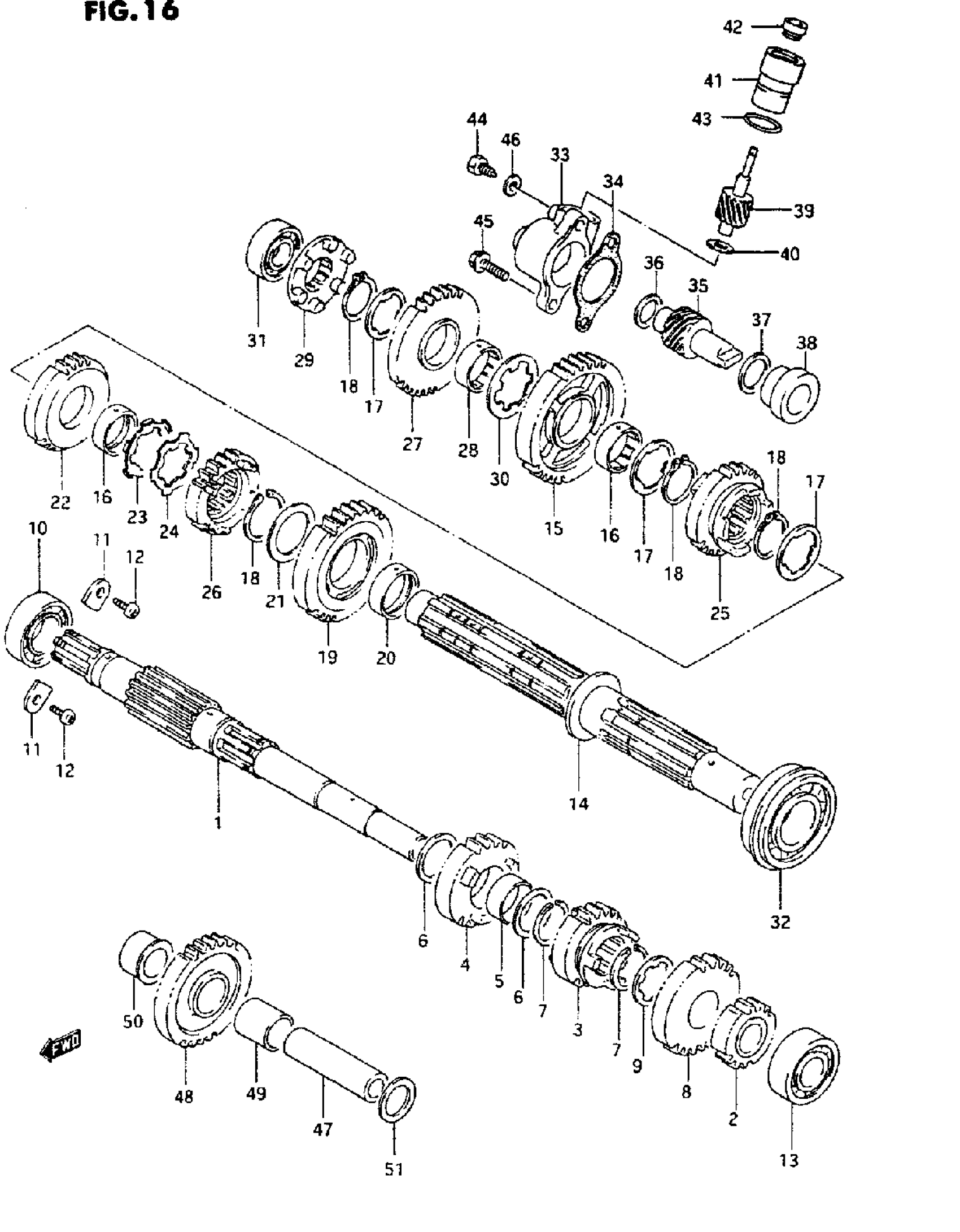

1997 Suzuki LT-F250 Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COUNTERSHAFT (NT:12) This part replaces 24121-19B01.

24121-19B10

1
Out of stock

2

GEAR, 2ND DRIVE (NT:15)

24221-18A00

1
Out of stock

3

GEAR,3RD DRIVE This part replaces 24231-18A01.

24231-18A03

1
Out of stock

4

GEAR, 4TH DRIVE (NT:21) This part replaces 24241-18A00.

24241-18A01

1
Out of stock

5

BUSH

09300-22008

1
Out of stock

6

WASHER (22X30XL.0)

09181-22167

2
Out of stock

7

CIRCLIP

09380-22006

2
Out of stock

8

GEAR, 5TH DRIVE (NT:23) This part replaces 24251-18A01.

24251-18A03

1
Out of stock

9

WASHER

09167-22013

1
Out of stock

10

BEARING, RH

09262-22018

1
Out of stock

11

RETAINER

24741-21A00

2
Out of stock

12

SCREW This part replaces 02112-06123.

02112-0612A

2
Out of stock

13

BEARING, MIDDLE

09267-17002

1
Out of stock

14

DRIVESHAFT This part replaces 24131-19B02.

24131-19B10

1
Out of stock

15

GEAR, 1ST DRIVEN (NT:37) This part replaces 24311-18A01.

24311-18A02

1
Out of stock

16

BUSH, 3RD DRIVEN GEAR This part replaces 24332-24500.

24332-24510

2
Out of stock

17

LOCK WASHER

09167-25016

3
Out of stock

18

SNAP RING

09380-25003

4
Out of stock

19

GEAR, 2ND DRIVEN (NT:29)

24321-18A01

1
Out of stock

20

BUSH

09300-25020

1
Out of stock

21

WASHER

08211-25351

1

$4.03

In stock

22

GEAR, 3RD DRIVEN (NT:25) This part replaces 24331-19B00.

24331-19B01

1
Out of stock

23

LOCI( WASHER

09169-25001

1
Out of stock

24

WASHER,LOCK (25.1X41X1.5)

09167-25013

1
Out of stock

25

GEAR, 4TH DRIVEN (NT:23) This part replaces 24341-18A01.

24341-18A02

1
Out of stock

26

GEAR, 5TH DRIVEN (NT:21) This part replaces 24351-18A01.

24351-18A02

1
Out of stock

27

GEAR, REVERSE DRIVEN (NT:34)

24571-18A02

1
Out of stock

28

BUSH,REVERSE DRIVEN GEAR

24333-18A00

1
Out of stock

29

DOG

24581-18A00

1
Out of stock

30

WASHER

09167-25017

1
Out of stock

31

BEARING, RH

09262-17026

1
Out of stock

32

BEARING, MIDDLE

09262-25085

1
Out of stock

33

HOUSING, ODOMETER GEAR

26441-19B01

1
Out of stock

34

GASKET This part replaces 26451-19B11.

26451-19B12

1
Out of stock

35

GEAR. ODOMETER DRIVE (NT:10)

26461-19B00

1
Out of stock

36

WASHER, RH (15X20X1.0)

09181-15111

1
Out of stock

37

WASHER, LH (17X24X1.0)

09181-17139

1
Out of stock

38

SPACER

26481-19B00

1
Out of stock

39

GEAR, ODOMETER DRIVEN (NT:14)

26471-19B00

1
Out of stock

40

WASHER

08211-08151

1
Out of stock

41

SLEEVE

26442-19B00

1
Out of stock

42

OIL SEAL

09289-05002

1
Out of stock

43

0 RING (0:1.9, ID:16.6)

09280-17004

1
Out of stock

44

BOLT (6X10) This part replaces 09135-06013.

09135-06501

1
Out of stock

45

..BOLT This part replaces 01547-06203.

01547-0620B

2
Out of stock

46

WASHER (6.2X11X1.2)

09168-06004

1
Out of stock

47

SHAFT, REVERSE IDLE

24551-19B00

1
Out of stock

48

GEAR, REVERSE IDLE (NT:29)

24561-19B00

1
Out of stock

49

BUSH

09300-17010

1
Out of stock

50

SPACER

24562-19B00

1
Out of stock

51

WASHER (17X28X1.0)

09181-17195

1
Out of stock
