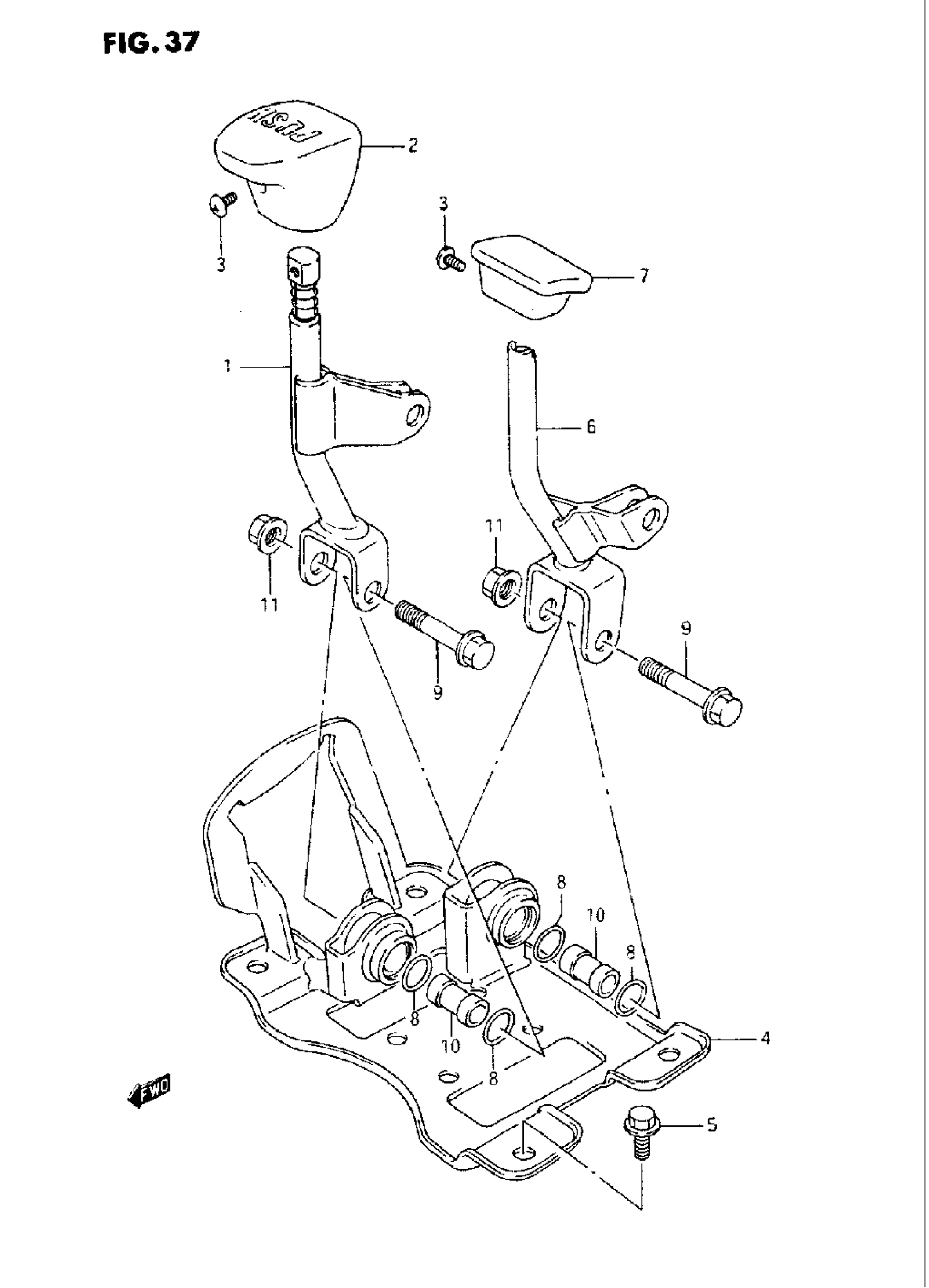

Suzuki LT-F250 (1997) TRANSMISSION LEVER Diagram

#

Description

Price

1

LEVER SET, SUB T/M SHIFT

57900-20840

Unavailable

2

KNOB,SHIFT LEVE This part replaces 57980-19B01-26A.

57980-19B02-26A

Unavailable

3

SCREW This part replaces 02142-04083.

02142-0408B

$1.71

4

PLATE, SHIFT LEVER

57940-20B00

Unavailable

5

BOLT This part replaces 01550-06103.

01550-0610A

$1.97

6

LEVER, REVERSE

57970-19B01

$46.98

7

KNOB,REVERSE CA This part replaces 58860-19B00-30D.

58860-19B01-30D

$8.33

8

0 RING, SHIFT LEVER PIVOT

09280-12001

$3.25

9

BOLT, SHIFT LEVER PIVOT

09103-08004

$2.77

10

SPACER, SHIFT LEVER PIVOT

09180-08139

Unavailable

11

NUT This part replaces 08316-10083.

08316-1008B

$2.65
