1997 Suzuki LT-F250 Transmission Diagram

← All diagrams

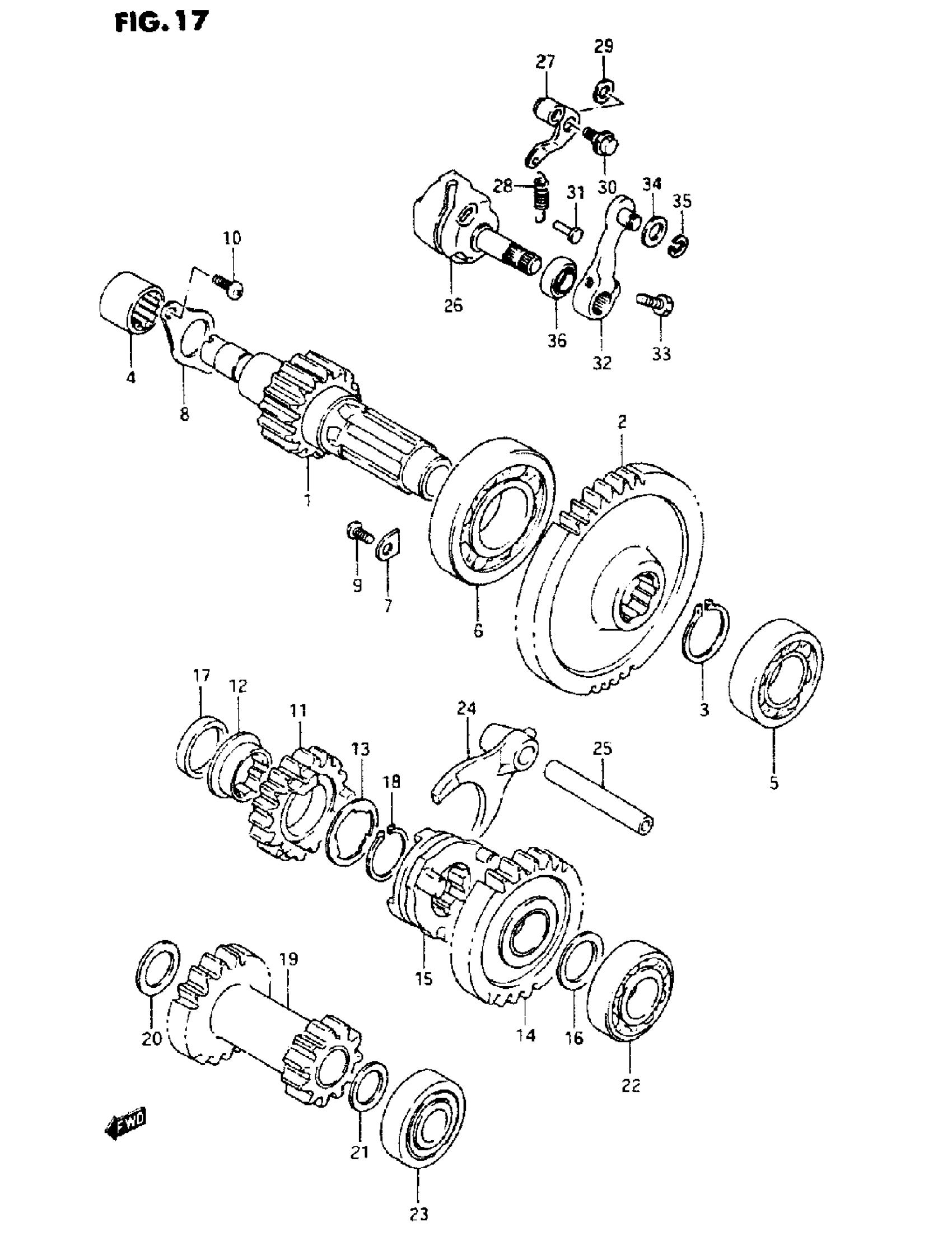

Find the part on the Transmission diagram for your 1997 Suzuki LT-F250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1997 Suzuki LT-F250 Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT, SUB TRANSMISSION

29121-20B00

1
Out of stock

2

MAR, DRIVEN NO.1 (NT:43)

29311-20B00

1
Out of stock

3

CIRCLIP This part replaces 08331-31326.

08331-3132A

1
Out of stock

4

HEARING, RH

09263-18023

1
Out of stock

5

BEARING, LH

09262-25003

1
Out of stock

6

BEARING, MIDDLE (35X72X17)

09262-35038

1
Out of stock

7

RETAINER

24741-21A00

2
Out of stock

8

RETAINER

24751-19B00

1
Out of stock

9

SCREW This part replaces 02112-06123.

02112-0612A

2
Out of stock

10

SCREW This part replaces 02112-06163.

02112-0616A

2
Out of stock

11

GEAR, DRIVE NO.1 (NT:18) This part replaces 29211-19B00.

29211-19B01

1
Out of stock

12

BUSH This part replaces 29215-19B00.

29215-19B01

1
Out of stock

13

WASHER

09167-25016

1
Out of stock

14

GEAR, DRIVE NO.2 (NT:25)

29220-19B00

1
Out of stock

15

DOG, DRIVE GEAR

29231-19B00

1
Out of stock

16

WASHER (20X30X1.0)

09181-20195

1
Out of stock

17

SPACER (25X34X5.5)

09180-25083

1
Out of stock

18

SNAP RING

09380-25003

1
Out of stock

19

MAR, IDLE (NT:17/11)

29150-19B10

1
Out of stock

20

WASHER (17X24X4.5)

09180-17076

1
Out of stock

21

WASHER (15X26X1.0)

09181-15195

1
Out of stock

22

BEARING, DRIVE SHAFT LH

09262-20069

1
Out of stock

23

BEARING This part replaces 09262-15022.

09262-15062

1
Out of stock

24

FORK, SUB TRANSMISSION

29511-19B00

1
Out of stock

25

SHAFT, NO.1 This part replaces 25421-35403.

25421-35410

1
Out of stock

26

CAM, SUB TRANSMISSION GEAR

29610-20B00

1
Out of stock

27

STOPPER

29630-19B00

1
Out of stock

28

SPRING

09443-09042

1
Out of stock

29

WASHER

08211-06141

1
Out of stock

30

BOLT (6X14.6)

09111-06054

1
Out of stock

31

PIN

09223-04001

1
Out of stock

32

ARM

25360-19B70

1
Out of stock

33

BOLT, GEAR SHIFT LINK This part replaces 01500-06203.

01500-0620A

1
Out of stock

34

WASHER This part replaces 08322-01083.

08322-0108A

1
Out of stock

35

CIRCLIP This part replaces 08332-11063.

08332-1106A

1
Out of stock

36

OIL SEAL (12X22X9)

09285-12006

1
Out of stock
