1997 Suzuki LT-F250 Crankcase Cover Diagram

← All diagrams

Find the part on the Crankcase Cover diagram for your 1997 Suzuki LT-F250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

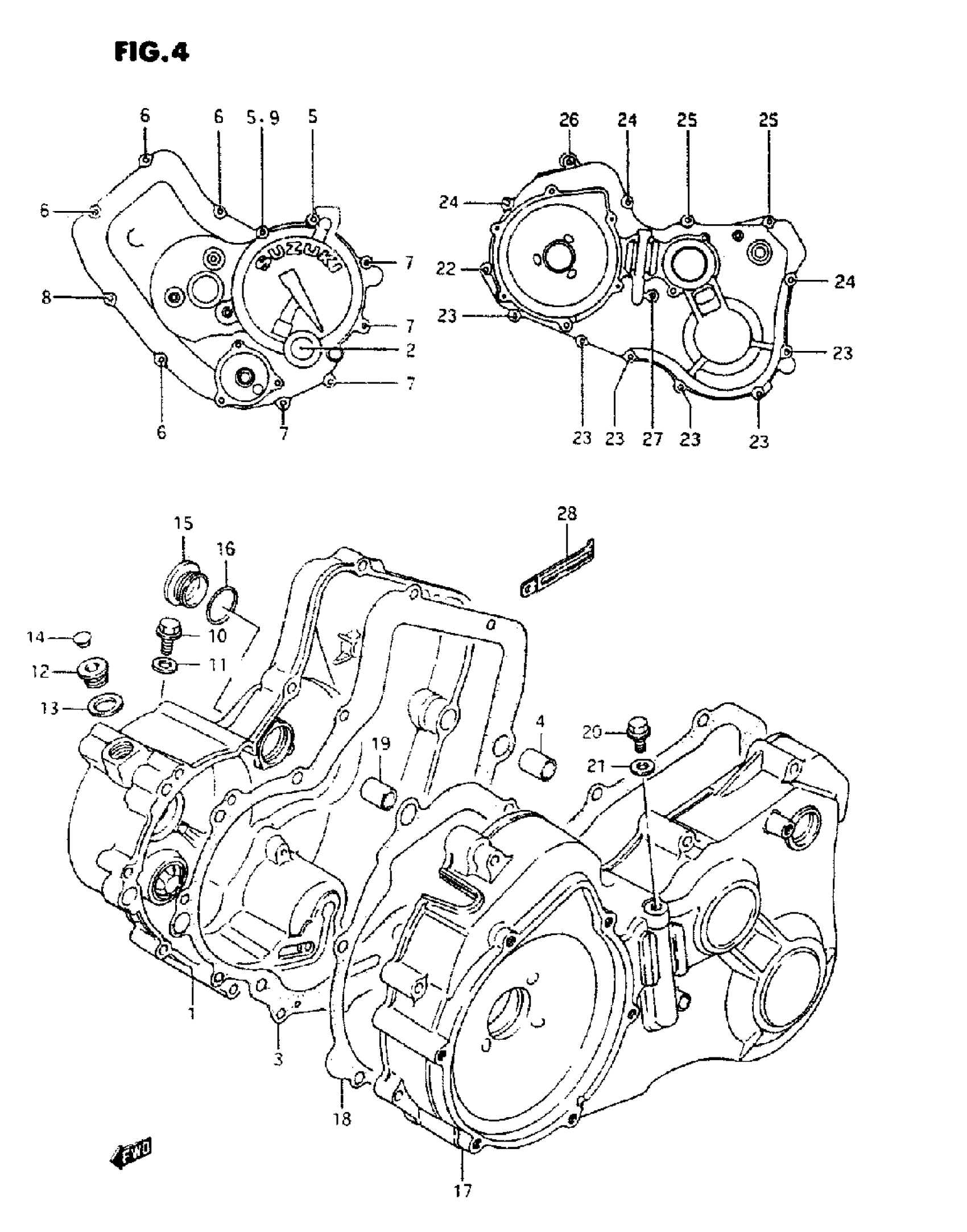

1997 Suzuki LT-F250 Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CLUTCH

11340-19B20

1
Out of stock

2

LENS, OIL CHECK

11971-33210

1

$18.15

In stock

3

1

$27.67

In stock

4

PIN (10.4XL3XL8)

04211-13189

2
Out of stock

5

BOLT (6XL00)

09103-06501

2

$4.53

In stock

6

4

$2.92

In stock

7

BOLT This part replaces 01547-06403.

01547-0640B

4
Out of stock

8

1

$2.92

In stock

9

GASKET

09168-06023

1
Out of stock

10

BOLT (8X12) This part replaces 01550-08123.

01550-0812A

2
Out of stock

11

GASKET

09168-08015

2

$2.92

In stock

12

PLUG, OIL DRAIN This part replaces 09248-16010.

09248-16012

1
Out of stock

13

GASKET

09168-16002

1
Out of stock

14

CAP

09250-08012

1

$2.35

In stock

15

CAP, CLUTCH ADJUST

09259-30005

1

$10.57

In stock

16

1

$2.91

In stock

17

COVER, TRANSFER This part replaces 11351-19B11.

11351-19B12

1
Out of stock

18

1

$29.00

In stock

19

PIN (10.4XL3XL8)

04211-13189

2
Out of stock

20

BOLT This part replaces 01550-06103.

01550-0610A

1
Out of stock

21

GASKET

09168-06023

1
Out of stock

22

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

1
Out of stock

23

6

$2.92

In stock

24

BOLT This part replaces 01547-06403.

01547-0640B

3
Out of stock

25

2

$2.92

In stock

26

1

$2.92

In stock

27

BOLT This part replaces 01547-06653.

01547-0665B

1
Out of stock

28

1

$1.89

In stock
