1997 Suzuki LT-F250 Cooling FAN Diagram

← All diagrams

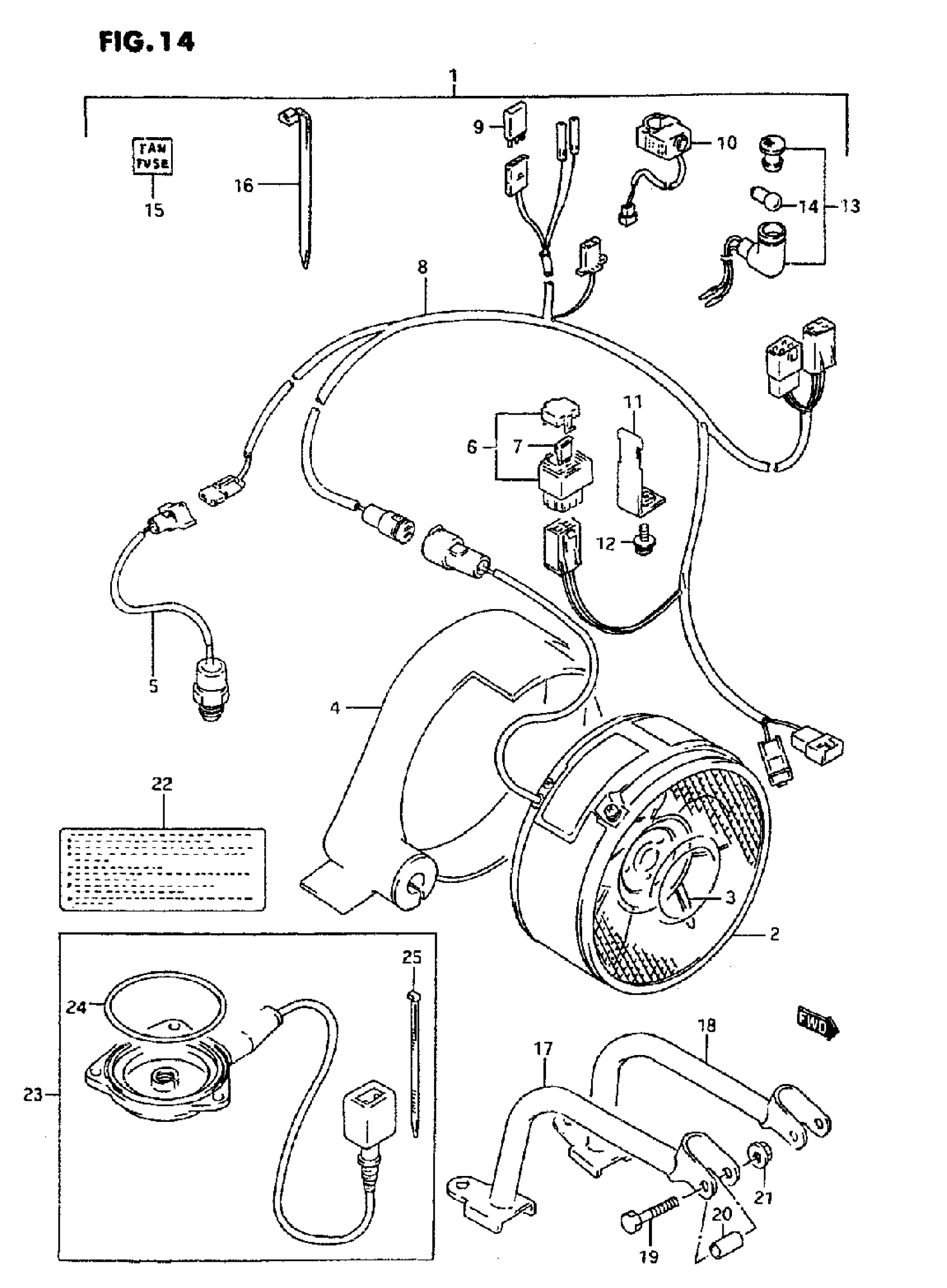

Find the part on the Cooling FAN diagram for your 1997 Suzuki LT-F250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1997 Suzuki LT-F250 Cooling FAN Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE This part replaces 17000-19850.

17000-19852

1
Out of stock

2

FAN ASSY, COOLING

17110-19B11

1
Out of stock

3

FAN

17820-19B10

1
Out of stock

4

BAND, COOLING FAN

17121-19B01

1
Out of stock

5

SWITCH, COOLING FAN

17680-19B70

1
Out of stock

6

BOX ASSY, FUSE

36740-24510

1
Out of stock

7

FUSE (10A)

09481-10101

1
Out of stock

8

LEAD WIRE

36610-19B70

1
Out of stock

9

.DIODE This part replaces 36611-38A00.

36611-38A10

1
Out of stock

10

SWITCH ASSY, MANUAL

37910-19B10

1
Out of stock

11

BRACKET, COOLING FAN FUSE

38620-04570

1
Out of stock

12

1

$3.05

In stock

13

LAW ASSY, FAN WARNING

36360-19B10

1
Out of stock

14

BULB (12V, 3.4W)

09471-12001

1

$2.08

In stock

15

LABEL, FAN WARNING

36367-19B00

1
Out of stock

16

CLAW (L:125)

09407-14403

3
Out of stock

17

TUBE. COOLING FAN RH

41970-19B20

1
Out of stock

18

TUBE, COOLING FAN LH

41980-19B21

1
Out of stock

19

BOLT (8X35) This part replaces 01550-08353.

01550-0835A

2
Out of stock

20

SPACER (L:19)

09180-08067

2
Out of stock

21

NUT This part replaces 08316-10083.

08316-1008B

2
Out of stock

22

LABEL, CAUTION (GREEN)

68341-19B01-E5Z

1
Out of stock

23

HEATER SET, ENGINE

16900-19810

1
Out of stock

24

0 RING

09280-82001

1

$5.01

In stock

25

CLAMP

09407-14403

5
Out of stock
