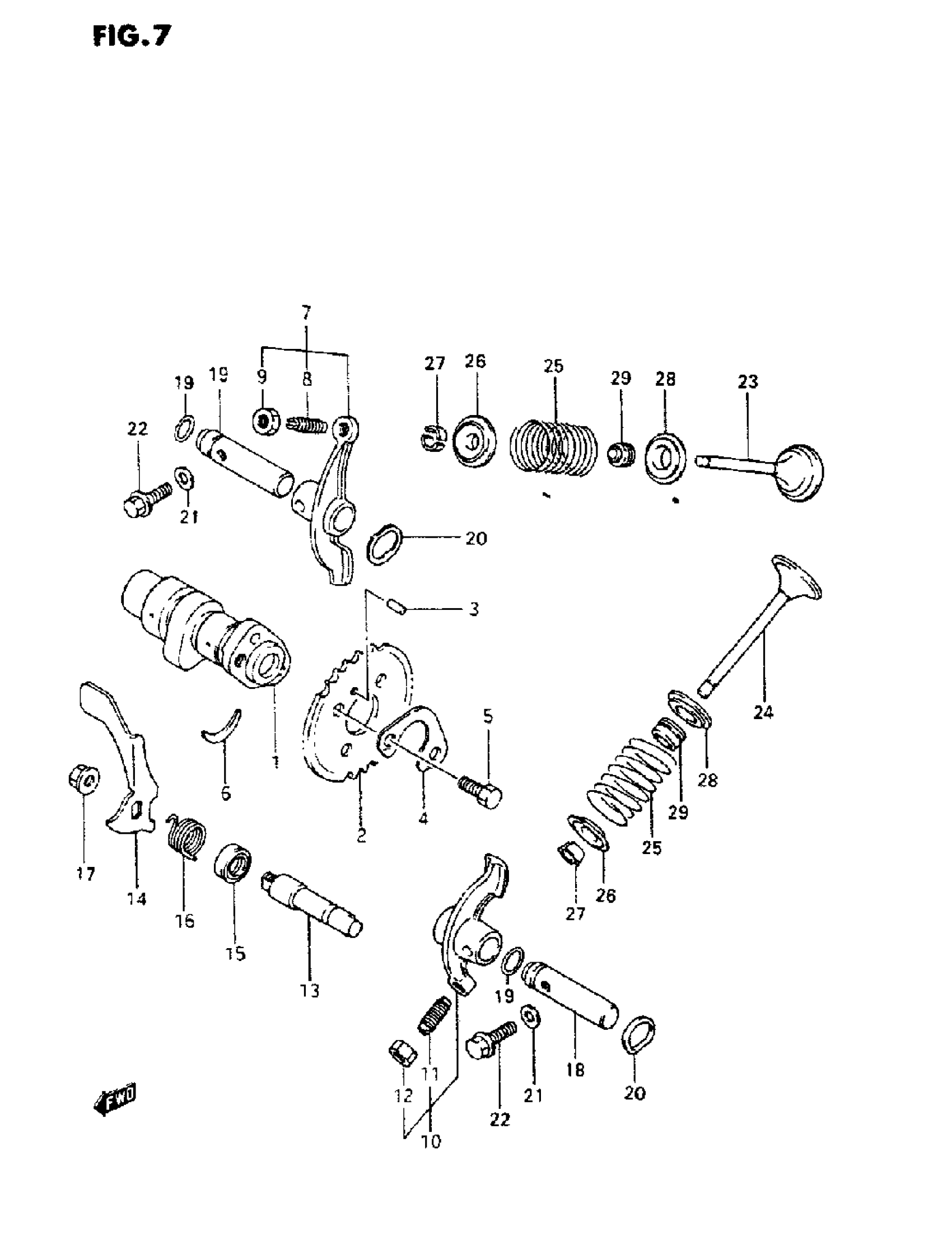

Suzuki LT-F250 (1997) CAM SHAFT - VALVE Diagram

#

Description
Price

1

CAM SHAFT

12711-18A00

$203.53

2

SPROCKET, CAMSHAFT (NT:32)

12741-05201

$25.93

3

PIN

09261-05005

$1.43

4

WASHER, SPROCKET This part replaces 12747-05201.

12747-05202

$2.53

5

BOLT (6XL0.5)

09111-06032

$2.12

6

C-RING

09390-22002

$2.33

7

ARM ASSY, VALVE ROCKER

12850-25C00

$39.51

8

.SCREW, TAPPET ADJUSTING

12842-32411

$4.93

9

.NUT, ADJUSTING SCREW

12843-32400

$2.80

10

ARM ASSY, VALVE ROCKER

12850-25C00

$39.51

11

.SCREW, TAPPET ADJUSTING

12842-32411

$4.93

12

.NUT, ADJUSTING SCREW

12843-32400

$2.80

13

SHAFT, DECOMP

12941-19B00

$33.02

14

LEVER, DECOMP SHAFT

12942-19B01

$6.32

15

OIL SEAL (10XL7X6)

09282-10014

$6.04

16

SPRING

09448-17014

$4.42

17

NUT This part replaces 08316-10083.

08316-1008B

$2.65

18

SHAFT, VALVE ROCKER ARM

12861-05201

$22.25

19

.O RING (D:1.9,ID:8.6)

09280-09005

$3.33

20

WASHER

09164-12021

$2.01

21

GASKET

09168-06023

$2.01

22

BOLT This part replaces 01550-06253.

01550-0625A

$1.97

23

VALVE, INTAKE

12911-19B00

$37.16

24

VALVE, EXHAUST

12912-18A00

$58.48

25

SPRING, VALVE

12921-19B00

$16.77

26

RETAINER, SPRING This part replaces 12931-19B00.

12931-19B01

$13.50

27

COTTER, VALVE

12932-24400

$1.98

28

SEAT, SPRING

12933-19B00

$9.37

29

OIL SEAL (5.5XLLX8.2)

09289-05015

$6.04
