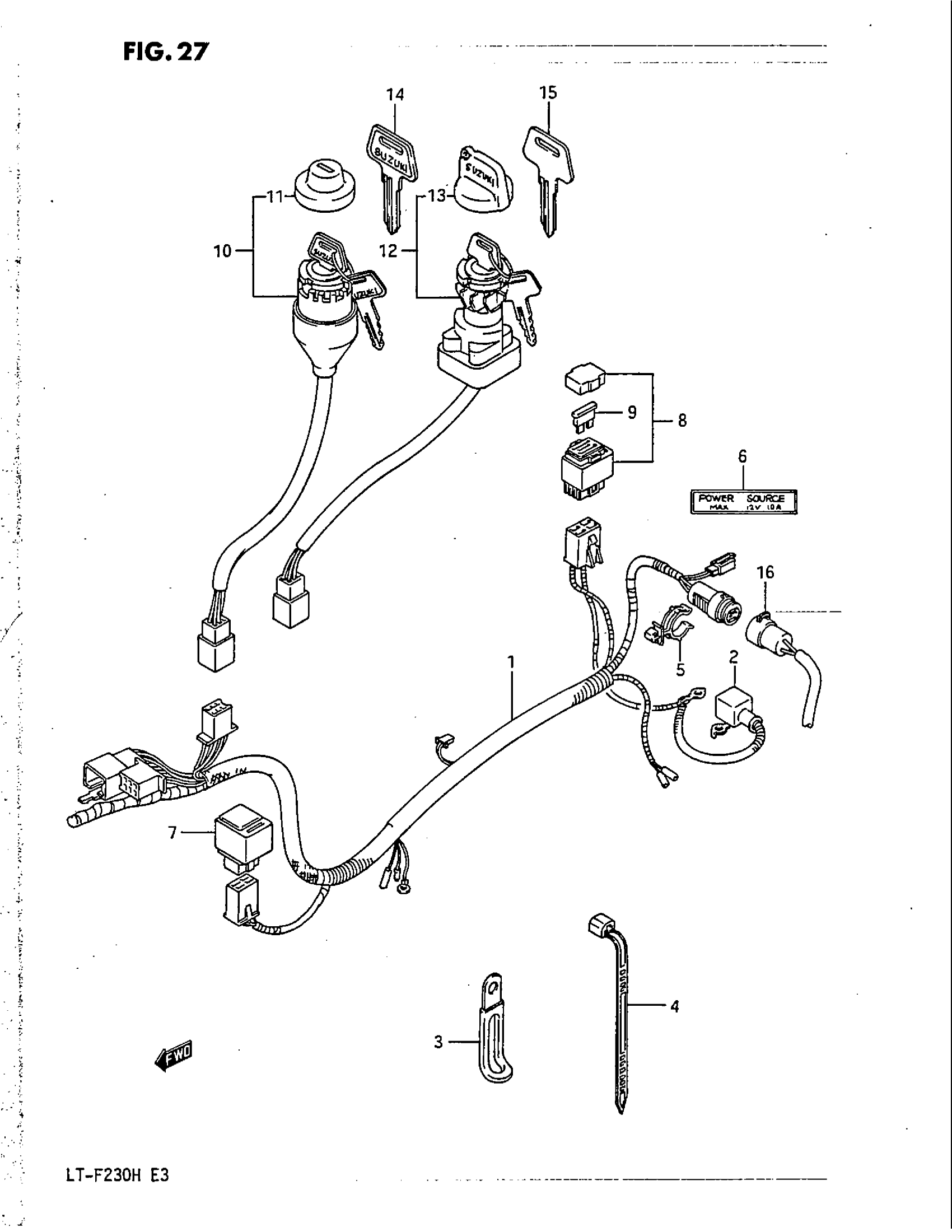

Suzuki LT-F230 (1987) WIRING HARNESS Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 This part replaces 36610-18B00.

36610-18B10

Unavailable

2

CAP, BATTERY PLUS This part replaces 33624-24500.

33624-35B00

$7.23

3

CLAMP This part replaces 09404-06402.

09404-06039

$1.73

4

CLAMP (L:95)

09407-11401

$2.87

4

CLAMP (L:125)

09407-14403

$2.24

4

CLAMP (L:185)

09407-18402

$2.21

5

CLAMP

09403-16402

Unavailable

6

LABEL, POWER SOURCE

38852-18B00

Unavailable

7

RELAY ASSY, SIDE STAND This part replaces 38730-24500.

38740-24X50

$41.38

8

BOX ASSY, FUSE | Includes Item(s) 9

36740-04701

$25.08

9

FUSE (15A)

09481-15101

$2.77

10

SWITCH ASSY,IGN | Includes Item(s) 11 This part replaces 37110-24501.

37110-24511

Unavailable

11

CAP

37921-24500

Unavailable

12

SWITCH ASSY,IGN | Includes Item(s) 13 This part replaces 37110-24510.

37110-24511

Unavailable

13

.MASCOT,KEY This part replaces 37142-19B00.

37142-19B01

$4.56

14

KEY, BLANK | OPT This part replaces 37146-24500.

37146-03A00

$9.32

14

KEY, BLANK | OPT This part replaces 37146-24510.

37146-03A10

$13.13

15

KEY,BLANK (TYPE:C) | OPT

37146-19B00

$7.38

15

KEY,BLANK (TYPE:D) | OPT

37146-19B10

$7.38

16

PLUG ASSY, POWER SOURCE | OPT

39602-18A00

Unavailable
