1987 Suzuki LT-F230 Headlamp Diagram

← All diagrams

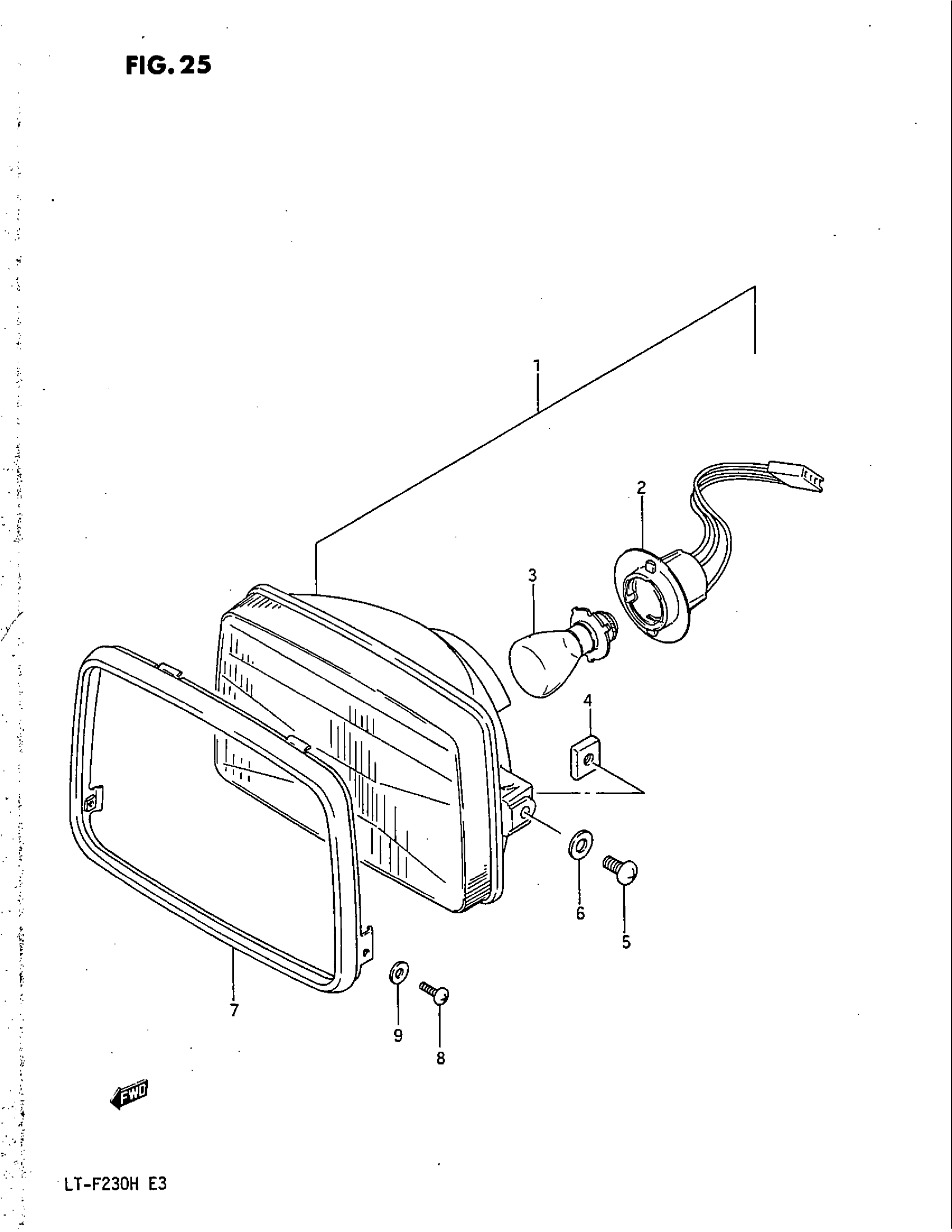

Find the part on the Headlamp diagram for your 1987 Suzuki LT-F230, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Suzuki LT-F230 Headlamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLAMP ASSY | Includes Item(s) 2 - 4 This part replaces 35100-18A01.

35100-18A11

1
Out of stock

2

SOCKET This part replaces 35171-18A00.

35171-18A01

1
Out of stock

3

BULB (12V,45/45W)

09471-12080

1
Out of stock

4

NUT

35135-35400

2
Out of stock

5

SCREW, THROTTLE This part replaces 02112-05105.

02112-0510A

2
Out of stock

6

2

$1.97

In stock

7

RIM

35111-18A00

1
Out of stock

8

SCREW This part replaces 02112-04105.

02112-3410A

2
Out of stock

9

WASHER This part replaces 08322-21045.

08322-0104A

2
Out of stock
