1987 Suzuki LT-F230 Carrier Diagram

← All diagrams

Find the part on the Carrier diagram for your 1987 Suzuki LT-F230, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

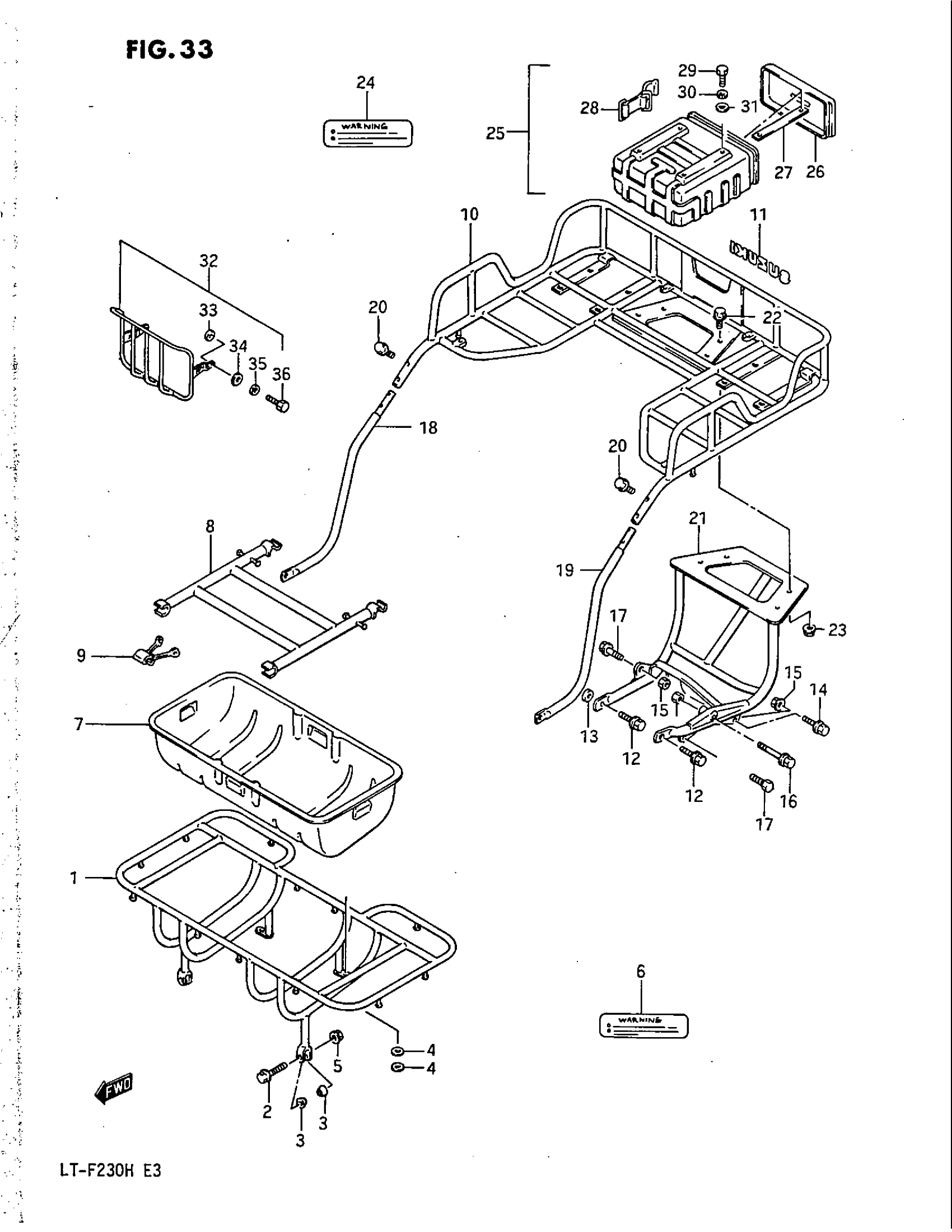

1987 Suzuki LT-F230 Carrier Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARRIER, FRONT

46410-18B00

1
Out of stock

2

2

$4.35

In stock

3

SPACER

46441-24451

4
Out of stock

4

WASHER (10.5X22X3.2) This part replaces 09160-10075.

09160-10125

4
Out of stock

5

2

$2.85

In stock

6

LABEL, FRONT CARRIER

68381-18A20

1
Out of stock

7

PAN, FRONT CARRIER | OPT

92122-18A00

1
Out of stock

8

CARRIER, FRONT SUB

46340-24450

1
Out of stock

9

BAND

09462-00083

2
Out of stock

10

CARRIER, REAR | MODEL G This part replaces 46310-18A50.

46310-18A51

1
Out of stock

10

CARRIER, REAR | MODEL H

46310-18A51

1
Out of stock

11

EMBLEM (WHITE)

68111-46700-064

1
Out of stock

12

2

$3.51

In stock

13

SPACER

09180-10100

2
Out of stock

14

BOLT, REAR RH

09103-08065

1
Out of stock

15

NUT

08319-31087

2

$2.48

In stock

16

BOLT, REAR CARRIER REAR LH

09103-08181

1
Out of stock

17

2

$3.90

In stock

18

LEG, REAR CARRIER RH

46360-18B00

1
Out of stock

19

LEG, REAR CARRIER LH

46370-18B00

1
Out of stock

20

BOLT This part replaces 01517-08304.

01550-0830A

4
Out of stock

21

SUB CARRIER, REAR

46380-18A51

1
Out of stock

22

4

$3.90

In stock

23

NUT This part replaces 08319-31085.

08319-3108A

4
Out of stock

24

LABEL, REAR CARRIER

68391-18900

1
Out of stock

25

BOX SET | Includes Item(s) 26 - 31

47400-24820

2
Out of stock

26

CAP, BOX

47432-24500

2
Out of stock

27

PLATE, BOX

47441-29500

4
Out of stock

28

BAND, BOX

44560-41300

2
Out of stock

29

BOLT This part replaces 01107-06125.

01500-0612A

8
Out of stock

30

8

$1.97

In stock

31

.WASHER This part replaces 08322-21064.

08322-0106B

8
Out of stock

32

GUARD SET, HEADLAMP | OPT; Includes Item(s) 33 - 36

48500-18830

1
Out of stock

33

SPACER | OPT

48519-18A00

2
Out of stock

34

4

$1.73

In stock

35

2

$2.28

In stock

36

2

$3.17

In stock
