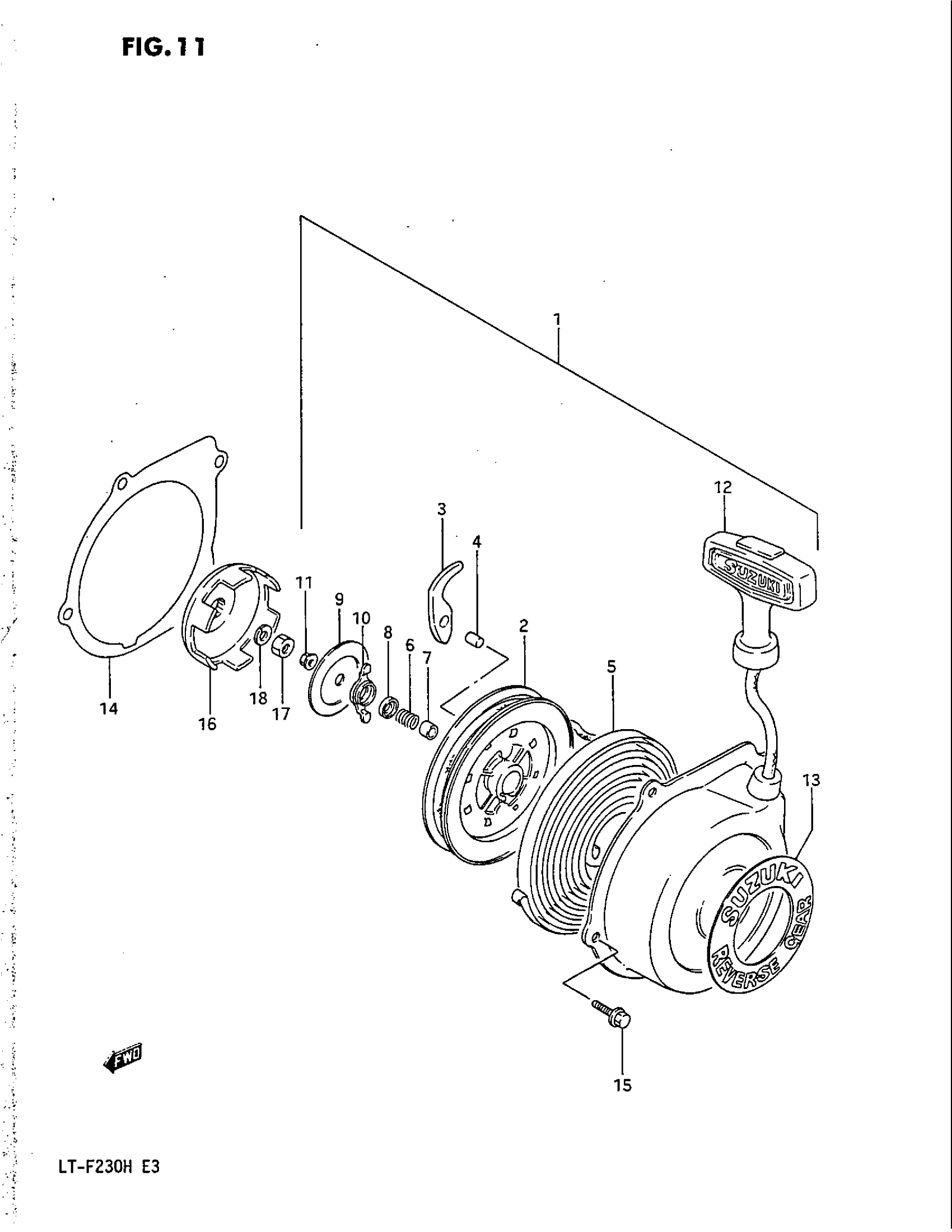

Suzuki LT-F230 (1987) RECOIL STARTER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL G This part replaces 18100-18A10.

18100-18A11

Unavailable

1

STARTER SET, RECOIL | MODEL H; Includes Item(s) 2 - 13 This part replaces 18100-35B00.

18000-02820

$199.05

2

REEL

18120-24400

$33.83

3

RATCHET

18131-24411

$9.17

4

PIN, RATCHET

18344-24400

Unavailable

5

.SPRING,SPIRAL

18142-24400

$27.09

6

SPRING, FRICTION

18153-24400

Unavailable

7

SHAFT, SUB

18176-24400

Unavailable

8

COVER, SPRING

18275-24400

Unavailable

9

RATCHET SET This part replaces 18151-24400.

18130-24400

$22.50

10

..GUIDE,RATCHET

18132-24400

$2.80

11

NUT This part replaces 18334-24400.

08316-1006B

$2.50

12

ROPE ASSY

18200-24400

$32.26

13

EMBLEM

68398-24410

$18.33

14

GASKET, RECOIL STARTER

18299-18A00

$6.00

15

BOLT, EXHAUST DRAIN This part replaces 01547-06125.

01547-06127

$1.67

16

CUP, STARTER

18411-18A03

Unavailable

17

NUT This part replaces 08310-12108.

08310-00107

$2.19

18

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.83
