1987 Suzuki LT-F230 Cooling Fan Diagram

← All diagrams

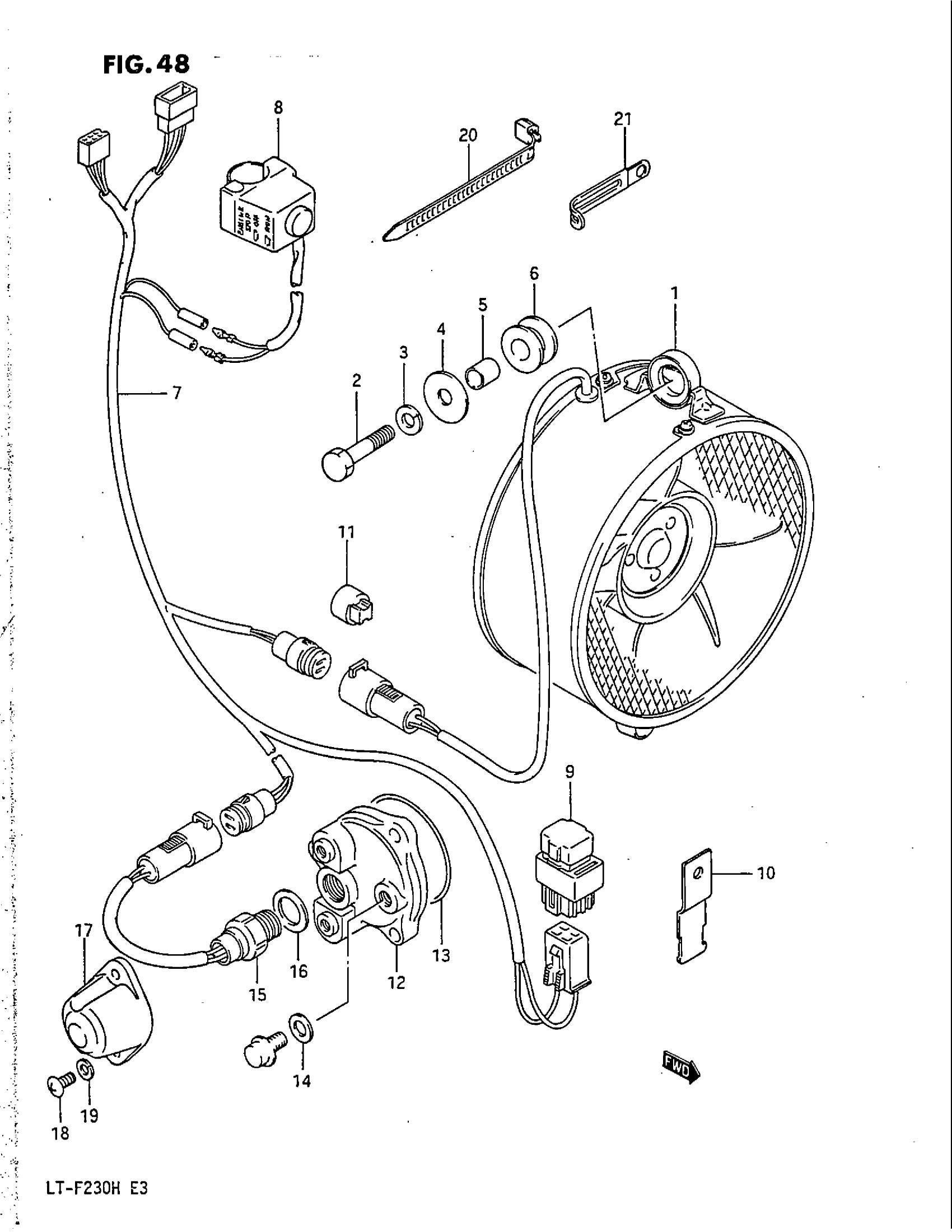

Find the part on the Cooling Fan diagram for your 1987 Suzuki LT-F230, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Suzuki LT-F230 Cooling Fan Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

FAN SET, COOLING | Includes Item(s) 1 - 21

17000-18830

1
Out of stock

1

FAN ASSY, COOLING

17100-18B00

1
Out of stock

2

BOLT This part replaces 01107-08355.

01500-0835B

2
Out of stock

3

2

$1.99

In stock

4

WASHER, EXHAUST SUPPORT This part replaces 09160-08057.

09160-08135

1
Out of stock

5

SPACER,8.5X12X1 This part replaces 09180-08133.

09180-08204

2
Out of stock

6

CUSHION This part replaces 09320-12038.

09320-12033

2
Out of stock

7

LEAD WIRE This part replaces 36856-18B00.

36856-18B10

1
Out of stock

8

NO DESCRIPTION AVAILABLE This part replaces 37910-18B00.

37910-19B00

1
Out of stock

9

BOX ASSY, FUSE

36740-24510

1
Out of stock

10

BRACKET, FUSE BOX

38621-41400

1
Out of stock

11

CAP, COUPLER

36634-93910

2

$5.32

In stock

12

CAP, OIL FILTER

16512-18B00

1
Out of stock

13

O RING, FILTER CAP

09280-54001

1
Out of stock

14

1

$2.92

In stock

15

SWITCH, COOLING FAN

17680-18B00

1
Out of stock

16

GASKET

09168-16003

1

$2.07

In stock

17

COVER, SWITCH

37821-43401

1
Out of stock

18

SCREW This part replaces 02112-06126.

02112-0612A

2
Out of stock

19

2

$1.97

In stock

20

CLAMP (L:95)

09407-11401

2
Out of stock

20

CLAMP (L:125)

09407-14403

2
Out of stock

21

CLAMP (L:60) This part replaces 09404-06422.

09404-06429

1
Out of stock
