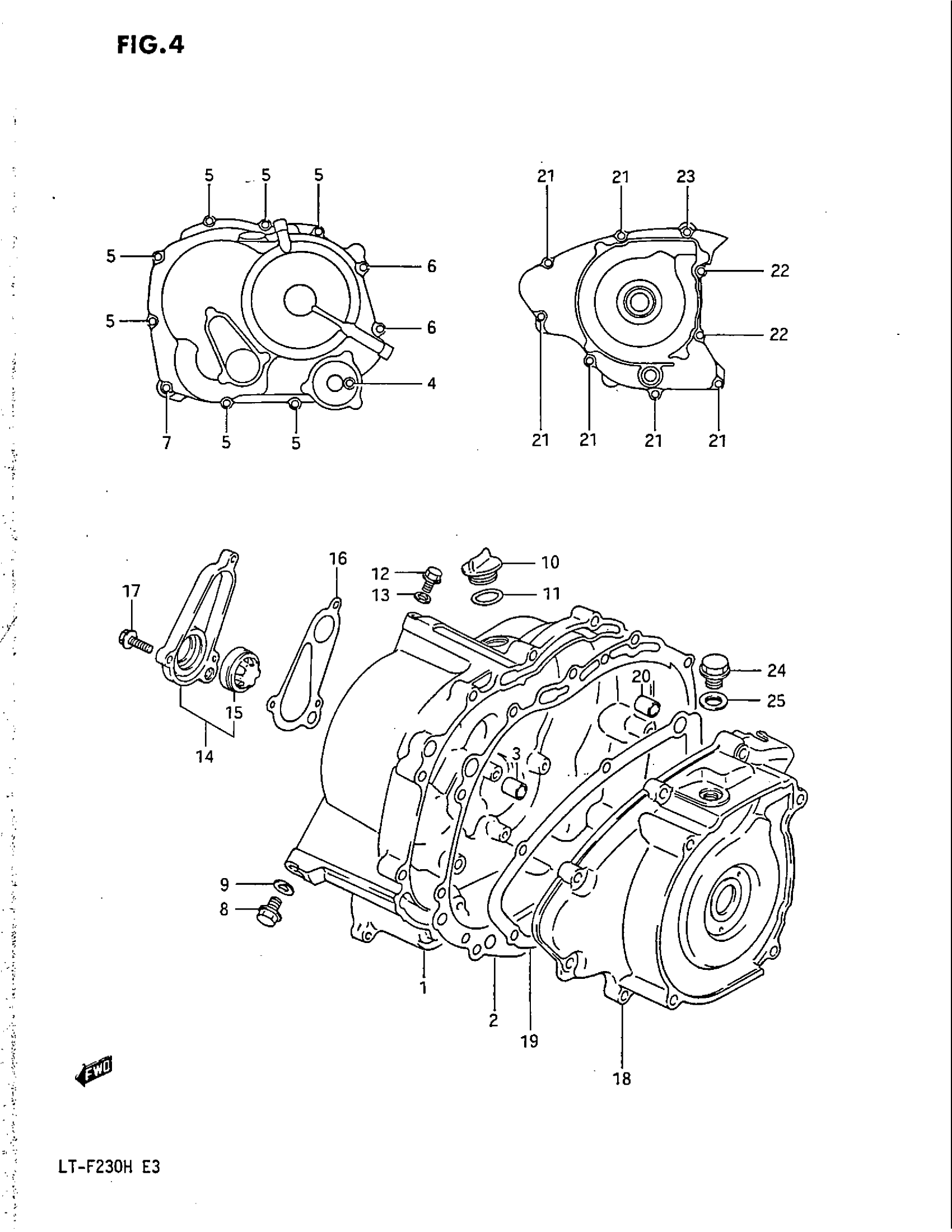

Suzuki LT-F230 (1987) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH | MODEL G This part replaces 11341-18A01.

11341-35B00

Unavailable

1

COVER, CLUTCH | MODEL H

11341-35B00

Unavailable

2

GASKET, CLUTCH COVER (NA) This part replaces 11482-18A01.

11482-02C10

$21.48

3

PIN This part replaces 09206-13001.

04211-13189

$2.25

4

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06254.

01547-0625B

$2.50

5

BOLT, WATER PUMP This part replaces 01547-06354.

01547-0635B

$2.80

6

BOLT (6X45)

01547-06457

$2.39

7

BOLT This part replaces 01547-06555.

01547-0655B

$2.80

8

BOLT (8X12) This part replaces 01517-08125.

01550-0812A

$2.38

9

GASKET

09168-08015

$2.80

10

.PLUG | MODEL G This part replaces 09259-20008.

09259-20008-XC0

$6.97

10

PLUG (20X10) | MODEL H This part replaces 09259-20013.

09259-20019

$10.92

11

O RING

09280-17003

$1.70

12

BOLT This part replaces 01517-06105.

01550-0610A

$2.01

13

GASKET (5.8X13X1.2) This part replaces 09168-06015.

09168-06023

$2.09

14

CAP, CLUTCH RELEASE ADJUST | MODEL G This part replaces 11410-18A02.

11410-18A10

Unavailable

14

CAP, CLUTCH RELEASE ADJUST | MODEL H; Includes Item(s) 15

11410-18A10

Unavailable

15

LENS, OIL LEVEL

11971-33210

$17.41

16

GASKET,CL RLSE This part replaces 11495-18A00.

11495-02C11

$7.67

17

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06254.

01547-0625B

$2.50

18

NO DESCRIPTION AVAILABLE | MODEL G This part replaces 11351-18A01.

11350-18810

Unavailable

18

COVER, GENERATOR | MODEL H

11351-35B01

Unavailable

19

GASKET, MAGNETO COVER (NA) This part replaces 11483-18A00.

11483-02C10

$10.95

20

PIN This part replaces 09206-13001.

04211-13189

$2.25

21

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06254.

01547-0625B

$2.50

22

BOLT, WATER PUMP This part replaces 01547-06354.

01547-0635B

$2.80

23

BOLT This part replaces 01547-06454.

01547-0645B

$2.80

24

PLUG, T.D.C

09247-14015

$4.83

25

GASKET

09168-14004

$1.69
