1987 Suzuki LT-F230 Seat Diagram

← All diagrams

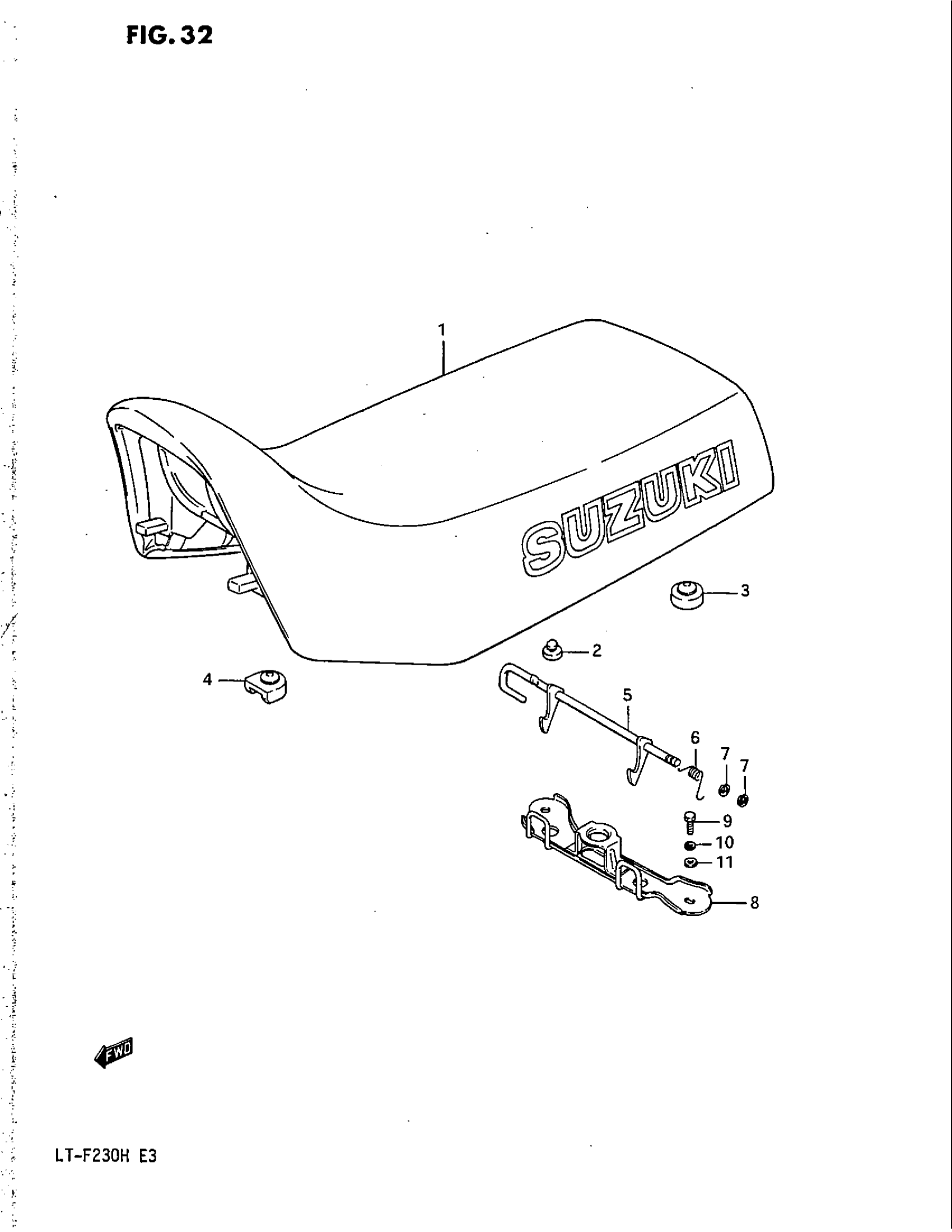

Find the part on the Seat diagram for your 1987 Suzuki LT-F230, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Suzuki LT-F230 Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEAT ASS'Y (BLACK) | MODEL G This part replaces 45100-18A01-58P.

45100-18A02-58P

1
Out of stock

1

SEAT ASSY (BLACK) | MODEL H; Includes Item(s) 2 - 7

45100-18A02-58P

1
Out of stock

2

CUSHION

09321-10001

2
Out of stock

3

CUSHION

45149-24302

2
Out of stock

4

CUSHION

45149-19A00

4
Out of stock

5

CLAMP, SEAT

45210-18A01

1
Out of stock

6

SPRING

45135-24500

1

$5.10

In stock

7

CIRCLIP This part replaces 08332-11066.

08332-1106A

2
Out of stock

8

PLATE, SEAT REAR HOOK

45230-18A00

1
Out of stock

9

BOLT This part replaces 01107-06166.

01500-0616A

2
Out of stock

10

2

$1.97

In stock

11

.WASHER This part replaces 08322-21066.

08322-0106B

2
Out of stock
