2001 Suzuki LT-F160 Recoil Starter Diagram

← All diagrams

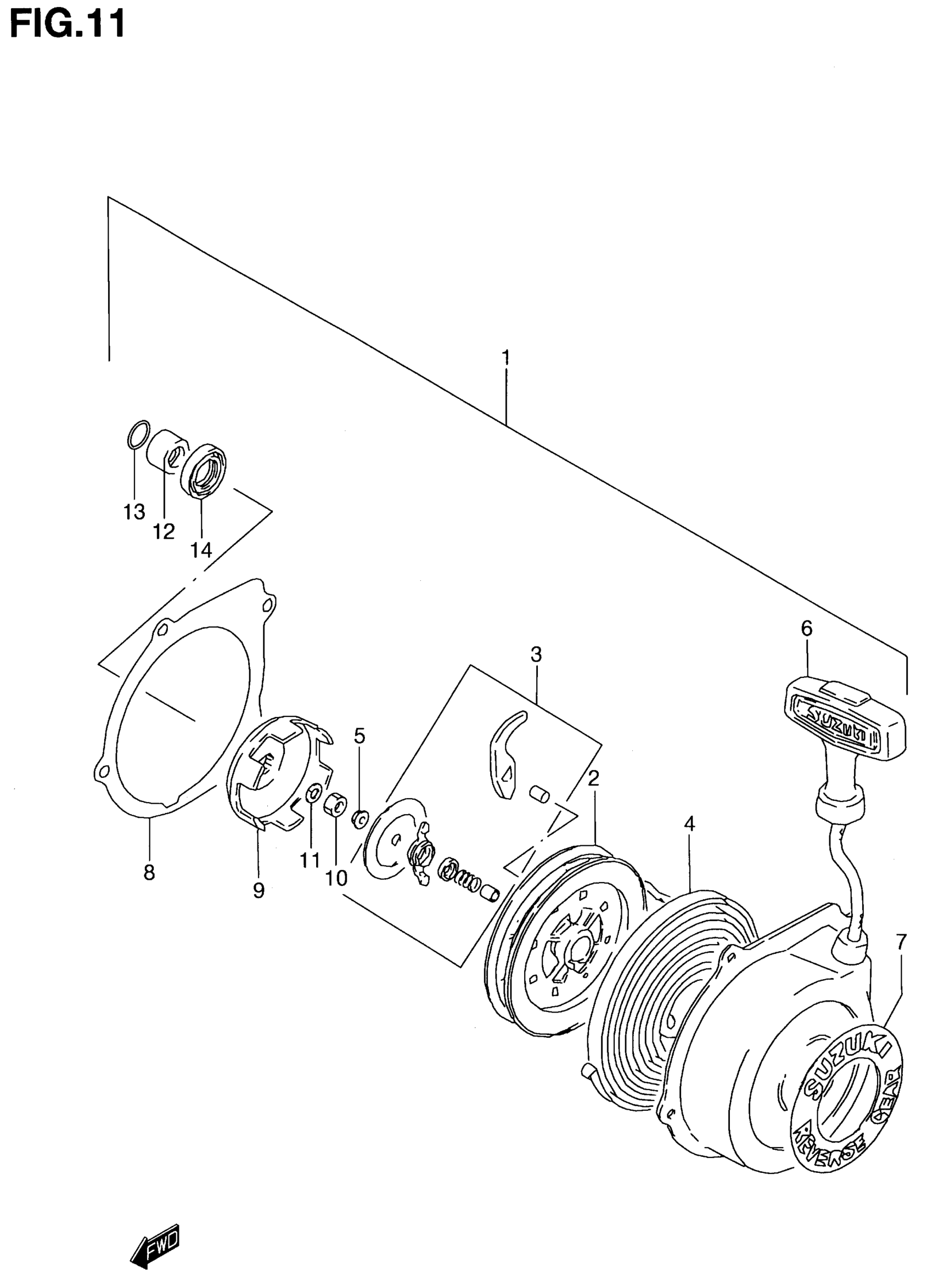

Find the part on the Recoil Starter diagram for your 2001 Suzuki LT-F160, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Suzuki LT-F160 Recoil Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

2

REEL

18120-24400

1

$36.85

In stock

3

RATCHET SET

18130-24400

1
Out of stock

4

.SPRING,SPIRAL

18142-24400

1
Out of stock

5

NUT This part replaces 08316-10063.

08316-1006B

1
Out of stock

6

ROPE ASSY

18200-24400

1

$35.14

In stock

7

EMBLEM

68398-24410

1

$18.33

In stock

8

1

$6.00

In stock

9

CUP, STARTER

18411-18A03

1
Out of stock

10

1

$2.02

In stock

11

1

$2.02

In stock

12

SPACER

12359-18A02

1

$23.08

In stock

13

O RING (D:1.9,ID:12.6)

09280-12009

1
Out of stock

14

OIL SEAL (22X35X7)

09289-22008

1

$22.57

In stock
