2001 Suzuki LT-F160 Crankshaft Diagram

← All diagrams

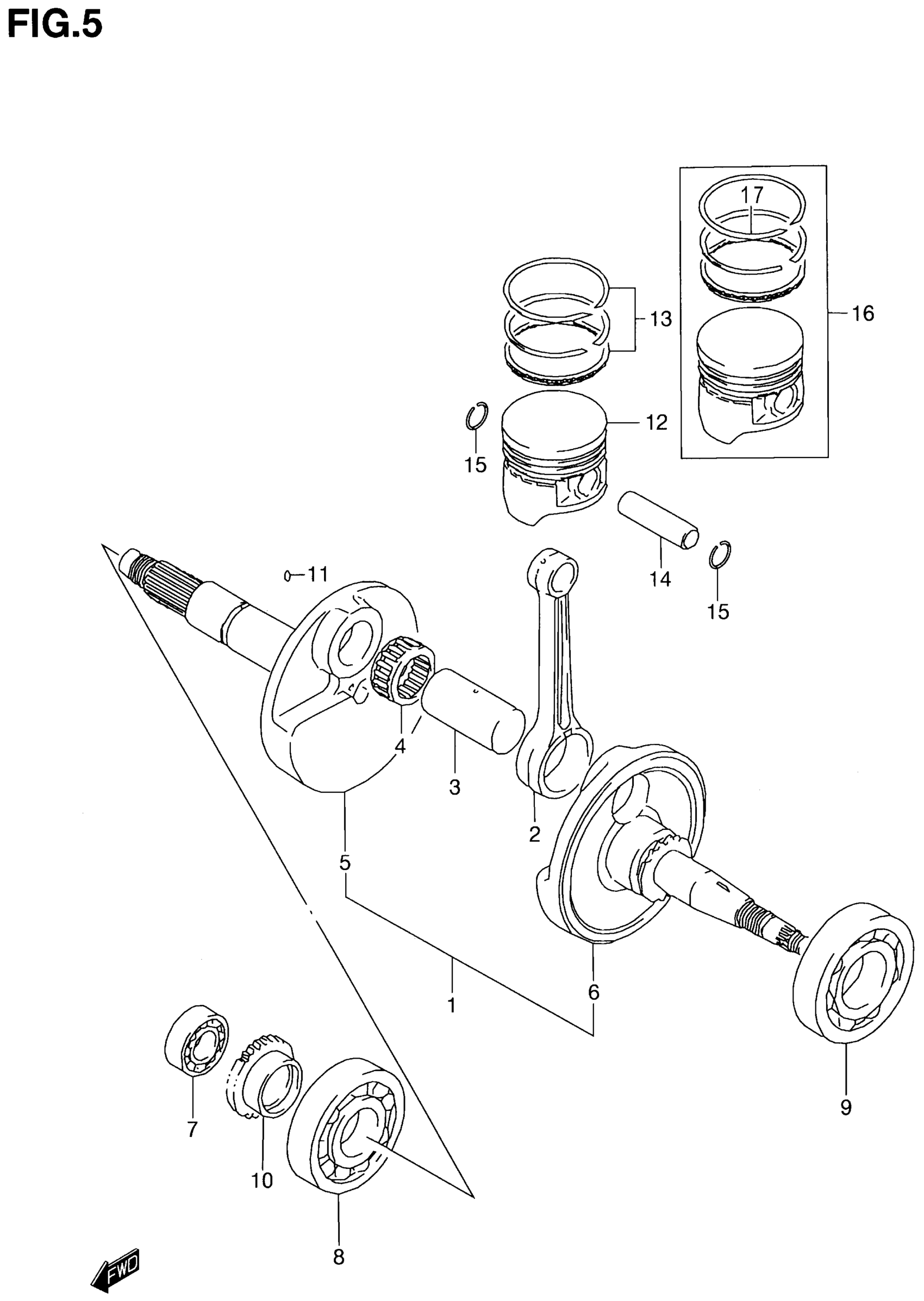

Find the part on the Crankshaft diagram for your 2001 Suzuki LT-F160, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Suzuki LT-F160 Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSY | Includes Item(s) 2 - 6

12200-02C00

1
Out of stock

2

ROD, CONNECTING

12161-02C00

1
Out of stock

3

.PIN, CRANK

12211-05231

1
Out of stock

4

BEARING (28X36X15.8)

09263-28027-0B0

1
Out of stock

5

CRANKSHAFT, RH

12221-02C00

1
Out of stock

6

CRANKSHAFT, LH

12261-02C00

1
Out of stock

7

BEARING, RH (15X35X11)

09262-15014

1
Out of stock

8

BEARING, MDL (28X68X18)

09262-28017

1
Out of stock

9

BEARING, LH (35X72X17)

09262-35045

1
Out of stock

10

GEAR, OIL PUMP DRIVE (NT:30)

16321-19B00

1
Out of stock

11

PIN (4X13.8)

04221-04089

1
Out of stock

12

PISTON

12111-02C01-0F0

1
Out of stock

13

RING SET, PISTON (STD)

12140-02C10

1
Out of stock

13

RING SET, PISTON (OS:0.5) | OPT

12140-02C10-050

1
Out of stock

13

RING SET, PISTON (OS:1.0) | OPT

12140-02C10-100

1
Out of stock

14

PIN, PISTON

12151-18902

1
Out of stock

15

RING

09381-14001

2
Out of stock

16

PISTON SET (OS:0.5) | OPT

12100-02C00-050

1
Out of stock

16

PISTON SET (OS:1.0) | OPT

12100-02C00-100

1
Out of stock

17

RING SET (OS:0.5) | OPT

14140-02C10-050

—
Out of stock

17

RING SET (OS:1.0) | OPT

14140-02C10-100

—
Out of stock
