2001 Suzuki LT-F160 CAM Chain Diagram

← All diagrams

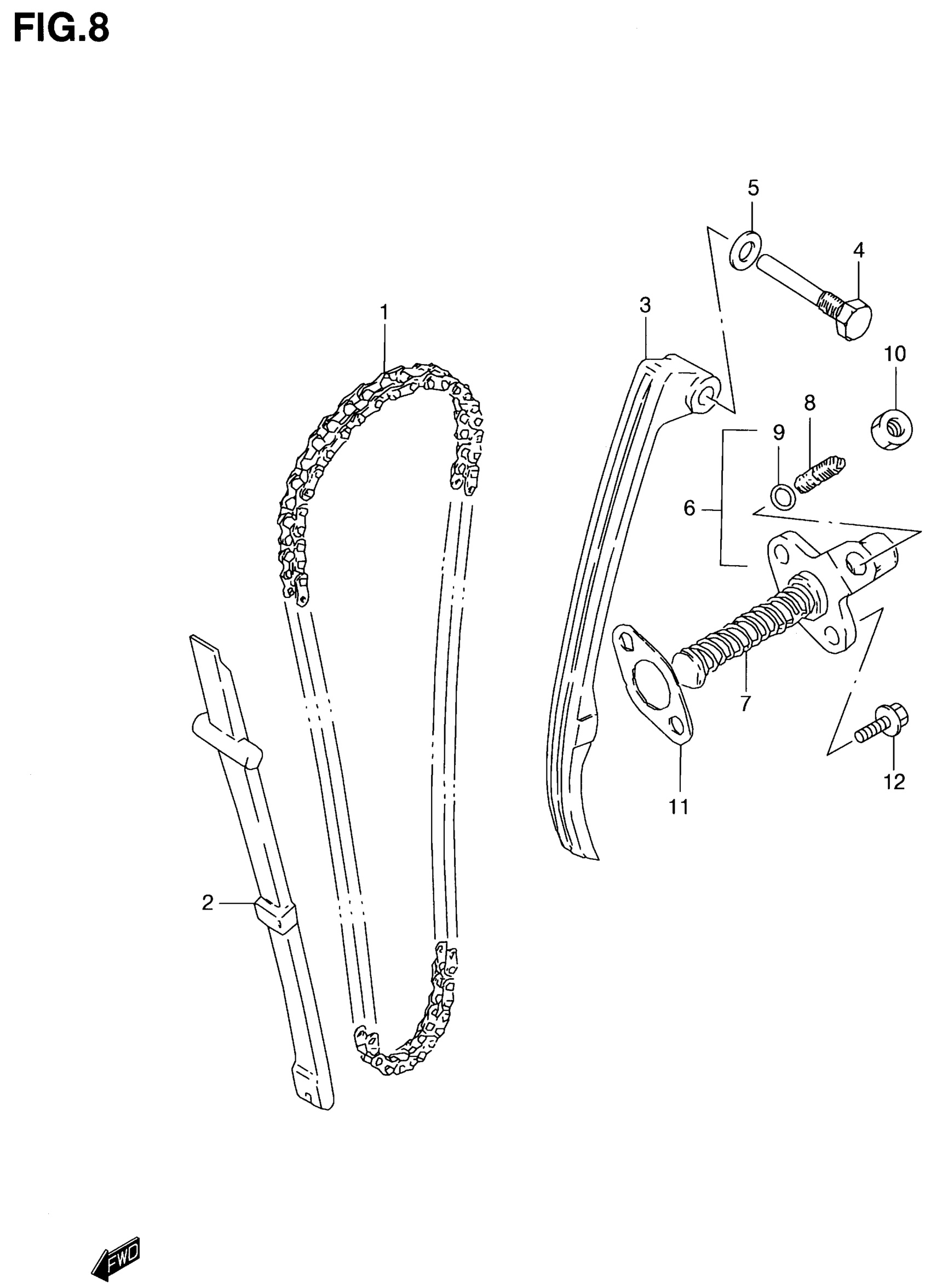

Find the part on the CAM Chain diagram for your 2001 Suzuki LT-F160, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Suzuki LT-F160 CAM Chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CHAIN, CAMSHAFT DRIVE (98LE)

12760-44A00

1
Out of stock

2

GUIDE, CAM CHAIN

12771-05200

1
Out of stock

3

TENSIONER, CAM CHAIN This part replaces 12811-05220.

12811-05221

1
Out of stock

4

BOLT, CAM CHAIN TENSIONER

12812-32400

1
Out of stock

5

GASKET (8.2X14X1) This part replaces 09168-08008.

09168-08016

1
Out of stock

6

ADJUSTER ASSY,T | Includes Item(s) 7 - 10 This part replaces 12830-32452.

12830-12FB0

1
Out of stock

7

SPRING

09440-11018

1
Out of stock

8

SCREW

12838-45001

1
Out of stock

9

.O RING (D:1.9,ID:5.7)

09280-06005

1
Out of stock

10

NUT This part replaces 08316-10083.

08316-1008B

1
Out of stock

11

.GASKET, TENSIONER ADJUSTER

12837-32410

1
Out of stock

12

BOLT, GEAR SHIFT LINK This part replaces 01500-06203.

01500-0620A

2
Out of stock
