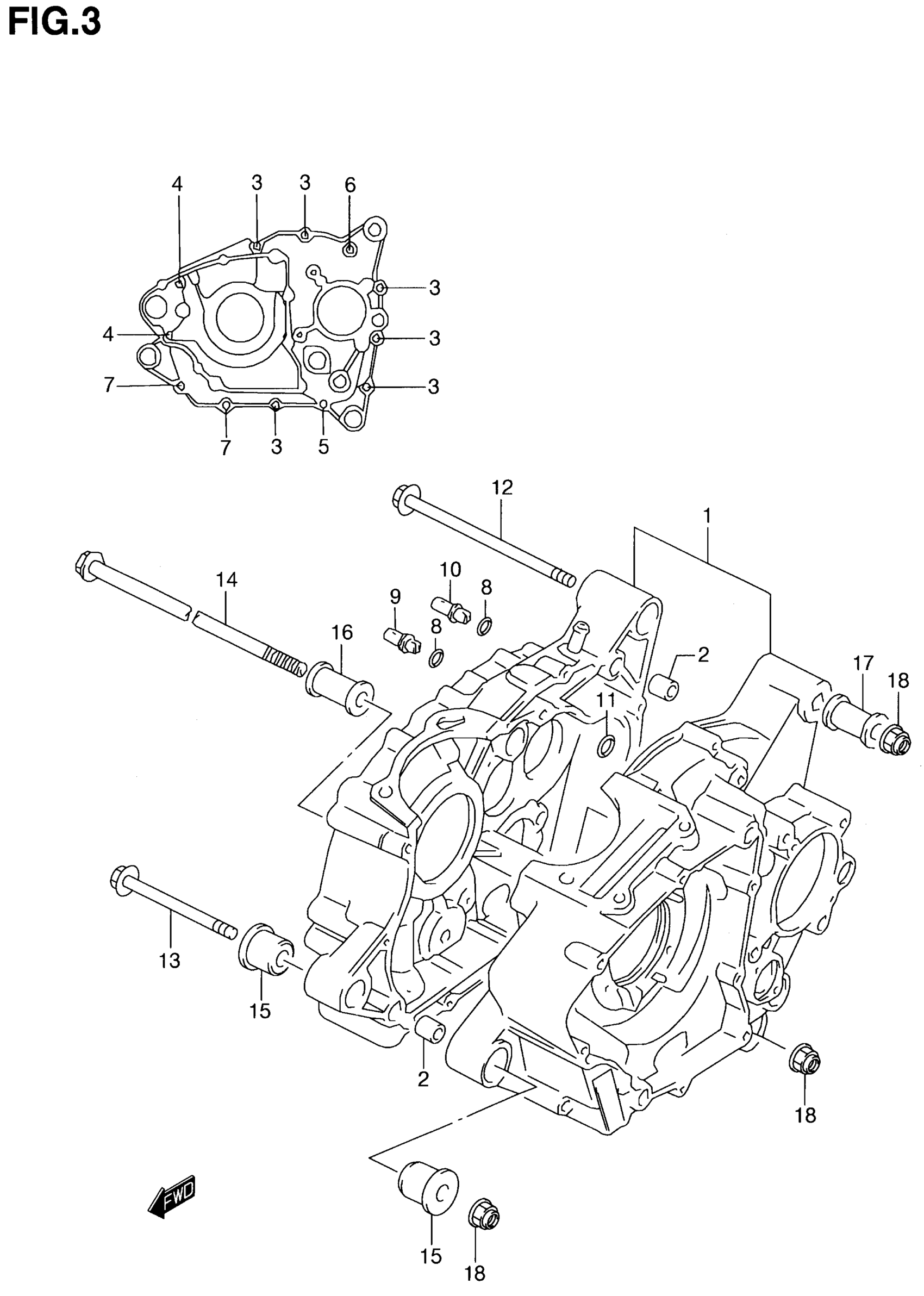

Suzuki LT-F160 (2001) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET

11301-35861

Unavailable

1

CRANKCASE SET | MODEL Y/K1 P28; Includes Item(s) 2 - 10

11306-02830

Unavailable

2

PIN

04211-13189

$2.19

3

BOLT This part replaces 01547-06403.

01547-0640B

$2.74

4

BOLT This part replaces 01547-06503.

01547-0650B

$2.77

5

BOLT This part replaces 01547-06603.

01547-0660B

$2.87

6

BOLT This part replaces 01547-06753.

01547-0675B

$4.28

7

BOLT, CRANKCASE (6X85) This part replaces 01547-06853.

01547-0685B

$4.35

8

O RING, OIL GALLERY JET | (D:1.2,ID:4.0)

09280-04004

$1.76

9

JET, OIL GALLERY

09493-28010

$18.00

10

JET, OIL GALLERY

09493-32006

$18.33

11

O RING (D:1.9,ID:9.8) | MODEL V This part replaces 09280-10015.

09280-10016

$3.04

12

BOLT (10X195)

09103-10118

$11.91

13

BOLT (10X90)

09103-10061

$6.98

14

BOLT,10X230 This part replaces 09103-10238.

09103-10238-XC0

$21.85

15

SPACER

11621-35B00

Unavailable

16

SPACER (L:60)

11610-02CA0

Unavailable

17

SPACER (L:65)

11610-49300

$20.33

18

NUT | MODEL V This part replaces 08319-31105.

08319-3110A

$2.73

18

NUT | MODEL W/X/Y/K1 This part replaces 08319-31103.

08319-3110A

$2.73
