1993 Suzuki LT-F160 Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 1993 Suzuki LT-F160, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

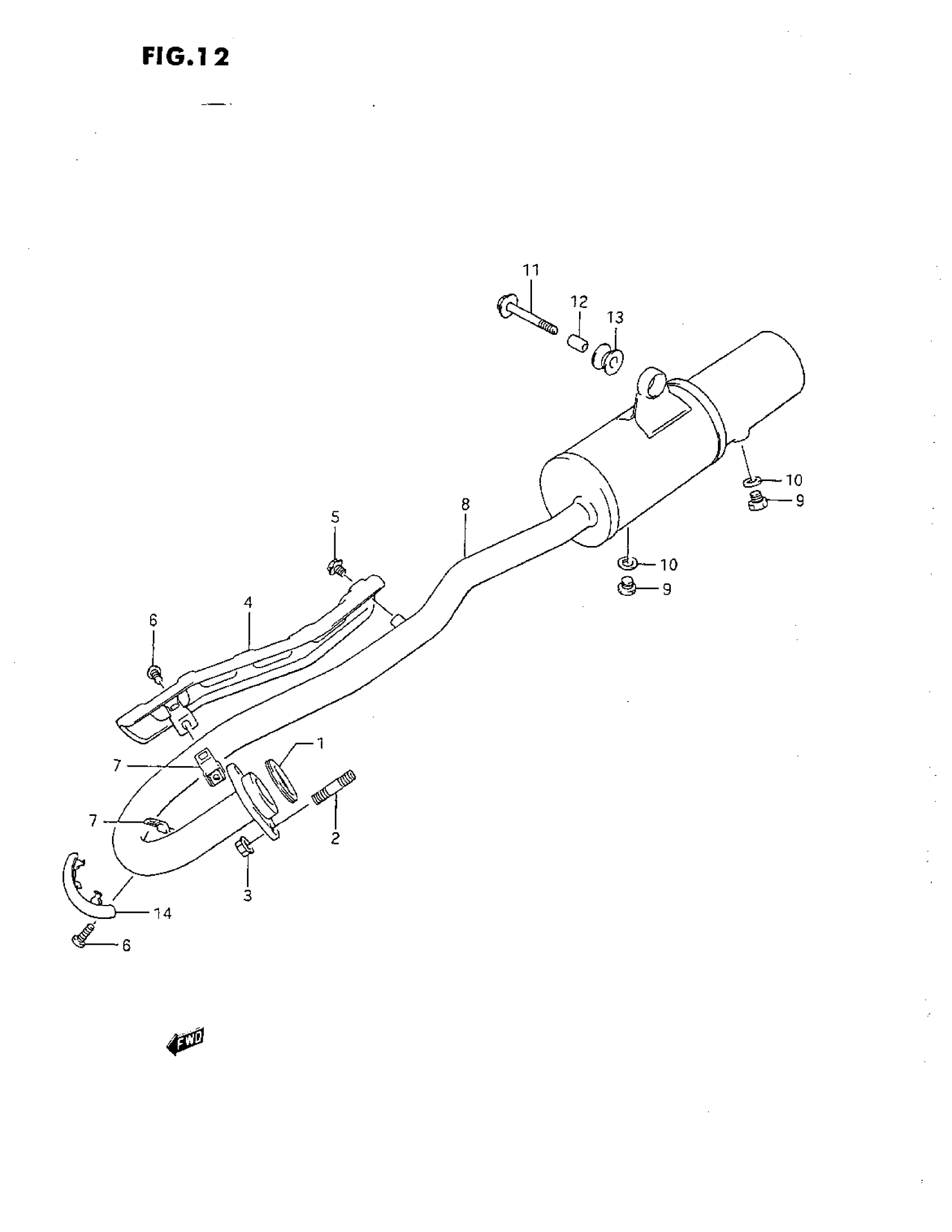

1993 Suzuki LT-F160 Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

.GASKET,EXHAUST This part replaces 14181-02C01.

14181-18C00

1
Out of stock

2

2

$2.07

In stock

3

NUT This part replaces 08361-15085.

08361-1508A

2
Out of stock

4

COVER, EXHAUST PIPE

14180-02C00

1
Out of stock

5

1

$3.17

In stock

6

3

$1.55

In stock

7

CLAMP, EXHAUST PIPE COVER

14190-02C00

3
Out of stock

8

MUFFLER

14310-02C01

1
Out of stock

9

PLUG, DRAIN

09247-12103

2
Out of stock

10

GASKET

09168-12002

2
Out of stock

11

BOLT (8X75)

09118-08133

1
Out of stock

12

SPACER (8.5X12X18.5) This part replaces 09180-08127.

09180-08195

1
Out of stock

13

CUSHION This part replaces 09320-120D5.

09320-12033

1
Out of stock

14

COVER, EXHAUST PIPE FRONT

14170-02C00

1
Out of stock
