1993 Suzuki LT-F160 Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 1993 Suzuki LT-F160, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

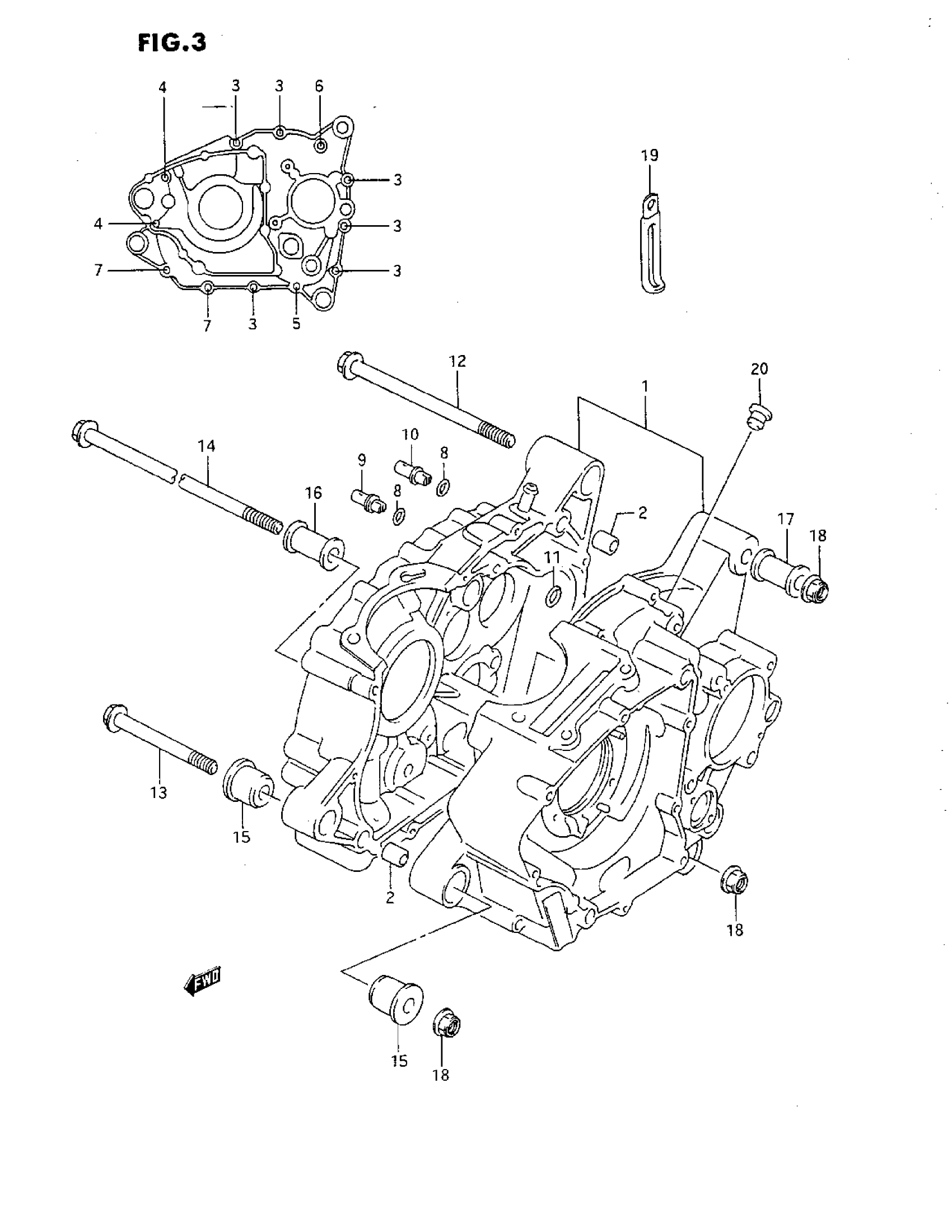

1993 Suzuki LT-F160 Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRAWCASE SET

11301-35861

1
Out of stock

2

PIN This part replaces 09206-13001.

04211-13189

2
Out of stock

3

BOLT | MODEL M/N/P

01547-06407

6
Out of stock

3

BOLT | MODEL R This part replaces 01547-06403.

01547-0640B

6
Out of stock

4

BOLT | MODEL M/N/P

01547-06507

2
Out of stock

4

BOLT | MODEL R This part replaces 01547-06503.

01547-0650B

2
Out of stock

5

BOLT | MODEL M/N/P

01547-06607

1
Out of stock

5

BOLT | MODEL R This part replaces 01547-06603.

01547-0660B

1
Out of stock

6

BOLT,CARB | MODEL M/N/P This part replaces 01547-06757.

09103-06522

1
Out of stock

6

BOLT | MODEL R This part replaces 01547-06753.

01547-0675B

1
Out of stock

7

BOLT | MODEL M/N/P

01547-06857

2
Out of stock

7

BOLT, CRANKCASE (6X85) | MODEL R This part replaces 01547-06853.

01547-0685B

2
Out of stock

8

O-RING, OIL GALLERY JET

09280-04004

2
Out of stock

9

JET, OIL GALLERY

09493-28010

1
Out of stock

10

JET, OIL GALLERY

09493-32006

1
Out of stock

11

O RING (D:1.9,ID:9.8) | MODEL M/N/P This part replaces 09280-10010.

09280-10016

1
Out of stock

11

O-RING, OIL GALLERY | MODEL R

09280-10016

1
Out of stock

12

BOLT (10X195) This part replaces 09103-10072.

09103-10118

1
Out of stock

13

BOLT (10X90)

09103-10061

1
Out of stock

14

BOLT,10X230 This part replaces 09103-10238.

09103-10238-XC0

1
Out of stock

15

SPACER

11621-35B00

2
Out of stock

16

SPACER (L:60)

11610-02CA0

1
Out of stock

17

SPACER (L:65)

11610-49300

1
Out of stock

18

NUT This part replaces 08319-31105.

08319-3110A

3
Out of stock

19

CLAMP This part replaces 09404-06402.

09404-06039

2
Out of stock

20

CAP | -E.NO.124518

09250-09006

1
Out of stock

20

CAP | E.NO.124519-

09250-11003

1
Out of stock
