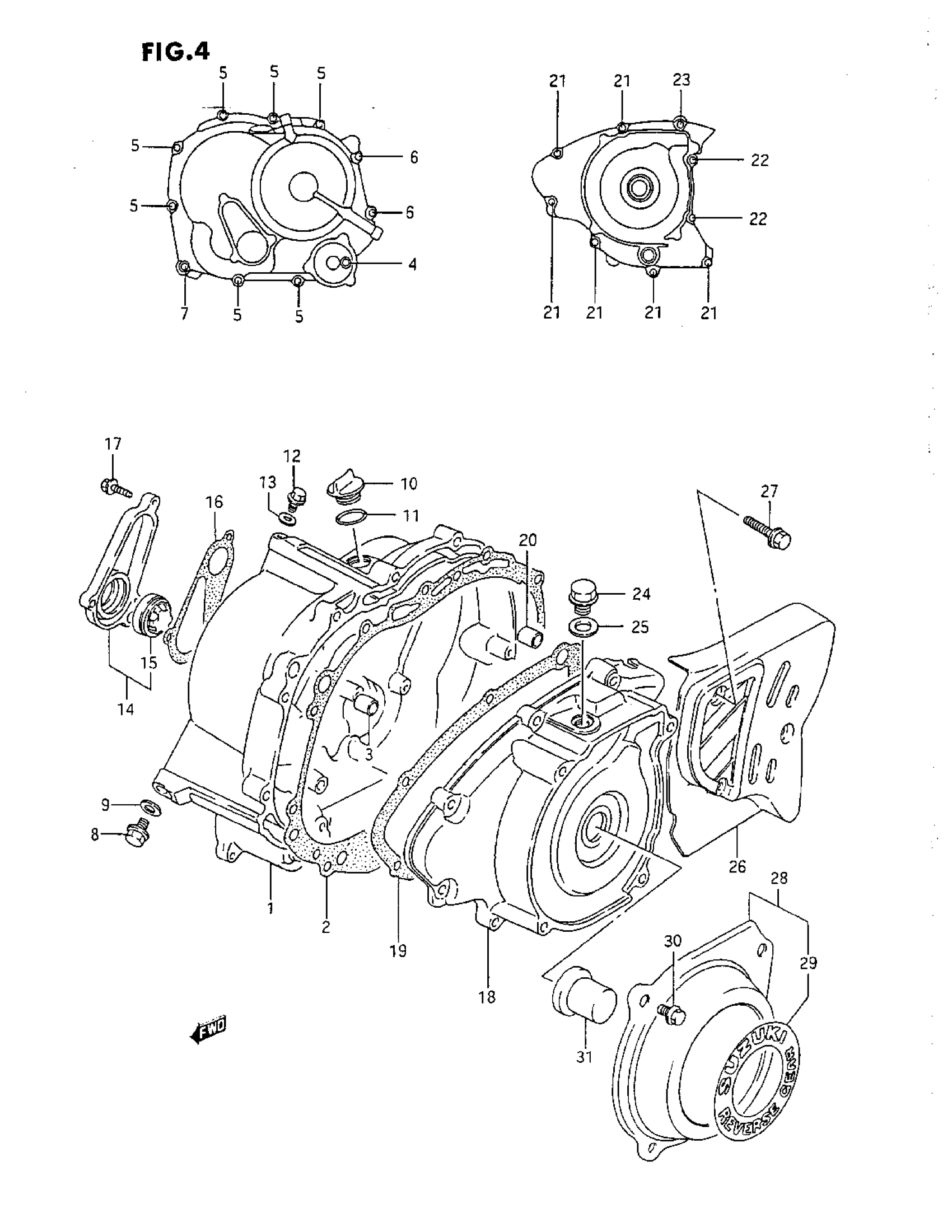

Suzuki LT-F160 (1993) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH

11341-35B00

Unavailable

2

GASKET, CLUTCH COVER (NA)

11482-02C10

$21.48

3

PIN This part replaces 09206-13001.

04211-13189

$2.19

4

BOLT, FINAL GEAR CASE COVER | MODEL M/N/P This part replaces 01547-06254.

01547-0625B

$2.43

4

BOLT, FINAL GEAR CASE COVER | MODEL R This part replaces 01547-06253.

01547-0625B

$2.43

5

BOLT, WATER PUMP | MODEL M/N/P This part replaces 01547-06354.

01547-0635B

$2.73

5

BOLT, WATER PUMP | MODEL R This part replaces 01547-06353.

01547-0635B

$2.73

6

BOLT (6X45) | MODEL M/N/P This part replaces 09103-06013.

09103-06165

$3.30

6

BOLT (6X45) | MODEL R

09103-06165

$3.30

7

BOLT | MODEL M/NIP This part replaces 01547-06555.

01547-0655B

$2.74

7

BOLT | MODEL R This part replaces 01547-06553.

01547-0655B

$2.74

8

BOLT (8X12) | MODEL M/N/P This part replaces 01517-08125.

01550-0812A

$2.31

8

BOLT (8X12) | MODEL R This part replaces 01550-08123.

01550-0812A

$2.31

9

GASKET

09168-08015

$2.77

10

PLUG (20X10) This part replaces 09259-20013.

09259-20019

$10.55

11

O-RING

09280-17003

$1.64

12

BOLT | MODEL M/N/P This part replaces 01517-06105.

01550-0610A

$1.97

12

BOLT | MODEL R This part replaces 01550-06103.

01550-0610A

$1.97

13

GASKET

09168-06023

$2.01

14

CAP, CLUTCH RELEASE ADJUST

11410-18A10

Unavailable

15

LENS, OIL LEVEL

11971-33210

$16.66

16

GASKET,CL RLSE This part replaces 11495-02C10.

11495-02C11

$7.67

17

BOLT, FINAL GEAR CASE COVER | MODEL M/N/P This part replaces 01547-06254.

01547-0625B

$2.43

17

BOLT, FINAL GEAR CASE COVER | MODEL R This part replaces 01547-06253.

01547-0625B

$2.43

18

COVER, MAGNETO

11351-35B01

Unavailable

19

GASKET, MAGNETO COVER (NA)

11483-02C10

$10.48

20

PIN This part replaces 09206-13001.

04211-13189

$2.19

21

BOLT, FINAL GEAR CASE COVER | MODEL M/N/P This part replaces 01547-06254.

01547-0625B

$2.43

21

BOLT, FINAL GEAR CASE COVER | MODEL R This part replaces 01547-06253.

01547-0625B

$2.43

22

BOLT, WATER PUMP | MODEL M/N/P This part replaces 01547-06354.

01547-0635B

$2.73

22

BOLT, WATER PUMP | MODEL R This part replaces 01547-06353.

01547-0635B

$2.73

23

BOLT | MODEL M/N/P This part replaces 01547-06454.

01547-0645B

$2.73

23

BOLT | MODEL R This part replaces 01547-06453.

01547-0645B

$2.73

24

PLUG, T.D.C

09247-14015

$4.83

25

GASKET

09168-14004

$1.69

26

COVER, ENGINE SPROCKET

11360-02C00

Unavailable

27

BOLT | MODEL M/N/P This part replaces 01547-06304.

01547-06307

$2.06

27

BOLT, FINAL GEAR CASE | MODEL R This part replaces 01547-06303.

01547-0630B

$2.73

28

COVER, RECOIL

18110-02C00

Unavailable

29

EMBLEM This part replaces 68398-244A0-97V.

68398-24410

$18.33

30

BOLT, EXHAUST DRAIN | MODEL M/N/P This part replaces 01547-06125.

01547-06127

$1.67

30

BOLT | MODEL R This part replaces 01547-06123.

01547-0612B

$1.22

31

PLUG

12358-02C00

$20.33
