1993 Suzuki LT-F160 Headlamp Diagram

← All diagrams

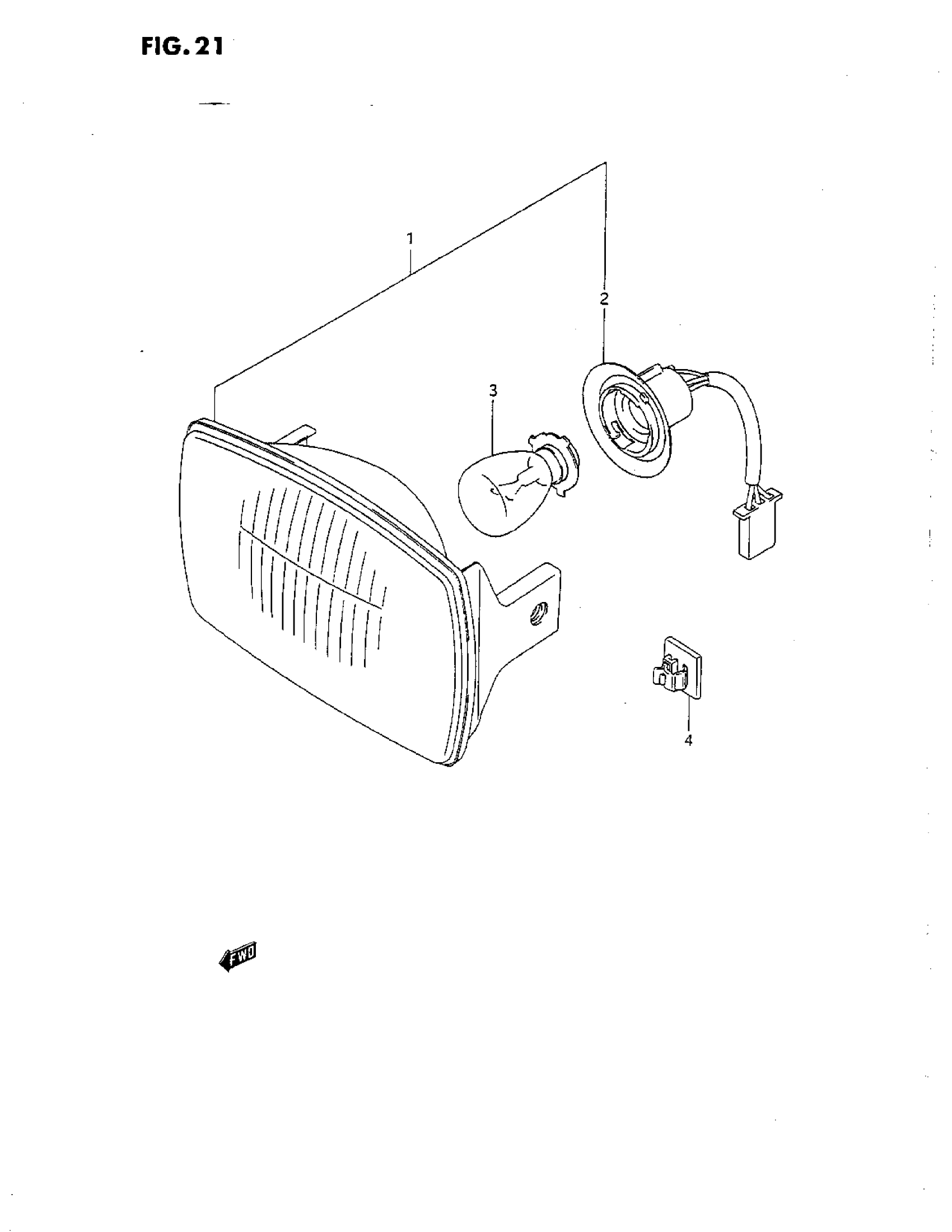

Find the part on the Headlamp diagram for your 1993 Suzuki LT-F160, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Suzuki LT-F160 Headlamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLAMP ASSY

35100-02C00

1
Out of stock

2

SOCKET | MODEL M/N/P This part replaces 35171-02C00.

35171-36X50

1
Out of stock

2

SOCKET | MODEL R

35171-36X50

1
Out of stock

3

BULB, 12V 45/45W

09471-12080

1
Out of stock

4

CLAMP

09403-06310

1
Out of stock
