1993 Suzuki LT-F160 Battery Diagram

← All diagrams

Find the part on the Battery diagram for your 1993 Suzuki LT-F160, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

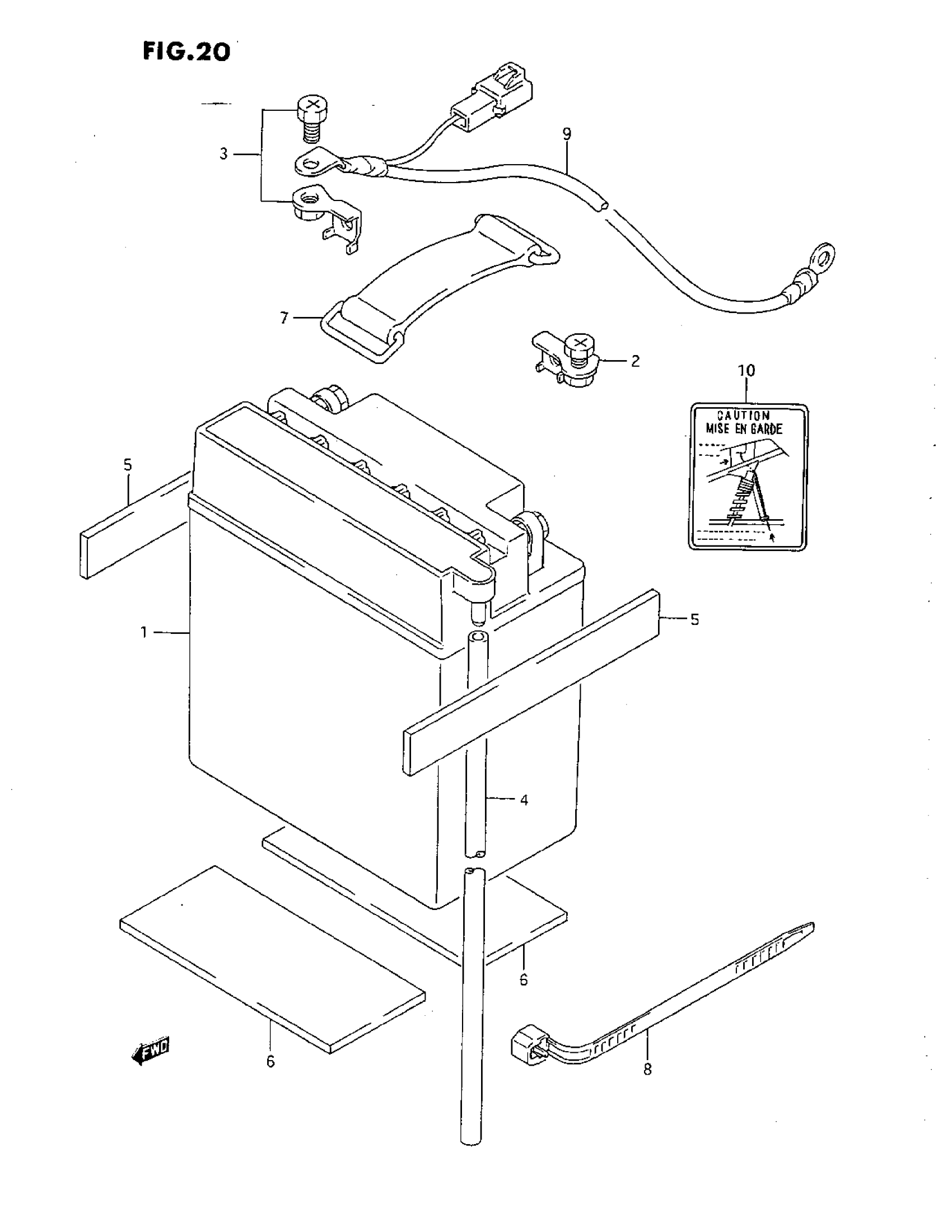

1993 Suzuki LT-F160 Battery Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BATTERY ASSY (12V,9AH) This part replaces 33610-02C60.

33610-02C10

1
Out of stock

2

TERMINAL, BATTERY

33621-02C00

1
Out of stock

3

TERMINAL, BATTERY

33622-02C00

1
Out of stock

4

HOSE,BATTERY EX | L:600->500 This part replaces 33680-31003.

33680-16A11

1
Out of stock

4

HOSE,BATTERY EX | L:780->500 MODEL R This part replaces 33680-16A10.

33680-16A11

1
Out of stock

5

PROTECTOR | CUT AS REQUIRED PROFILE(20X130)

33651-37000

2
Out of stock

6

PROTECTOR | CUT AS REQUIRED PROFILE(50X115)

33651-37000

2
Out of stock

7

BAND This part replaces 09462-000E6.

09462-00046

1
Out of stock

8

CLAMP (L:125) This part replaces 09407-144A3.

09407-14403

1
Out of stock

9

LEAD WIRE, BATTERY MINUS

33860-02C00

1
Out of stock

10

PLATE, BATTERY CAUTION

33690-02C00

1
Out of stock
