Description

Price

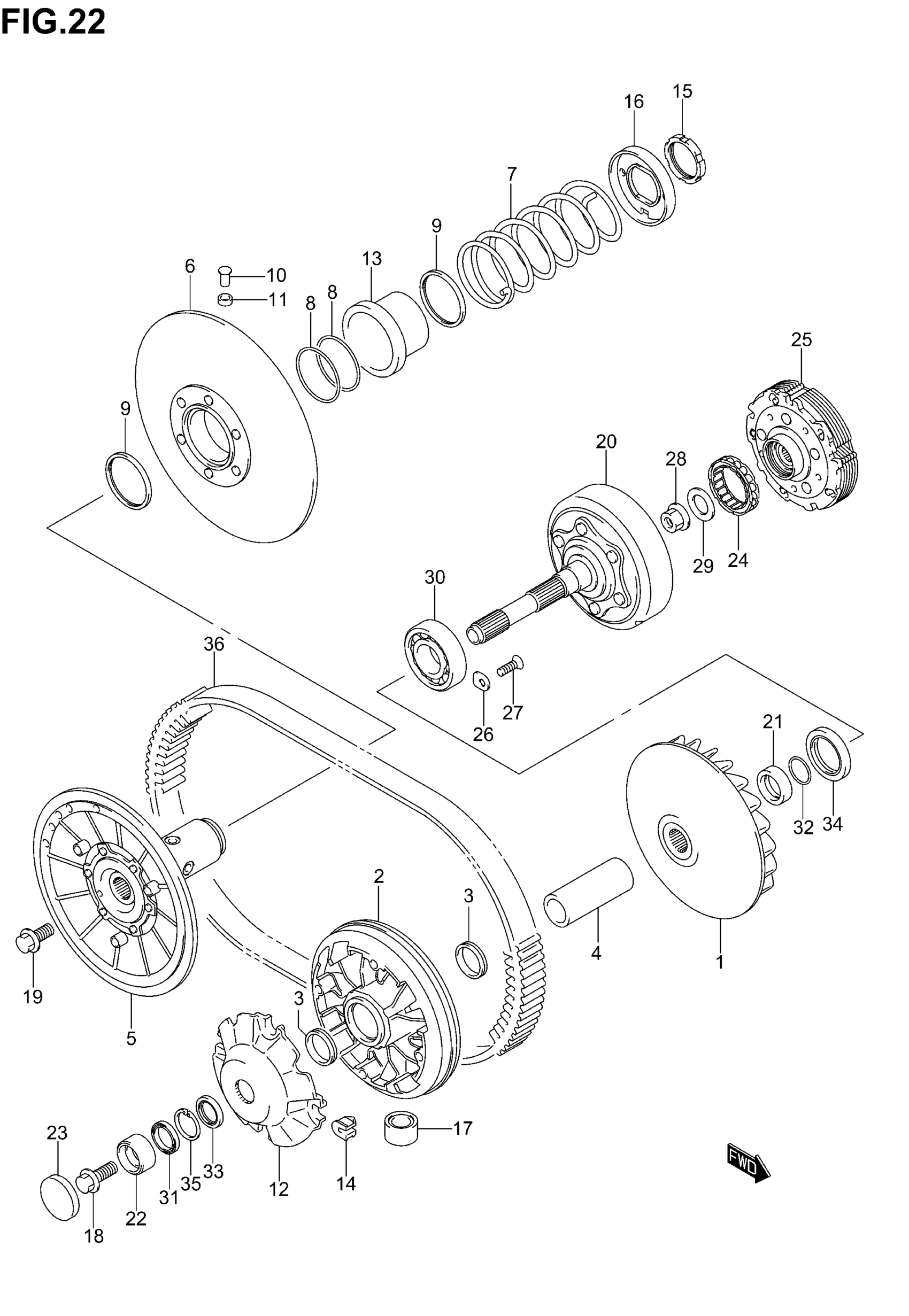

1

FACE,FIXED DRIVE

21110-31G00

$144.68

2

FACE,MOVABLE DRIVE

21120-31G00

$150.29

3

SEAL, MOVABLE DRIVE FACE

21124-31G00

$10.96

4

SPACER,MOVABLE DRIVE

21125-31G00

$75.90

5

FACE,FIXED DRIVEN This part replaces 21210-31G00.

21210-31G01

$468.58

6

FACE, MOVABLE DRIVEN This part replaces 21240-31G00.

21240-31G01

$444.55

7

SPRING, MOVABLE DRIVEN

21243-09F52

$55.32

8

O-RING

21245-15F00

$4.73

9

SEAL, MOVABLE DRIVEN

21247-31G00

$11.43

10

PIN,MOVABLE DRIVEN

21248-15F01

$4.48

11

SPACER,MOVABLE DRIVEN PIN

21249-15F00

$5.06

12

PLATE,MOVABLE DRIVE

21431-31G00

$41.60

13

SHEET,MOVABLE DRIVEN

21471-09F60

$22.42

14

DAMPER,MOVABLE DRIVE PLATE

21481-14F00

$6.61

15

NUT, DRIVEN PULLEY SPRING

21518-09F50

$35.50

16

HOLDER, MOVABLE DRIVEN

21519-09F52

$24.63

17

ROLLER, MOVABLE DRIVEN

21650-31G00

$15.85

18

BOLT, DRIVE FACE (12X30)

09103-12028

$6.14

19

BOLT, DRIVEN FACE (12X25)

09103-12049

$5.35

20

HOUSING, CLUTCH

21100-31G00

$363.38

21

SPACER, PRIMARY SHAFT

21102-31G00

$34.45

22

SPACER, CLUTCH HOUSING

21106-31G00

$38.16

23

CAP, V-BELT BEARING

21107-31G00

$8.44

24

CLUTCH,PRI DRIVE ONE WAY

21273-44D00

$126.97

25

CLUTCH ASSY, SHOE

21500-31G00

$500.18

26

RETAINER

24741-20A00

$2.80

27

SCREW, RETAINER (6X12)

09126-06011

$2.01

28

NUT This part replaces 09159-18020.

09159-18023

$15.42

29

WASHER, SHOE CLUTCH

09164-18004

$3.38

30

BEARING, CLUTCH HOUSING, L | 28X68X18

09262-28014

$74.08

31

BEARING, CLUTCH HOUSING, R

09262-35075

$58.76

32

.O-RING (D:2.4,ID:24.7) | D:2.4,ID:24.7

09280-25004
