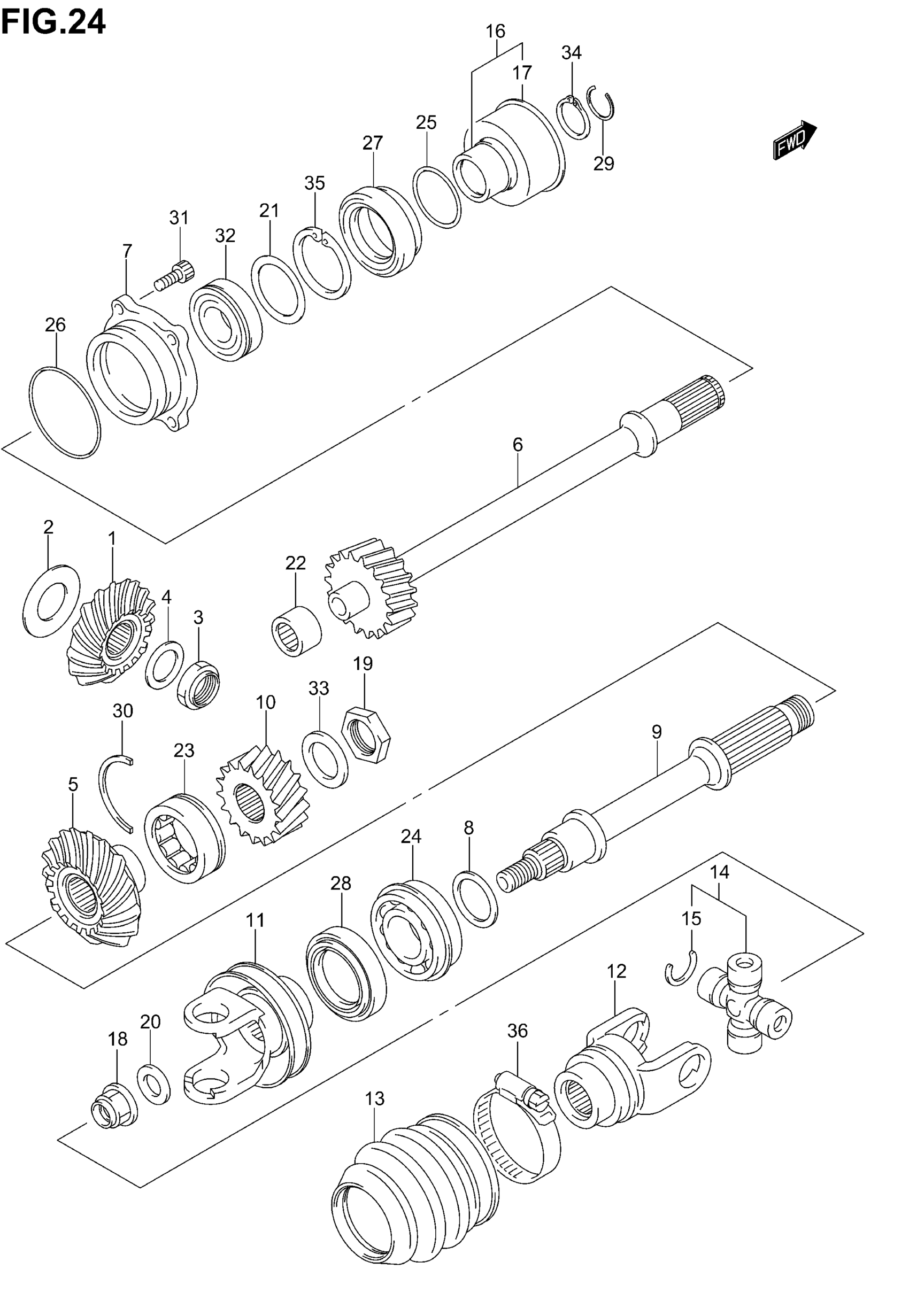

Find the part on the Secondary Drive diagram for your 2005 Suzuki LT-A700X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Suzuki LT-A700X Secondary Drive Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR, SEC DRIVE BEVEL

24911-31G00

1

$264.20

In stock

2

SHIM SET,SEC DRIVE BEVEL | T:0.25/0.30/0.35/0.55/0.58/0.60 /0.63/0.65/0.68/0.70/0.73 /0.75/0.78/0.80/0.83/0.85 /0.88/0.90/0.93/0.95/0.98 /1.00/1.03/1.05/1.08/1.10 /1.13/1.15/1.18/1.20/1.23 /1.25/1.28/1.30

24935-03811

1
Out of stock

3

NUT, SEC DRIVE OUTPUT

09140-20012

1
Out of stock

4

WASHER, SEC DRIVE BEVEL | 20X32X1.0

09181-20223

1
Out of stock

7

1

$51.22

In stock

8

SHIM SET,SEC DRIVEN BEVEL | T:0.55/0.58/0.60/0.63/0.65/0.68 /0.70/0.73/0.75/0.78/0.80 /0.83/0.85/0.88/0.90/0.93 /0.95/0.98/1.00/1.03/1.05 /1.08/1.10/1.13/1.15/1.18 /1.20/1.23/1.25/1.28/1.30 /1.33/1.35/1.38/1.40

24945-03811

1
Out of stock

9

SHAFT, SEC OUTPUT, RR

24971-31G00

1

$315.90

In stock

11

YOKE, RR DRIVE OUT

27130-31G00

1
Out of stock

12

YOKE, PROP SHAFT

27141-31G00

1
Out of stock

15

4

$1.81

In stock

16

1

$70.33

In stock

17

PLATE, OUTPUT OIL SEAL

27592-31G20

1
Out of stock

18

NUT, RR DRIVE OUTPUT YOKE

09159-16003

1
Out of stock

19

NUT, SEC DRIVEN OUTPUT

09159-22005

1
Out of stock

20

WASHER, RR DRIVE OUTPUT | 16X30X3.0

09160-16026

1
Out of stock

21

1

$7.28

In stock

22

1

$45.12

In stock

23

BEARING, SEC DRIVEN GEAR | 30X50X17

09263-30050

1
Out of stock

24

BEARING (25X52X20.6) | 25X52X20.6 This part replaces 09267-25006.

09267-25014

1
Out of stock

25

1

$2.19

In stock

26

1

$2.55

In stock

27

SEAL, FRONT OUTPUT SHAFT | 34X52X9

09283-34008

1
Out of stock

28

SEAL, REAR OUTPUT SHAFT | 34X52X9

09283-34008

1
Out of stock

29

1

$1.59

In stock

30

RING, SEC DRIVEN GEAR

09390-50002

1
Out of stock

32

BEARING, FRONT OUTPUT, FR

09262-25003

1
Out of stock

33

WASHER, OUTPUT SHAFT GE

08211-22365

1
Out of stock

34

1

$1.09

In stock

35

1

$4.83

In stock

36

CLAMP

09402-00512

1

$16.92

In stock
