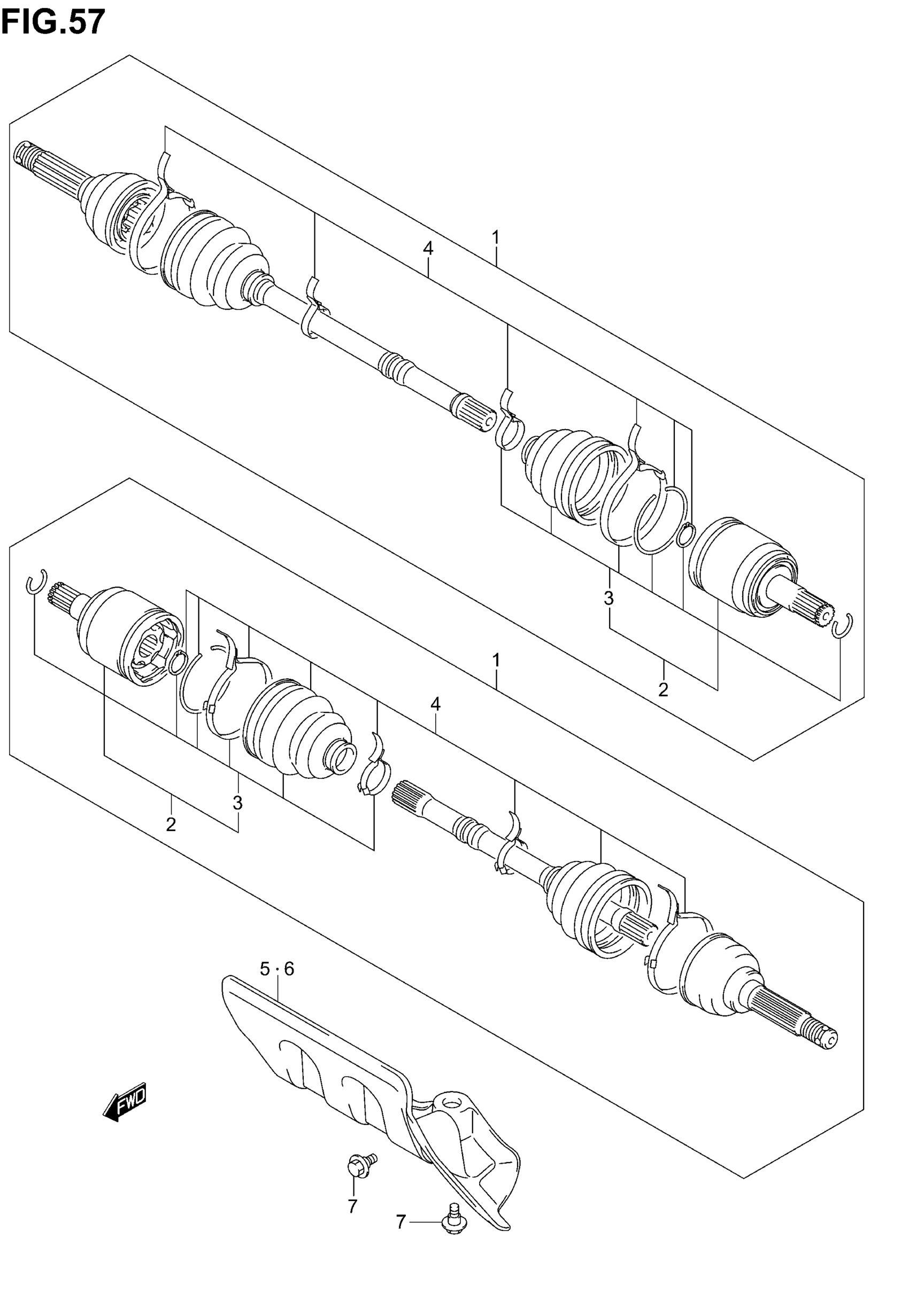

Find the part on the Front Drive Shaft diagram for your 2005 Suzuki LT-A700X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Suzuki LT-A700X Front Drive Shaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT ASSY,FRON | Includes Item(s) 2 - 4 This part replaces 54901-31G00.

54901-31G02

2
Out of stock

2

JOINT SET This part replaces 54933-31G00.

54933-31G02

2
Out of stock

3

BOOT SET,INNER This part replaces 54931-31G00.

54931-31G02

2
Out of stock

4

BOOT SET,OUTER This part replaces 54930-31G00.

54930-31G02

2
Out of stock

5

PROTECTOR,FR DRIVE SHAFT,R This part replaces 54903-31G00.

54903-31G01

1
Out of stock

6

PROTECTOR,FR DRIVE SHAFT,L This part replaces 54904-31G00.

54904-31G01

1
Out of stock

7

BOLT (6X12) This part replaces 09111-06063.

09111-06085

6
Out of stock
