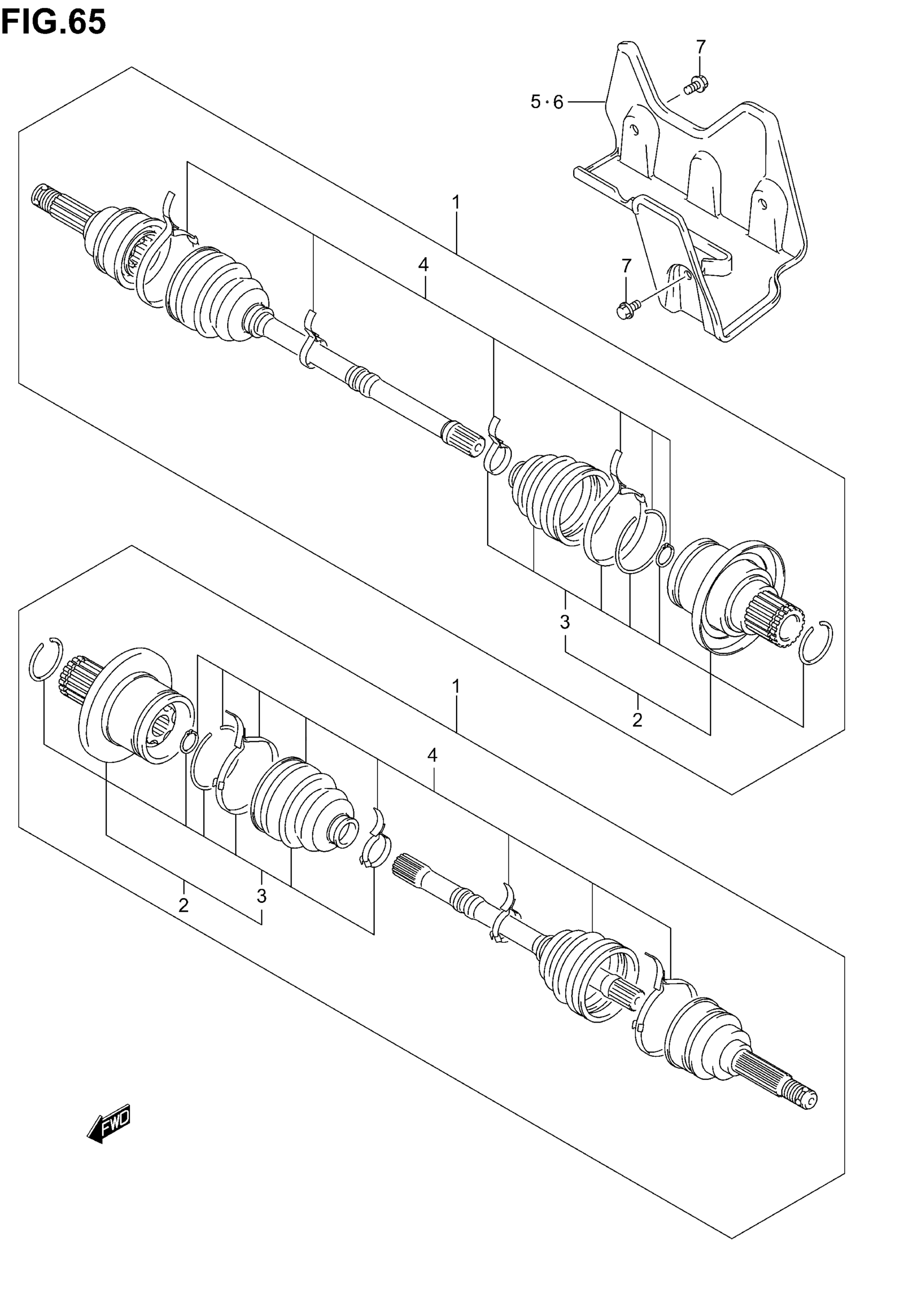

Suzuki LT-A700X (2005) REAR DRIVE SHAFT Diagram

#

Description

Price

1

SHAFT ASSY,REAR | Includes Item(s) 2 - 4 This part replaces 64901-31G00.

64901-31G03

Unavailable

2

JOINT SET This part replaces 64933-31G00.

64933-31G03

Unavailable

3

BOOT SET,INNER This part replaces 64931-31G00.

64931-31G03

$126.17

4

BOOT SET,OUTER This part replaces 64930-31G00.

64930-31G03

$121.55

5

PROTECTOR,RR DRIVE SHAFT,R This part replaces 64903-31G00.

64903-31G11

$26.12

6

PROTECTOR,RR DRIVE SHAFT,L This part replaces 64904-31G00.

64904-31G11

$25.96

7

BOLT (6X12) This part replaces 09111-06063.

09111-06085

$4.28
