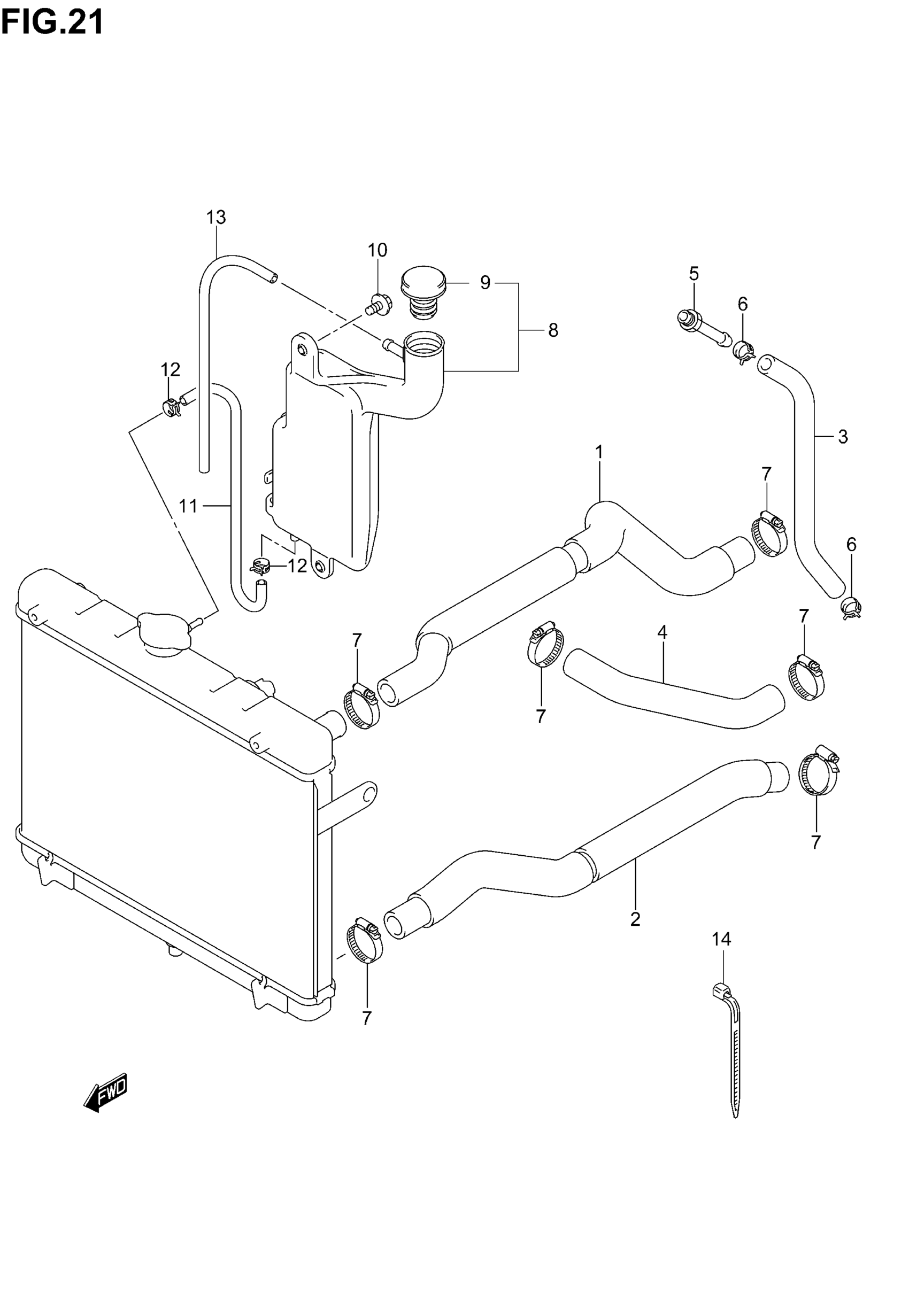

Suzuki LT-A700X (2005) RADIATOR HOSE Diagram

#

Description
Price

1

HOSE, RADIATOR INLET

17851-31G00

$52.50

2

HOSE, RADIATOR OUTLET

17852-31G00

$52.50

3

HOSE, WATER BYPASS

17854-24F00

$25.87

4

HOSE,WATER PUMP OUTLET

17854-31G00

$22.32

5

UNION, BYPASS

09362-09011

$7.57

6

CLIP This part replaces 09401-12409.

09401-12414

$2.98

7

CLAMP

09402-32511

$9.95

8

TANK,RESERVOIR | Includes Item(s) 9 This part replaces 17910-31G00.

17911-34K00

$28.78

9

.CAP,RESERVOIR TANK

17931-02FA0

$5.09

10

BOLT, 6X16

09116-06168

$2.50

11

HOSE, RSVR TANK INLET This part replaces 17982-18G00.

17900-44810

$12.05

12

CLIP

09401-08411

$1.77

13

HOSE, OVFL | L:600!360

09352-50901-600

$7.37

14

CLAMP

09407-19401

$3.32
