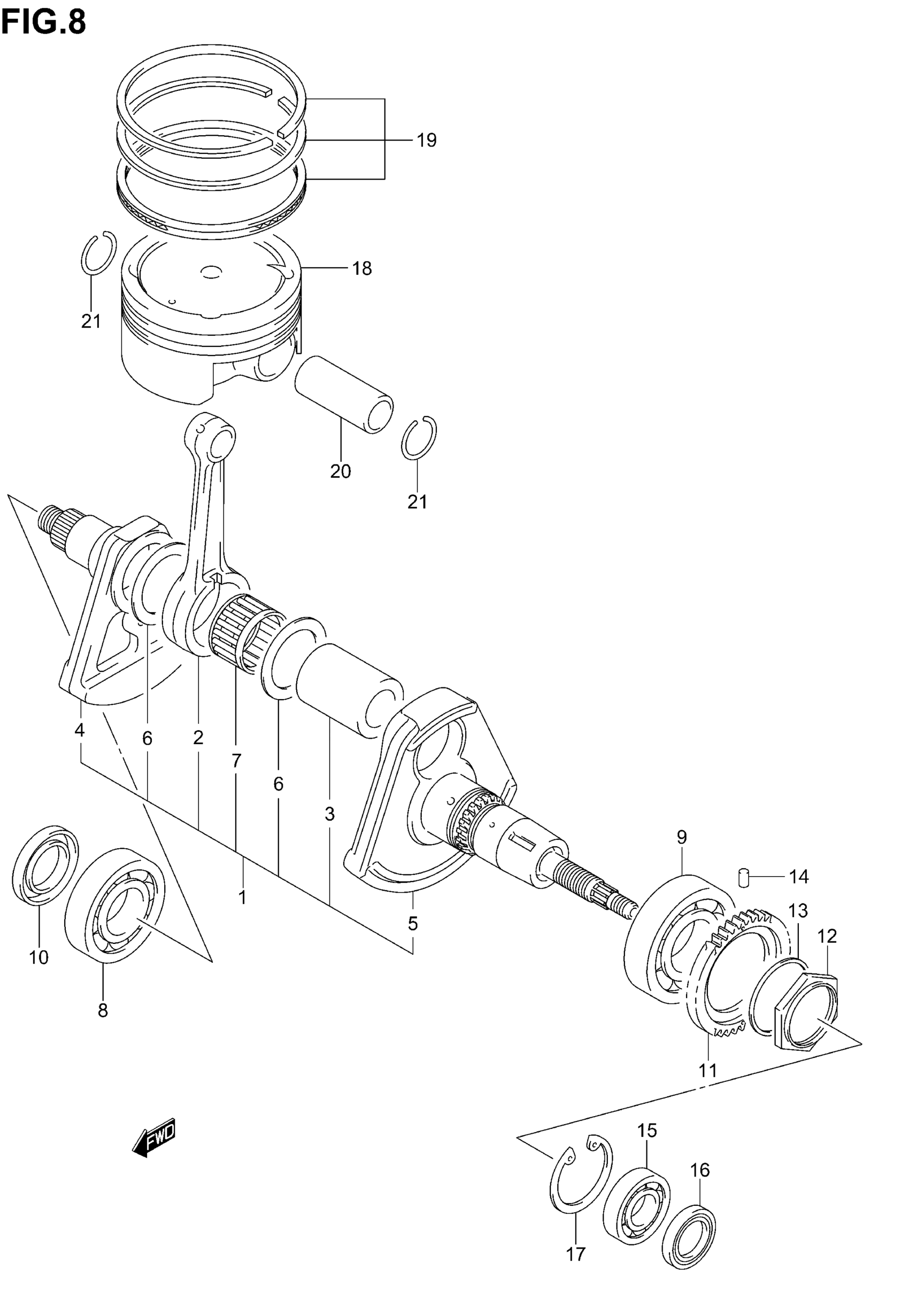

Suzuki LT-A700X (2005) CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT ASSY | Includes Item(s) 2 - 7 This part replaces 12200-31G00.

12200-31G12

$1,170.18

2

.CONNROD This part replaces 12161-31G00.

12161-31G01

$180.58

3

PIN, CRANK

12210-31D00

$128.95

4

CRANKSHAFT, R This part replaces 12220-31G00.

12220-31G10

Unavailable

5

CRANKSHAFT, L This part replaces 12261-31G00.

12261-31G10

Unavailable

6

WASHER

09160-41002

$14.33

7

.BEARING This part replaces 09263-41006.

09263-41009

$109.70

8

BEARING This part replaces 12223-31G00.

12223-31G02

$201.60

9

BEARING, L

09262-45007

$113.63

10

SEAL, OIL

09282-34001

$41.05

11

GEAR, CRANK BALANCER DRIVE This part replaces 12661-31G00.

12661-31G01

$170.68

12

NUT, CRANK BALANCER DRIVE GEAR

12664-31G00

$27.13

13

WASHER

09160-45006

$7.03

14

PIN

09261-05005

$1.43

15

BEARING

09262-25006

$23.05

16

SEAL, OIL

09283-25095

$24.11

17

CIRCLIP

08331-41479

$2.32

18

PISTON

12111-31G00-0F0

$263.93

19

RING SET, PISTON

12140-31G00

$89.25

20

PIN, PISTON

12151-31G00

$21.77

21

CIRCLIP

09381-23003

$1.52
