Description

Price

1

PUMP ASSY, WATER

17400-11H21

$159.45

2

.IMPELLER

17491-11H00

$63.72

3

.SEAL,MECHANICAL

17470-02F11

$26.75

4

.SEAL,OIL (10X21X5)

17461-48G00

$12.45

5

.O RING

17418-11H01

$14.75

6

.WASHER

17432-07G00

$2.61

7

.PIN

17482-03G00

$2.97

8

.BOLT,DRAIN

17415-20920

$6.75

9

GASKET (8.2X14X1) This part replaces 09168-08008.

09168-08016

$1.64

10

.O-RING

17435-33400

$13.99

11

.SCREW

02112-0616A

$1.43

12

.CAP

17432-11H00

Unavailable

13

.E-RING

08332-1108A

$1.77

14

.O-RING (D:2.4,ID:21.8)

09280-22001

$1.48

15

BOLT (6X30)

09103-06297

$3.58

16

BOLT

01547-0645A

$2.43

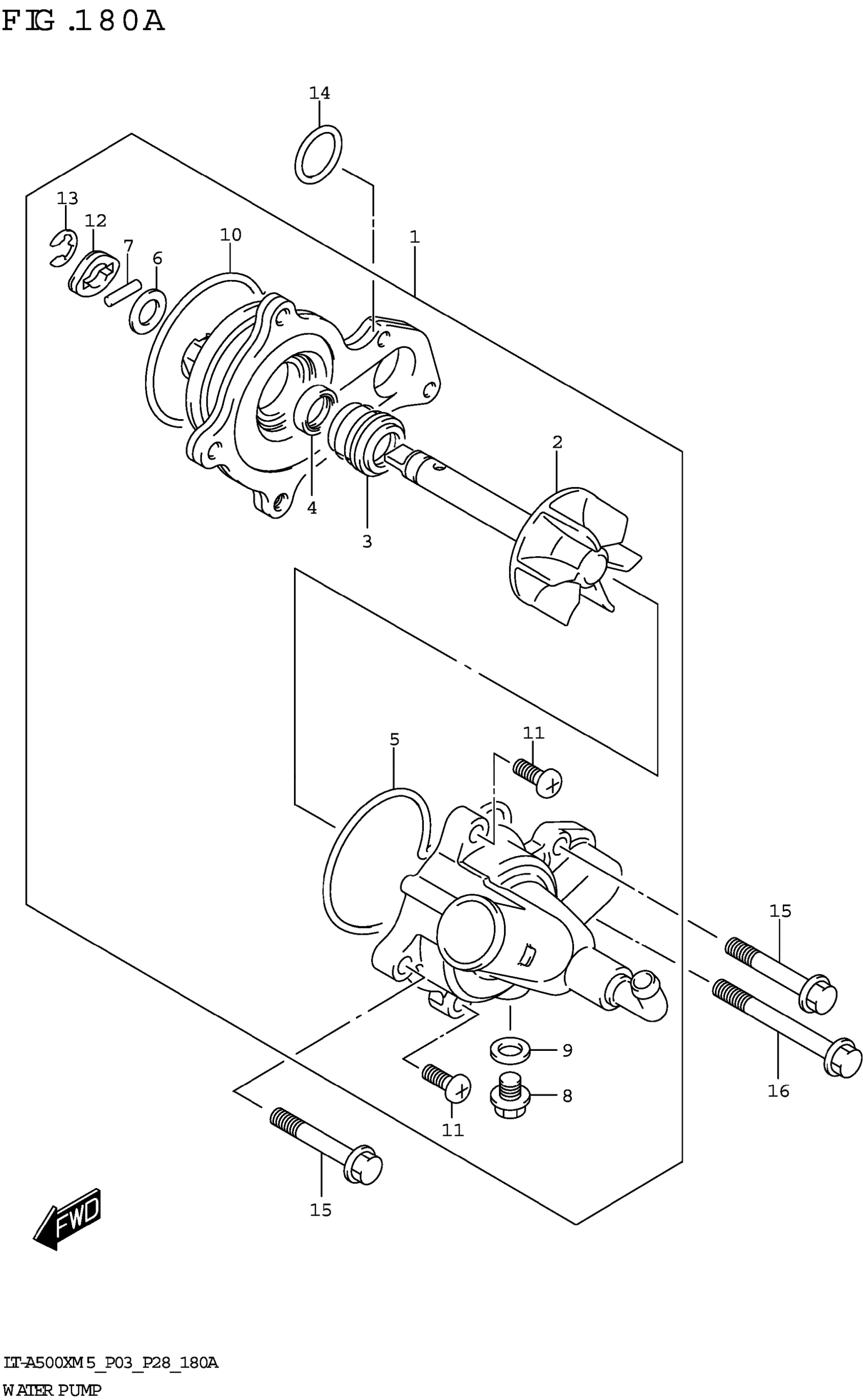

Suzuki LT-A500XM2 (2025) WATER PUMP Diagram
