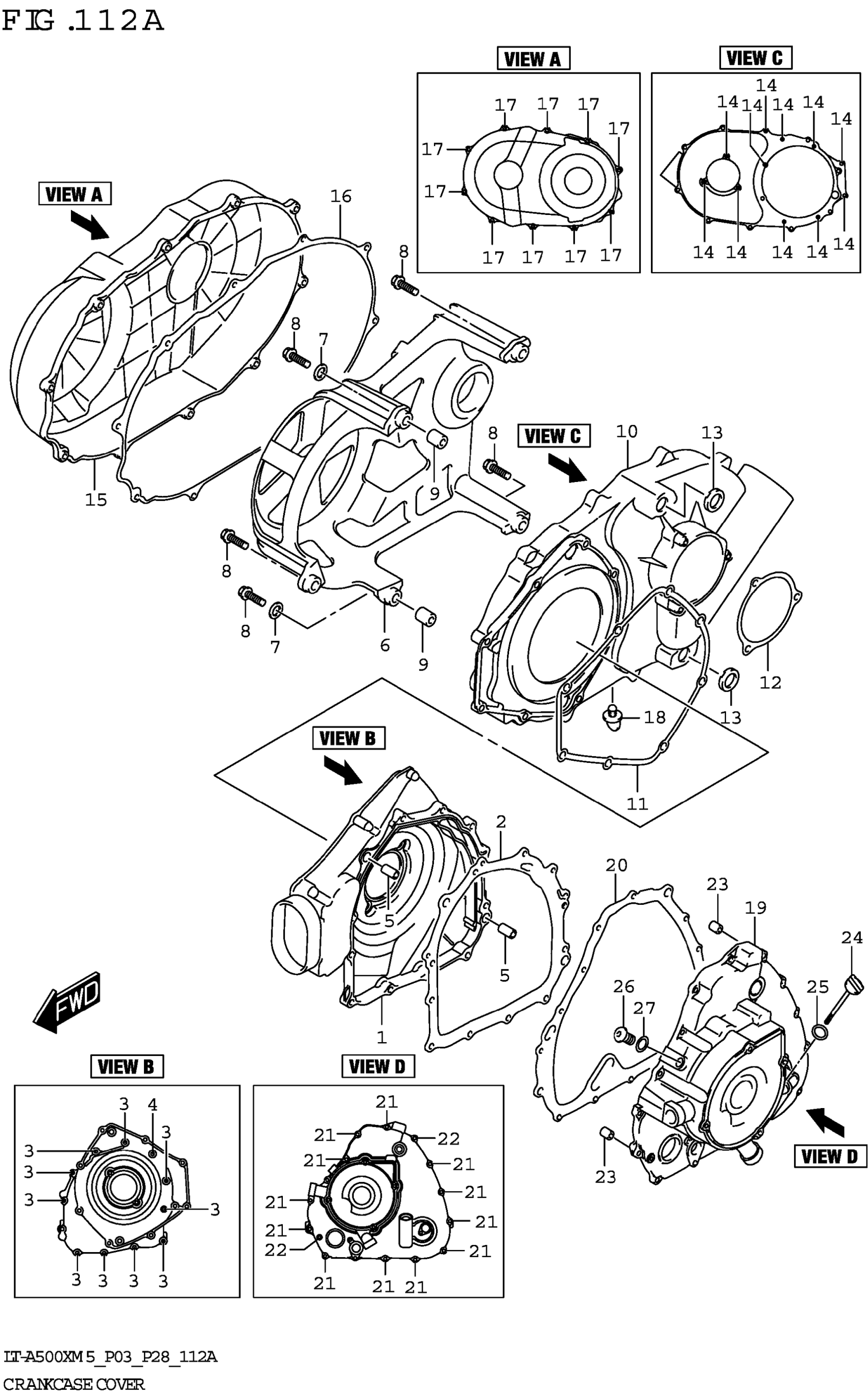

Suzuki LT-A500XM2 (2025) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH

11341-11H00

$258.63

2

.GASKET, CLUTCH COVER

11482-11H00

$12.84

3

BOLT

01547-0625A

$2.01

4

BOLT

01547-0635A

$2.31

5

PIN

04211-11169

$1.77

6

HOUSING, V-BELT BEARING

11342-11H00

$334.68

7

GASKET, V-BELT BEARING HOUSIN

11488-11H01

$2.80

8

BOLT

01547-0635A

$2.31

9

PIN (8.5X18X2.3)

04211-09149

$1.64

10

COVER, V BELT INNER

11370-11H00

$213.10

11

GASKET, V-BELT COVER INNER FR

11484-11H01

$23.17

12

GASKET, V-BELT COVER INNER RR

11485-31G00

$7.19

13

GASKET, V-BELT COVER INNER

11487-11H01

$4.33

14

BOLT

01547-0625A

$2.01

15

COVER, V BELT OUTER

11380-11H00

$194.95

16

GASKET, V-BELT COVER OUTER

11486-11H01

$16.45

17

BOLT

01547-0625A

$2.01

18

PLUG, WATER DRAIN

11375-31G00

$3.79

19

COVER, MAGNETO

11350-11H10

$291.44

20

.GASKET, MAGNETO COVER (NA)

11483-11H00

$26.42

21

BOLT

01547-0625A

$2.01

22

BOLT

01547-0635A

$2.31

23

PIN

04211-11169

$1.77

24

GAUGE, OIL LEVEL

11971-09F60

$10.92

25

O-RING (D:3.1,ID:16.8)

09280-17003

$1.64

26

PLUG (14X12)

09248-14011

$2.80

27

GASKET,14X18X1.5 (14X18X1.5)

09168-14014

$2.23
