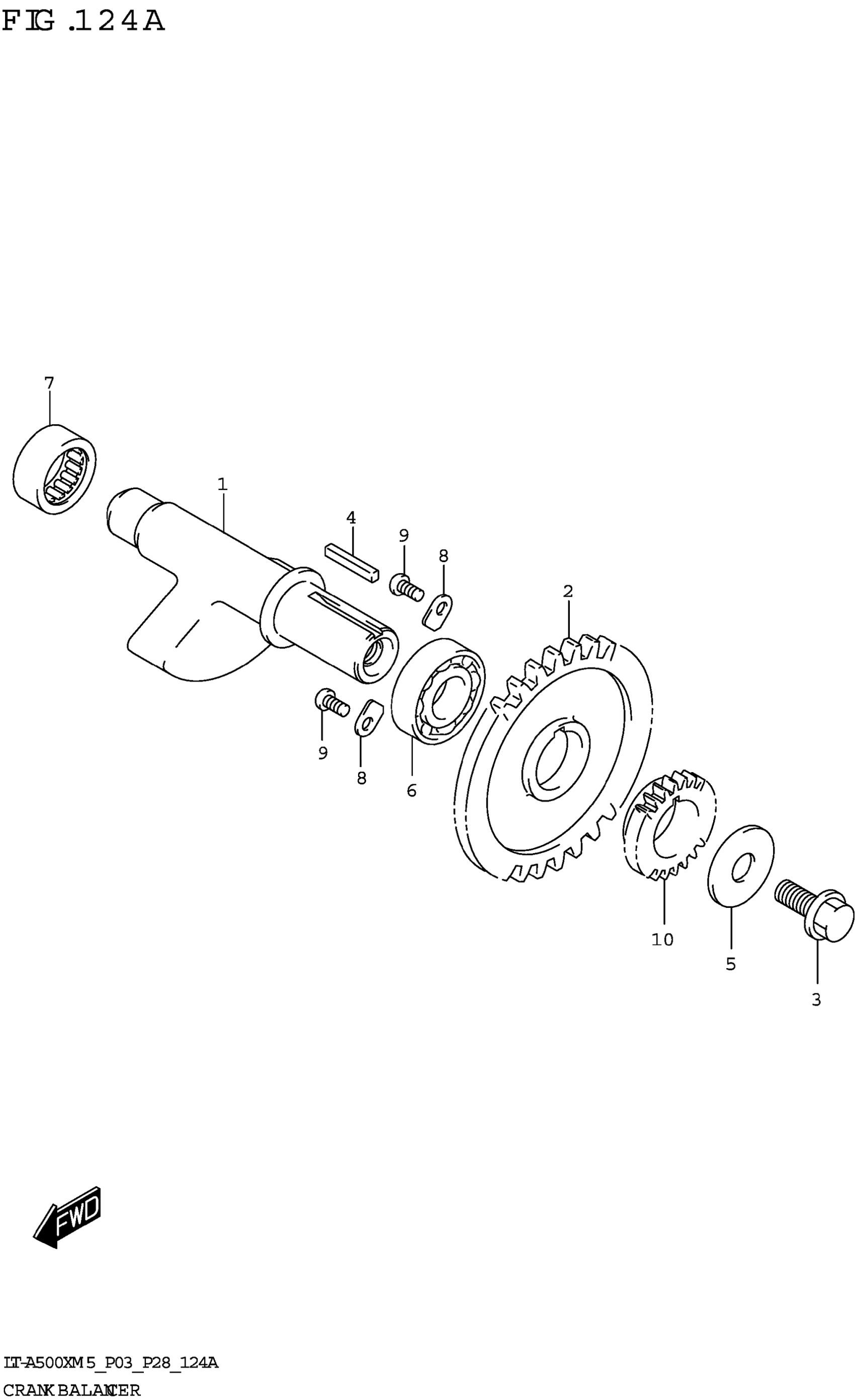

Suzuki LT-A500XM2 (2025) CRANK BALANCER Diagram

#

Description
Price

1

BALANCER, CRANK

12650-11H00

$183.57

2

GEAR, CRANK BALANCER DRIVEN | :43)

12666-11H00

$175.28

3

BOLT (10X20)

09103-10290

$4.47

4

KEY

09421-04012

$3.17

5

WASHER

08211-10305

$4.62

6

BEARING (20X42X12)

09262-20137

$42.32

7

BEARING (20X28X16)

09263-20110

$36.67

8

RETAINER

24741-21A00

$2.80

9

SCREW (6X12)

09125-06122

$2.54

10

GEAR, OIL PUMP DRIVE (NT:21)

16321-11H00

Unavailable
